Palm Beach Springs Water Company Inc.
1551 NW 24
th
Dr. Okeechobee, fl. 34972
561-693-9015
pauladjuster@gmail.com
pH3cleanscents.com

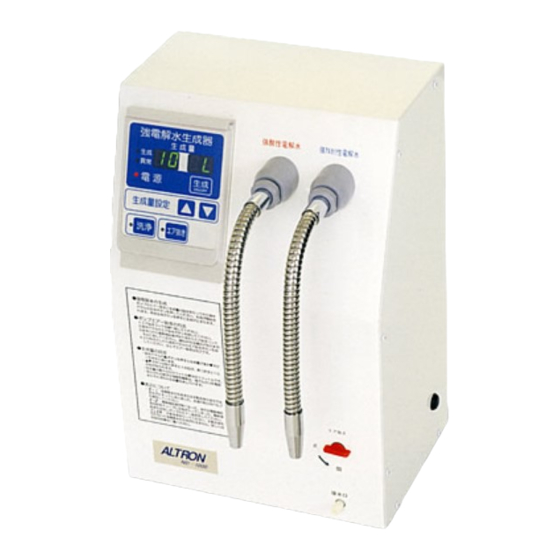

ALTRON MODEL AL-761-N INSTRUCTION MANUAL
We sincerely appreciate your purchase of this electrolysis unit. In order
to ensure total safety in the operation of this unit, kindly read the
instruction manual with all of its warnings and cautions.
Please keep this instruction manual handy for close reference
Advertisement
Table of Contents
Related Manuals for Altron AL-761-N
Summary of Contents for Altron AL-761-N
- Page 1 561-693-9015 pauladjuster@gmail.com pH3cleanscents.com ALTRON MODEL AL-761-N INSTRUCTION MANUAL We sincerely appreciate your purchase of this electrolysis unit. In order to ensure total safety in the operation of this unit, kindly read the instruction manual with all of its warnings and cautions.
-
Page 2: Important Safeguards
TABLE OF CONTENTS Page 2 Table of contents. Pages 3, 4, 5 Warnings, cautions and operational tips. Page 6 Illustrations of front and reverse of unit and the control panel. Page 7 What is included with the main unit. Pages 8, 9 Installation methods. - Page 3 When using electrical products, especially when children are present, basic safety precautions should always be followed, including the following: 2. READ ALL INSTRUCTIONS BEFORE USING: (1) Do not place or store product where it can fall or be pulled into a tub or sink. (2) Do not place in or drop into water or any other liquid.
- Page 4 (spray) products are being used or where oxygen is being administered. (18) Connect this unit to a properly grounded outlet only. (19) Do not place a kink into the AC cord. (20) Do not unplug by pulling the AC cord. (21) Do not wash the unit by water or other liquids.
- Page 5 and alkaline waters. (10) Do not use electrolyzed water for breeding water such as goldfish or tropical fish. (11) Please ask your doctor before handling electrolyzed water such as a person with sensitive skin or for a person with an allergic constitution.
- Page 7 COMPONENTS INCLUDED WITH THE MAIN UNIT: Salt water tank (Electrolysis Large measuring cup 1pc agent tank) 1pc Mixing bar 1pc Measure cup small for salt 1pc Water inlet pipe with cap-nut 1pc Diverter 1pc (Packing large and small for （ with packing for each cap nut ） each 1pc ）...
-
Page 8: Installation Method
INSTALLATION METHOD (1): INSTALLATION METHOD (2): ● Connection of diverter Close the tap water. Detach the cap by wrench for arrow point. Do not lose the gasket material. Assemble diverter to follow draining and adjust the diverter angle and then assemble pipe with pipe gasket. -
Page 9: Pipe Connection
4. Please secure the inlet pipe nut with packing to the diverter by utilizing a wrench. PIPE CONNECTION: ○ Before piping to the unit, take off the cap on the water inlet position and drain position. Assemble water inlet pipe, packing, metal mesh screen and inlet pipe cap by using a wrench correctly to the back side. - Page 10 Connect the drainpipe to drain outlet unit then, connect other end of drainpipe to the drain outlet on the front side. HOW TO CREATE THE ELECTROLYSIS AGENT: 1. Prepare both measuring cups (large, small) with pure salt (Nacl) Fill tap water until measure linE, 2000 in the large measuring cup. ●...
- Page 11 Mixing by mix bar Mixing the pure salt until it is a clean solution. The electrolysis agent has been made. Storing to the Salt water Tank Transfer to salt water tank this salt water. Hereafter salt water call electrolysis agent. The tank can store 2 cup of electrolysis agent.
- Page 12 ● HOW TO REMOVE AIR FROM THE WATERWAY: It is necessary to perform the air drawing step for the following situations: ○ Initial use ○ Error indication E – 2 ○ Air was mixed in to electrolysis agent supply tube ○...
-
Page 13: Operational Steps
unit liquid inlet for any obstructions. Check the strainer to ensure the tubing is under the liquid level. ③ Re-start again the Air drawing operation. ④ Caution: In case the Electrolysis agent liquid tank is located higher than the unit, the tank should be moved to a lower position than the unit. OPERATIONAL STEPS: How to produce strong electrolyzed water Connect the grounding wire and connect the AC cable connect to the wall... - Page 14 the Press again the start switch for process stop or automatically process will be stopped after process remained preset process value on display. ※The processing operation will be stopped after a few seconds from start due to an imperfection to the air drawing process while showing E-2.
- Page 15 liquid with a small amount of tap water to dilute the salt concentration. In order to remove water out from the unit: Connect water pulling hose to the cleaning liquid inlet. Inside water of the unit will draw out from water pulling hose. In this operation, please open both the alkaline hose and acidity hose.
- Page 16 Close Up...
-
Page 17: Trouble Shooting Q & A
TROUBLE SHOOTING Q & A: ● Simple to use Indication sign Main cause(s) Required action Does not power on Loose AC plug connection. Put on the AC plug correctly. Main power switch is off. Turn the power switch on. Fuse blown. Have the cause determined. - Page 18 Error codes can be canceled by pressing the Continuance Process button. The E-6 code cannot be reset in this manner. ● SPECIFICATION: Machine designation Strong electrolysis water processor Model name ALTRON･AL-761N Dimensions 281(W) x 218(D) x 394(H) mm around 10.5Kg Power rating AC 100V 50/60Hz Power Current 3.2 A...
- Page 19 ● MAINTENANCE SERVICE AND WARRANTY CARD: Warranty Card: Card must be completed by the sales agent and submitted to the manufacturer for warranty acknowledgement. Warranty term: One year after purchase. Maintenance service: Please ask your purchasing agent. Paul E. Seaver Palm Beach Springs Water Company Inc.
