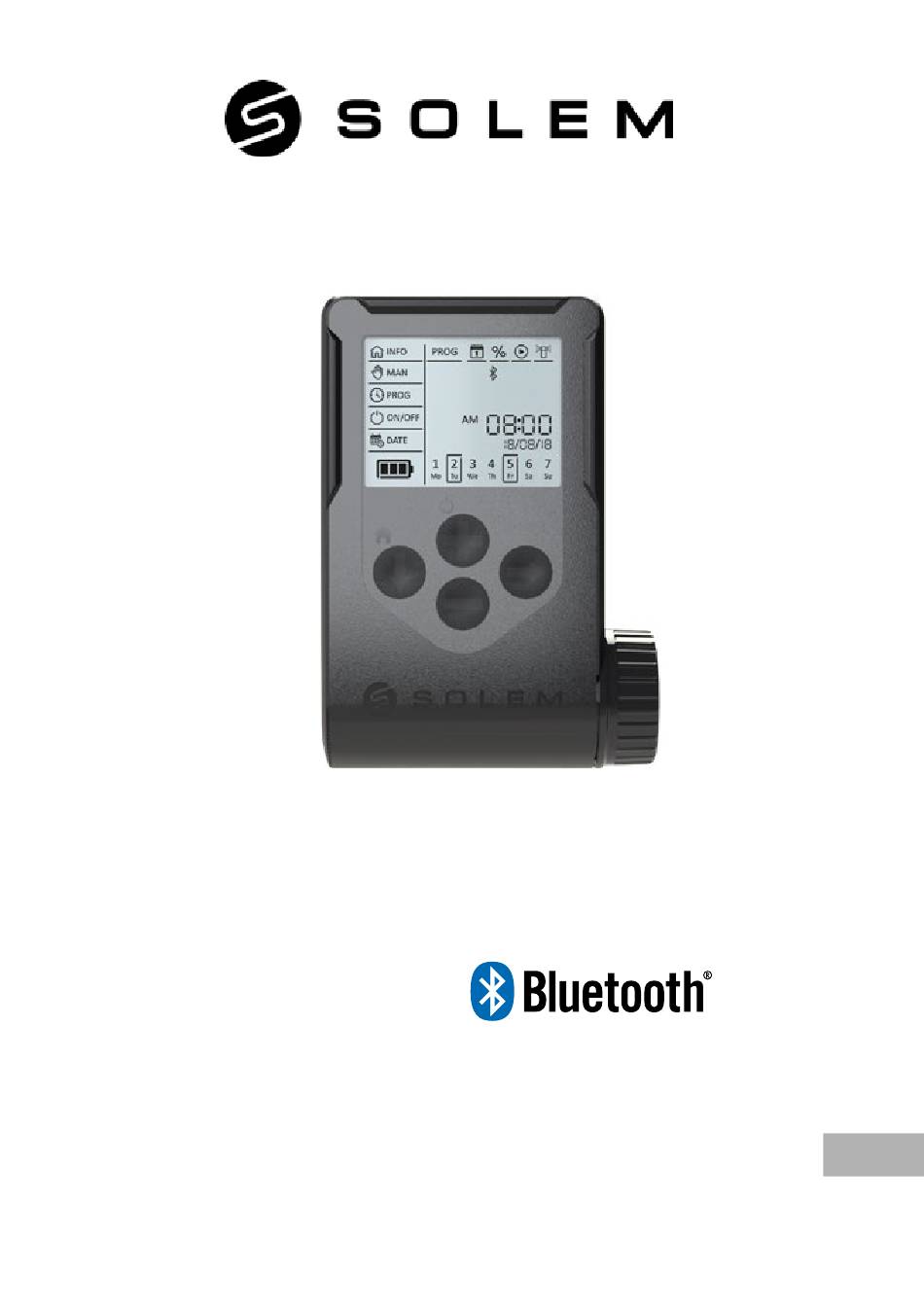

- Page 1 THE CONNECTED IRRIGATION EXPERT WooBee Quick Installation Guide...
- Page 2 OVERVIEW WooBee is an IP68 rated waterproof irrigation controller equipped with a display and operating on one 9V battery or four 1.5V AAA batteries. It is programmable by a Bluetooth connection from a smartphone/tablet or by its keyboard. It can control 1 to 6 9V latching solenoids and has a Rain sensor / Water meter input.
-
Page 3: Security Key
- To identify your WooBee among the controllers available nearby, refer to the «Default name» on the label fixed to the back of the product. - To benefit from all the features of WooBee it is recommended to create an account MySOLEM. PROGRAMMATION Select the previously associated WooBee. - Page 4 Unlocking keypad The manual unlocking of the WooBee keyboard is done from the keys: Locked keyboard Press one of The first digit flashes the keys Press The first digit is incriminated or decremented Press Passage to the second digit Repeat the last 2 operations until the 4th digit.
- Page 5 PROGRAMMATEUR Désignation: TORO TEMPUS DC-LCD Ce plan est la propriété exclusive de SOLEM. Toute utilisation, reproduction et diffusion est formellement interdites sans autorisation. Run or stop manual command: - Allows to manually turn on a station or a program A,B,C…...
- Page 6 12 Hours Remaining watering time Watering starts Find the details of the configuration in the installation guide at http://www.solem.fr or on the MySOLEM application. VALVES WIRING + S - C P 1 2 3 1 2 3 4 5 6 Connect the valves with 9V latching solenoids.
-
Page 7: Sensor Wiring
SENSOR WIRING WooBee has a sensor input + S - to connect a rain sensor + S - C P 1 2 3 or a water meter pre-equipped with a pulse sensor, only configurable with the mobile application MySOLEM. By default, the sensor input is configured for the rain sensor.
