Unior 1561 Manual

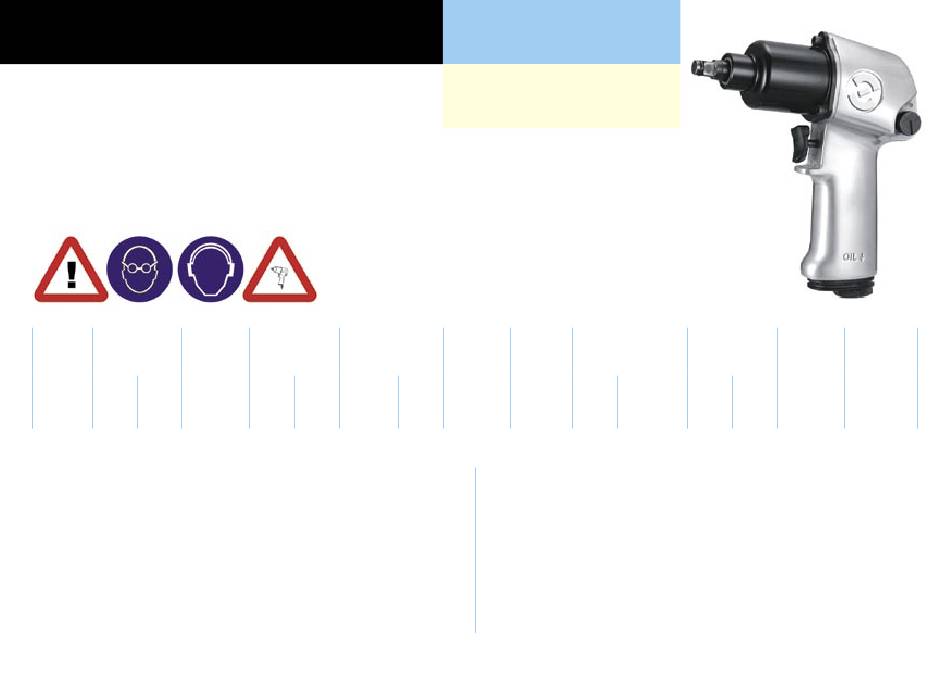

1/2" pneumatic reversible hammer
WARNING :
* always read the instruction before using power tools
* always wear safety googles
* wear hearing protection
* Avoid prologned exposure to vibration
Square S.T.D Free
Drive Bolt Size Speed
inch inch mm R.P.M
1/2 5/8 M16 8000
OPERATING INSTRUCTION
1. Warning
1.1 Air pressure :
The air pressure must be restricted at or less than the maximum pressure of 90
psi (6.2 bar), do not exceed it.
Max. Overall
Torque Length
ft-lb N.M inch mm
400 542 7 21/64 186
Article: 1561
Code: 615322
Pneumatic reversible hammer 1561 apply
to PREN 792 -6.
Vibration level per ISO 8662-7
Noise level according to ISO 3746:1995 (E)
Maximum air pressure: 6.2 BAR (90 PSI)
Air Air Avg.
Inlet Hose AirConsumption
PT I.D cfm
1/4 3/8 4
1.2 Air line :
Use an air hose between the compressor and the tool. The corresponding hose
internal diameter is recommended in the attached table in the data sheet.
Compressed air is cooled and its water content separated as soon as the air
leaves the compressor. However some of the water is condensed in the piping,
and can enter the tool mechanism and cause damage. An air filter and on oiler
should be installed between the compressor and the tool. Use a recommended
compressor in the date sheet or larger for each tool.
Net Sound
Weight Pressure
l/min lbs kgs DB
113 5.58 2.56 85
Vibration
M/S2
1.3
