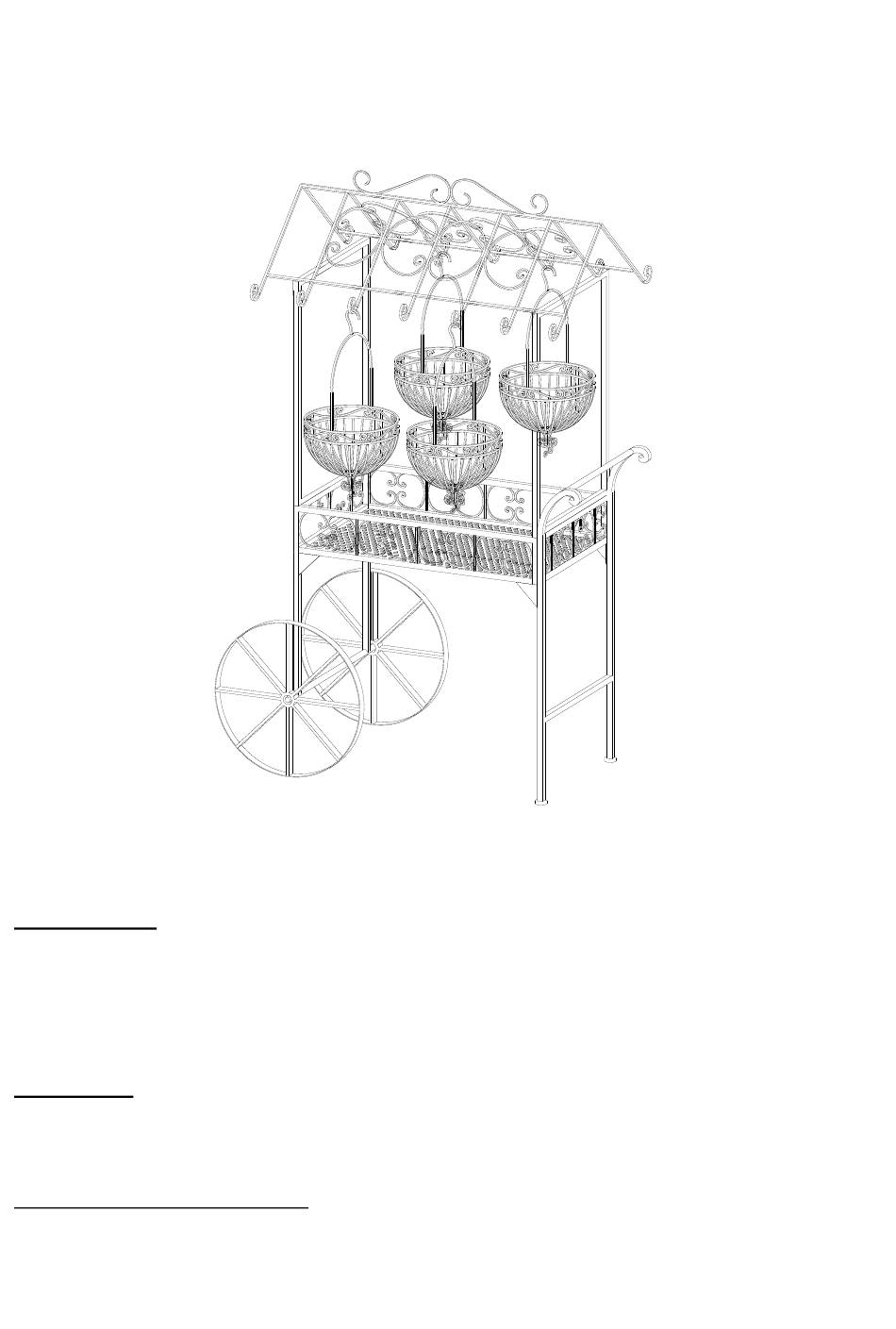

Flower Cart
Item# L-PS158PST-5
Our clear, easy-to-follow, step by step instructions will guide you through the project from start to finish. The final
product will be a quality piece that will assemble easily and give years of enjoyment.
IMPORTANT:
Please read instructions thoroughly before assembly. Familiarize yourself with the inventory of parts and the
accompanying illustrations to assure safe and proper assembly.
Repeated assembly can weaken the locking ability of the washers. Periodically check all bolted connections on
your garden cart to make sure they are tight and secure. Please keep the instructions for future reference.
WARNING:
Read and follow all Warnings & Assembly Instructions before attempting to assemble.
Begin assembly not less than 6 feet from any obstruction such as a fence, garage, house, overhanging branches,
laundry line, or electrical wires.
Some parts may contain sharp edges. Wear protective gloves as necessary.
Keep children away from assembly area.
Assemble on level ground.
Do not over tighten any of the bolts or nuts, but do tighten each bolt and nut until firm.
Check all nuts and bolts for tightness before and during usage.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the L-PS158PST-5 and is the answer not in the manual?

Questions and answers

Summary of Contents for Sunjoy L-PS158PST-5

  • Page 1 Assembly Instructions Flower Cart Item# L-PS158PST-5 Our clear, easy-to-follow, step by step instructions will guide you through the project from start to finish. The final product will be a quality piece that will assemble easily and give years of enjoyment.
  • Page 2 Parts List Right top panel Left top panel Middle support frame Wheel support frame Handle frame Shelf Basket Wheel Corner piece 1 Corner piece 2 Hardware Pack Bolt M6x15 6 PCS Bolt M6x25 2 PCS Flat washer M8 2 PCS Nut cap M8 2 PCS TBZ20308HQ...
  • Page 3 Assembly Instructions: Fig.1: Put the Wheel (H) to Wheel support frame (D), connect them by using washer (CC) and nut cap (DD), tighten by wrench (W). Fig.2: Insert Wheel support frame (D) into holes underneath Shelf (F), and pre-lock them by using bolt (AA) from the Corner piece.
  • Page 4 This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. Please do not return this product to the store. For technical assistance on assembly or replacement parts call Sunjoy Industries at 1(866) 578-6569 from 8:30 AM to 5:30 PM EST or Email bj@sunjoygroup.com or visit www.sunjoygroup.com to place your order or fax your...
