Integrated Washer Dryer
IW 1209.0W
IWT 1259.0W
GB

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IW 1209.0W and is the answer not in the manual?

Questions and answers

Related Manuals for Kuppersbusch IW 1209.0W

Summary of Contents for Kuppersbusch IW 1209.0W

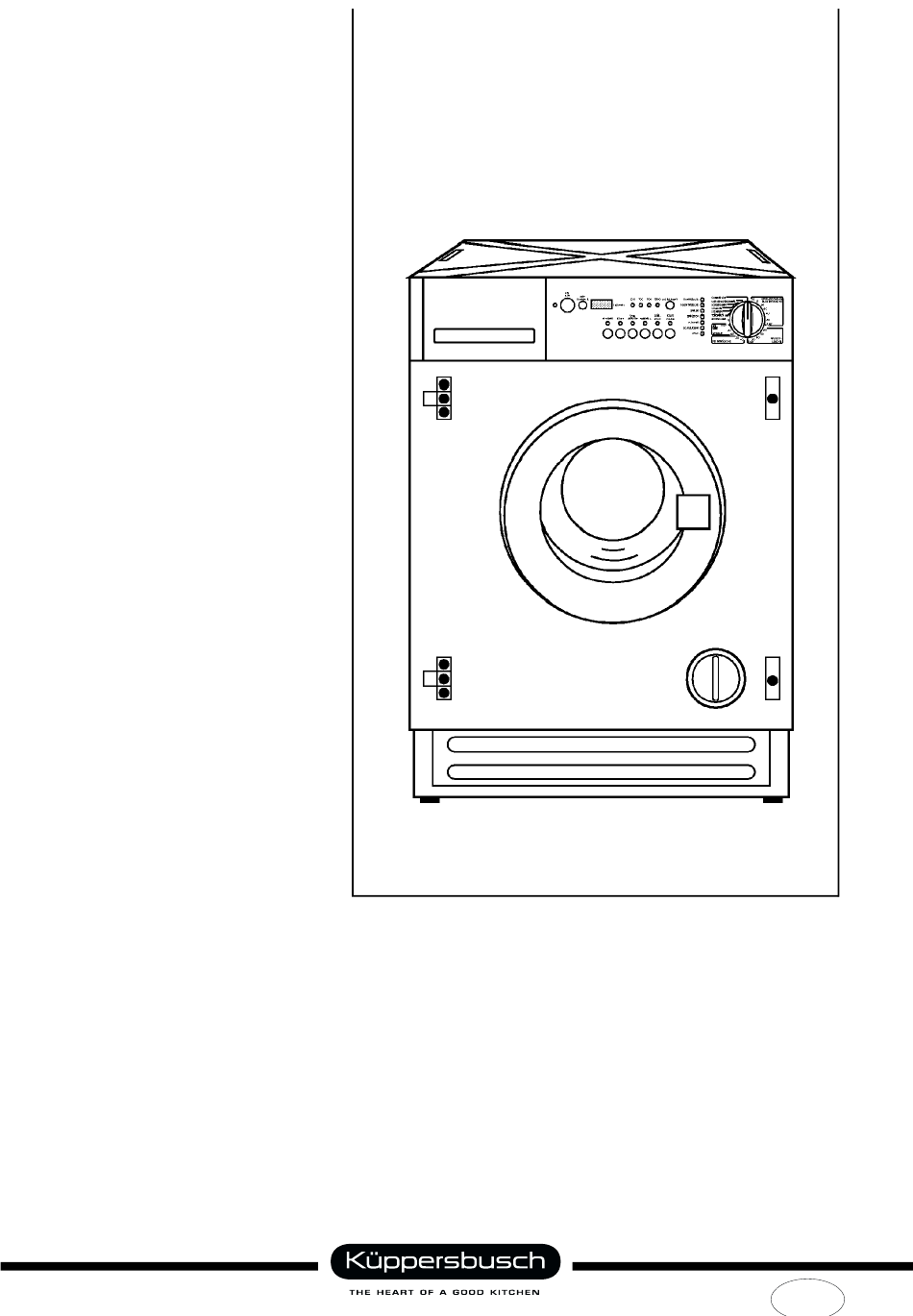

  • Page 1 Integrated Washer Dryer IW 1209.0W IWT 1259.0W...
  • Page 2 Service Manual: H6-03-02 Contents Part A Washing Programmes and Programme Functions Part B Washing Machine IW 1209.0 W Part C Washer Dryer IWT 1259.0 W Part D Fault Code Indicator and Test Programmes Responsible: D. Rutz KÜPPERSBUSCH HAUSGERÄTE AG Tel.: (0209) 401-733 Kundendienst Fax:...
  • Page 3 Washing Programmes and Programme Functions VF 92J - VP91J Multipanel Versions...

  • Page 4: Table Of Contents

    Service Manual IW 1209.0W / IWT 1259.0W Contents AUTOMATIC WASHING MACHINE CONTROL PANEL ..........5 WASHER DRYER CONTROL PANEL ................6 Buttons ........................7 Programme selector .................... 11 Programme time ....................12 WASHING PROGRAMME (FLOWCHART VF92J - VP91J) ......... 13 SPIN PROGRAMMES ....................

  • Page 5: Automatic Washing Machine Control Panel

    Service Manual IW 1209.0W / IWT 1259.0W 1. AUTOMATIC WASHING MACHINE CONTROL PANEL A common electronic control panel is used on models in the "MULTIPANEL" range. The functions of the buttons vary according to the way that the electronics have been configured for each particular model.

  • Page 6: Washer Dryer Control Panel

    Service Manual IW 1209.0W / IWT 1259.0W 2. WASHER DRYER CONTROL PANEL A common electronic control panel is used on models in the "MULTIPANEL" range. The functions of the buttons vary according to the way that the electronics have been configured for each particular model.

  • Page 7: Buttons

    Service Manual IW 1209.0W / IWT 1259.0W 2.1 Buttons ON/OFF button For switching the machine on and off. "Stain Programme" button This button is used to specify that the "Stain Programme" should be run with the WHITES/COLOUREDS and WASH AND WEAR programmes. This involves heating the water to 40 °C and adding a special detergent to the wash via the prewash dispenser.

  • Page 8: Programme Selector

    Service Manual IW 1209.0W / IWT 1259.0W "Programme Status Display" LED While the machine is being programmed, all LEDs light up showing the individual washing programme cycles. When the machine is running, only the LED showing the current cycle remains illuminated.
  • Page 9 Service Manual IW 1209.0W / IWT 1259.0W 2.1.2 "Delay Timer" button This button can be used to delay the programme start by between 1 and 19 hours. The delay time is shown on the display. Pressing the “Start/ Pause” button starts the timer. The time remaining is updated every hour in the display.
  • Page 10 Service Manual IW 1209.0W / IWT 1259.0W 2.1.6 "Drying Time" button - for washer dryers only This button is used to set the drying time: from 10 to 100 minutes for WASH AND WEAR programmes from 10 to 130 minutes for WHITES/ COLOUREDS programmes The drying time can be set in increments of 10 minutes.
  • Page 11 Service Manual IW 1209.0W / IWT 1259.0W 2.2 Programme Selection The following tables show the options available for each wash programme. Programmes Option/ Temperature 95 °C 60 °C Eco 60 °C 40 °C Eco 40 °C 30 °C Cold 2 levels...

  • Page 12: Programme Time

    Service Manual IW 1209.0W / IWT 1259.0W 2.3 Programme Time Temp. Prewash Normal Short Economy Extra rinse TYPE OF LAUNDRY °C (min.) (min.) (min.) wash (min.) (min.) Cotton, white Cotton, white Cotton, white Cotton, white Cotton, white Cotton, coloured Cotton, coloured...

  • Page 13: Washing Programme (Flowchart Vf92J - Vp91J)

    Service Manual IW 1209.0W / IWT 1259.0W 3. WASHING PROGRAMME (FLOWCHART VF92J - VP91J) For internal use only...
  • Page 14 Service Manual IW 1209.0W / IWT 1259.0W SINTHETICS Washprogrammes Functions Detergent reservoir Max. Duration Temperature °C Motor gear Water Intake 2nd Level (220 mm) Water Intake Timed (60 secs.) Water Intake Timed (10 secs.) Water Intake 1st Level (115-150mm) Tub empty...
  • Page 15 Service Manual IW 1209.0W / IWT 1259.0W DELICATES Washprogrammes Functions Detergent reservoir Max. Duration Temperature °C Motor gear Water Intake Timed (10 secs.) Water Intake 2nd Level (220 mm) Water Intake 1st Level (170 mm) Tub empty Tub empty Programme Option...
  • Page 16 Service Manual IW 1209.0W / IWT 1259.0W PROGRAMME KEY P = Filling time T = Heating time V = Drain time (to pressure switch reset point) 3.0.1 Agitation: Action (s) Pause (s) = NORMAL SE = VIGOROUS E1 = 70% AGITATION...

  • Page 17: Spin Programmes

    Service Manual IW 1209.0W / IWT 1259.0W 4. SPIN PROGRAMMES For internal use only...
  • Page 18 Service Manual IW 1209.0W / IWT 1259.0W For internal use only...
  • Page 19 Service Manual IW 1209.0W / IWT 1259.0W For internal use only...
  • Page 20 Service Manual IW 1209.0W / IWT 1259.0W For internal use only...
  • Page 21 Built-in Washing Machine IW 1209.0W Part B...
  • Page 22 Service Manual IW 1209.0W / IWT 1259.0W Contents Part B ELECTRONIC CONTROL SYSTEM ................23 Control unit ......................24 Display module ....................26 Programme selector .................... 26 Water inlet valve ....................27 Electronic pressure switch ................... 29 Motor speed control ..................... 31 Wash water temperature control .................

  • Page 23: Electronic Control System

    Service Manual IW 1209.0W / IWT 1259.0W 5. ELECTRONIC CONTROL SYSTEM The system, which is microprocessor-controlled, consists of a main module, a display module and a water inlet unit. Known as MWM 1.5 (modular washing machine, version 1.5) this is a modular system; different models can be manufactured simply by substituting a few components.

  • Page 24: Control Unit

    Service Manual IW 1209.0W / IWT 1259.0W 5.1 Control Unit The main control unit, which is equipped with a microprocessor, monitors and controls the operation of the machine. It is enclosed in a plastic case attached to the control panel.

  • Page 25: Display Module

    Service Manual IW 1209.0W / IWT 1259.0W 1. Control unit 10. Heating elements (drying) 2. Display module 11. Condenser solenoid valve 3. Electronic pressure switch 12. Fan motor 4. Safety pressure switch 14. Water inlet solenoid valve (washing) 5. NTC thermistor (washing) 16.
  • Page 26 Service Manual IW 1209.0W / IWT 1259.0W 5.2 Display Module The display module is attached to the back of the control panel. It provides the user with information on all aspects of the machine’s operation. The button functions are determined by the type of control unit fitted and the design of the particular machine.

  • Page 27: Water Inlet Valve

    Service Manual IW 1209.0W / IWT 1259.0W 5.4 Water Inlet Valve The water inlet valve is mounted on the control panel. It performs the following tasks: it moves the detergent dispenser lever mechanism, in order to direct water into the different compartments during the wash programme.
  • Page 28 Service Manual IW 1209.0W / IWT 1259.0W Water Inlet Valve Contact Sequence The microprocessor actuates and controls the water inlet valve. The inlet valve motor (contacts T7-1/T7-2) is powered via a triac in the control unit. In order to avoid wear on the contacts, the current supply to the loads is interrupted before the motor is energised.

  • Page 29: Electronic Pressure Switch

    Service Manual IW 1209.0W / IWT 1259.0W 5.5 Electronic Pressure Switch The electronic pressure switch is an analogue device for monitoring the water level in the tub. It is directly connected to the control unit. If the pressure switch should fail, the appliance will switch off immediately.
  • Page 30 Service Manual IW 1209.0W / IWT 1259.0W Circuit Diagram R1-R2 4.7KW 2.7KW 150W 10nF 33nF 15nF LM311 L = 480 turns Ø 0.16 mm Change of frequency relative to pressure (±50 Hz) For internal use only...

  • Page 31: Motor Speed Control

    Service Manual IW 1209.0W / IWT 1259.0W 5.6 Motor Speed Control 1. Control unit 2. Motor Motor speed control is regenerative via a TY4 triac. The rectifier (GR2) converts AC to DC to supply power to the motor. The switching of the motor windings (M) and the stator (ST) needed to change the motor’s rotational direction is performed using a relay (K1) located in the control unit.
  • Page 32 Service Manual IW 1209.0W / IWT 1259.0W 5.6.1 Foam Control A pressure switch monitors foam build-up during the spin programmes. This improves the efficiency of the rinsing operation even when the water level is low. If the pressure switch actuates when draining on spin, signifying the presence of foam in the tub, power is cut to the motor and the spin cycle is interrupted.

  • Page 33: Wash Water Temperature Control

    Service Manual IW 1209.0W / IWT 1259.0W 5.7 Wash water temperature control 1. Control module 2. Thermistor 3. Safety pressure switch 4. Heating element (washing) The microprocessor sets the temperature of soapy water needed each programme. In the “on” position, current flows to the heating element (4) through relay K3 via the contacts of the safety pressure switch (3).

  • Page 34: Access To Components

    Service Manual IW 1209.0W / IWT 1259.0W 6. ACCESS TO THE COMPONENTS This section explains how to gain access to the various parts of the machine. 6.1 Fascia Remove the top panel. Take out the detergent dispenser and remove the fixing screws at the front of the fascia.

  • Page 35: Display Module

    Service Manual IW 1209.0W / IWT 1259.0W 6.2 Display Module a) Remove the fascia panel b) Undo the screws c) Release the module 6.3 Programme selector switch a) Remove the fascia panel b) Take off the knob c) Undo the screws on the programme selector switch...

  • Page 36: Water Inlet Valve

    Service Manual IW 1209.0W / IWT 1259.0W 6.4 Water Inlet Valve a) Remove the top pane. b) Remove the cable connector c) Disengage the lever from the inlet unit b) Remove the screws and withdraw the inlet unit from its mounting 6.5 Control Unit...

  • Page 37: Wiring Diagram Iw 1209.0 W

    Service Manual IW 1209.0W / IWT 1259.0W 6.7 Wiring Diagram IW 1209.0 W Door interlock Circulation pump Heating element (washing) Outlet pump Water inlet unit Thermistor Motor Air vessel on filter Analogue pressure regulator Air vessel on tub Pressure regulator...
  • Page 38 Service Manual IW 1209.0W / IWT 1259.0W 6.8 Wiring diagram IW 1209.0 W Display module Main module Motor Analogue pressure regulator Water inlet unit - motor Interference suppression filter For internal use only...
  • Page 39 Built-in Washer Dryer IWT 1259.0 W Part C...
  • Page 40 Service Manual IW 1209.0W / IWT 1259.0W Contents DESIGN FEATURES AND FLOW DIAGRAM ............... 41 7,1. Water circulation (drying)..................41 Drying system...................... 42 Fan ........................45 Heater housing ....................46 Heater duct ......................47 Condenser (drying) ..................... 48 Condenser, “self cleaning” .................. 49 WATER CIRCULATION (DRYING)................

  • Page 41: Design Features And Flow Diagram

    Service Manual IW 1209.0W / IWT 1259.0W 7. DESIGN FEATURES AND FLOW DIAGRAMS 7.1 Dryer Components 1. Fan 9. Condenser (drying) 2. Fan motor 10. Connector 3. Heater housing 11. Solenoid valve 4. Heater, drying 12. Connecting hose 5. Heater duct Condenser connector 6.

  • Page 42: Drying System

    Service Manual IW 1209.0W / IWT 1259.0W 7.2 Drying System There is a choice of two drying methods to change to: Auto drying The microprocessor determines the optimum drying time for the drying level required. The drying cycle can be carried either at the end of the washing cycle, or independently.
  • Page 43 Service Manual IW 1209.0W / IWT 1259.0W Thermostats and NTC Thermistor for Monitoring the Drying Temperature 1. Overheat thermostat with manual reset (150°C) 2. Overheat thermostat (98°C) 3. Extra dry thermostat (85°C) 4. NTC1 thermistor for monitoring the drying temperature There are two overheat thermostats in the housing.
  • Page 44 Service Manual IW 1209.0W / IWT 1259.0W DRYING SYSTEM (auto) 1. Control unit 2. Door opening delay unit 3. Safety pressure switch 4. Thermostat with manual reset (150°C) 5. Gentle dry heating element 6. Fast dry heating element 7. Overheat thermostat (98°C) 8.

  • Page 45: Fan

    Service Manual IW 1209.0W / IWT 1259.0W 7.3 Fan 1. Fan unit 2. Fan motor 3. Drive belt The fan blows air from the condenser to the heater housing unit. The fan motor drives the impeller via a V-belt. Cover...

  • Page 46: Heater Housing

    Service Manual IW 1209.0W / IWT 1259.0W 7.4 Heater housing unit 1. Housing 2. Thermostat with manual reset 3. Drying thermostat 4. Heating element, drying 5. Overheat thermostat The heater housing consists of two aluminium alloy sections, bolted together and sealed with silicone sealant.

  • Page 47: Heater Duct

    Service Manual IW 1209.0W / IWT 1259.0W 7.5 Heater Duct 1. Heater duct 2. Fixing screws 3. Door seal 4. Wire band plate Warm air is directed from the heater unit along the duct, through the seal and directly into the drum.

  • Page 48: Condenser (Drying)

    Service Manual IW 1209.0W / IWT 1259.0W 7.6 Condenser (drying) The drying condenser is attached to the frame. It consists of a plastic moulding with a hose connection to the sump at the bottom and a gasket connection to the fan housing unit at the top.

  • Page 49: Condenser, "Self Cleaning

    Service Manual IW 1209.0W / IWT 1259.0W 7.7 Condenser (self-cleaning) 1. Circulation pump 2. Condenser 3. Tube Pump - Condenser During drying, lint that has been fed in with the water may collect on the bottom of the condenser. The Jetsystem automatic washers are fitted with a pipe that connects the circulation pump to the condenser.

  • Page 50: Water Circulation (Drying)

    Service Manual IW 1209.0W / IWT 1259.0W 8. WATER CIRCULATION (DRYING) 1. Solenoid valve 2. Tube to solenoid valve connector 3. Adapter 4. Tube adapter - condenser 5. Tube, detergent reservoir - tub 6. Moisture vent tube The condensate enters a sub-chamber of the cold water solenoid valve at a rate of 0.4 litres per minute.

  • Page 51: Jetsystem "Direct Spray" Washing System

    Service Manual IW 1209.0W / IWT 1259.0W 8.2 Washing with the Direct Spray Jetsystem Washer dryers fitted with the Jetsystem use the Direct Spray system for washing. With this system, water is sprayed directly into the drum through a feed fitted at the top of the door seal.

  • Page 52: Electrical Components (Drying)

    Service Manual IW 1209.0W / IWT 1259.0W 9. ELECTRICAL COMPONENTS - DRYING CYCLE 9.1 Timer The washer dryers are fitted with two different types of timer. A standard-type timer fitted with an interval timer for monitoring the drying time. The interval timer controls the timer’s thermostop solenoid during drying.

  • Page 53: Wiring Diagram - Timer With Interval Timer (Drying Cycle)

    Service Manual IW 1209.0W / IWT 1259.0W 9.2 Wiring Diagram for Timer with Interval Timer (drying cycle) Timer and Interval Timer Contacts 1. Main switch 2. Door delay unit 3. Control lamp 21. Door opening delay 4. Pressure switch 22. Drying 5.
  • Page 54 Service Manual IW 1209.0W / IWT 1259.0W Once the drying programme and time have been selected, pressing the main switch (1) will cause current to flow via contacts (21) first to the door delay unit (2) and then to all other system components.

  • Page 55: Wiring Diagram - Timer With 2 Switches (Drying Cycle)

    Service Manual IW 1209.0W / IWT 1259.0W 9.3 Wiring diagram for timer with two switches (drying cycle) Timer contacts 1. Main switch 2. Control lamp 17. Door opening delay 3. Thermostat with manual reset 18. Fast heat 4. Door delay unit 19.
  • Page 56 Service Manual IW 1209.0W / IWT 1259.0W With this type of timer, the drying time is set with the interval timer switch. When the main switch (1) is pressed, after setting the drying programme and drying time, current is directed to door delay unit (4) and then to all other components via contact (17) and manual-reset thermostat (3).

  • Page 57: Access To Components For Repair

    Service Manual IW 1209.0W / IWT 1259.0W 10. ACCESS TO THE COMPONENTS FOR REPAIR 10.1 Access from the top of the machine Timer 2. Interval timer 3. Fan motor 4. Fan Drive belt 6. Heating element housing 7. Solenoid valve, warm water 8.
  • Page 58 Service Manual IW 1209.0W / IWT 1259.0W 10.1.1 Interval timer (drying) Remove the cover from the rotary knob using a small screwdriver or a thin blade. Lift up the locking tab between the knob and shaft and pull out the barrel.
  • Page 59 Service Manual IW 1209.0W / IWT 1259.0W 10.1.2 Solenoid valve Remove the supply tube. Undo the retaining screws on the connecting block retainer and release the clamp that holds the solenoid to the detergent reservoir. Undo the screws and release the rear cable grip.

  • Page 60: Access Via The Rear Panel

    Service Manual IW 1209.0W / IWT 1259.0W 10.2 Access via the Rear Panel Please note: Be very careful how you move the washer dryer once you have removed the rear panel. Do not lie it on its side or its back, as this will damage the machine’s structural frame.
  • Page 61 Service Manual IW 1209.0W / IWT 1259.0W 10.2.1 Removing the Rear Panel Remove the screws that fix the rear panel to the frame. Remove the screws on the rear panel. Take out the fan. You now have access to the following components: 10.2.2 Fan unit...

  • Page 62: Access Through The Porthole

    Service Manual IW 1209.0W / IWT 1259.0W 10.2.6 Drying Thermostat and Safety Thermostats Withdraw the thermostat housing from the washer dryer. Undo the screws and take out the thermostat. 10.2.7 Drying Heating Element Remove the connectors Unscrew both retaining screws from the heater housing Note on Reassembly When refitting, please make sure that the heating element is correctly located in its support.
  • Page 63 Service Manual IW 1209.0W / IWT 1259.0W 10.3.1 Door Seal and Heater Duct Remove the top cover. Unscrew the retaining screws from the heater duct casing Open the door and undo the screw holding the heater duct to the case of the machine.
  • Page 64 Service Manual IW 1209.0W / IWT 1259.0W Note on Reassembly When reinstalling the door seal, make sure to line up the notch on the seal with the hole for the heater duct. When refitting the wire clamp, please make sure that it is correctly seated in the gasket, as shown in the illustration.
  • Page 65 Service Manual IW 1209.0W / IWT 1259.0W The clamp fitted to the water drain hose should be mounted as shown in the illustration. 2 clamps Water drain hose Clamp Sleeve Front case of machine Reconnect the heater duct to the heater casing. Bend the two lugs with pliers as shown in the illustration.

  • Page 66: Circuit Diagrams

    Service Manual IW 1209.0W / IWT 1259.0W 11. CIRCUIT DIAGRAMS 11.1 IWT 1259.0 Door interlock Thermistor Circulation pump (washing) Heating elements (washing) Outlet pump Water inlet unit Motor Analogue pressure regulator Air vessel on filter Air vessel on tub Pressure regulator...
  • Page 67 Service Manual IW 1209.0W / IWT 1259.0W IWT 1259.0 Display module Motor Main module Heating element (drying) Overheat thermostat Interference suppression filter For internal use only...
  • Page 68 Service Manual IW 1209.0W / IWT 1259.0W For internal use only...
  • Page 69 Fault Indicator and Test Programmes Electronic Washing Machines Multipanel Version...
  • Page 70 Service Manual IW 1209.0W / IWT 1259.0W Contents 12 INTRODUCTION ......................70 13 FAULT CODES ......................72 13,1 Reading the fault codes ..................72 13,2 Resetting the fault log ..................72 13,3 Fault codes ......................73 14 DIAGNOSTIC PROGRAMMES..................75 14.1...

  • Page 71: Introduction

    Service Manual IW 1209.0W / IWT 1259.0W 12. INTRODUCTION This documentation describes the fault indicator and the diagnostic and test programmes for electrical appliances (washing machines/ washer dryers) fitted with the MULTIPANEL systemdryers) (version MWM 1.5). You will also find here details of the control system for the fault indicator, diagnostic and test programmes.

  • Page 72: Fault Codes

    Service Manual IW 1209.0W / IWT 1259.0W 13. FAULT CODES 13.1 Reading the Fault Codes To read the fault codes, proceed as follows: Switch the machine on using the ON/OFF button, at the same time holding down buttons 10 and 7 .

  • Page 73: Fault Codes

    Service Manual IW 1209.0W / IWT 1259.0W 13.3 Fault Codes User Fault Result of Description Fault Possible Causes of Fault Code Fault Code Water supply problem on Programme Shut-off valve closed. Solenoid, inlet valve, wash cycle pauses wiring, main PCB, pressure switch.
  • Page 74 Service Manual IW 1209.0W / IWT 1259.0W User Fault Result of Description Fault Possible Causes of Fault Code Fault Code Overheating on drying- Skips a Heating element (earthed), cycle cycle main PCB (relay) Blockage in drying condenser Blockage in drying con-...

  • Page 75: Diagnostic Programmes

    Service Manual IW 1209.0W / IWT 1259.0W The following table lists all the cycles and subdivisions of these cycles, together with the codes which appear (alternately with the fault codes) when they are running. The first number refers to the cycle and the second to the subdivision of the cycle.

  • Page 76: Diagnostic Programme - Display/ Switch Module

    Service Manual IW 1209.0W / IWT 1259.0W 14.1 Diagnostic Programme – Display and Switch Module This diagnostic programme checks all of the components on the control panel. Although it doesn’t actually activate the functions, it tests each individual button, LED and the programme selector.

  • Page 77: Diagnostic Programme - Inlet Valve

    Service Manual IW 1209.0W / IWT 1259.0W 14.2 Water Inlet Valve Diagnostic Programme This self-diagnostic programme can check the operation of the following components: Water inlet valve stepper motor Contact timing A fault code will appear if any fault is found.

  • Page 78: Diagnostic Programme - Washing

    Service Manual IW 1209.0W / IWT 1259.0W 14.3 Diagnostic Programme - Washing This diagnostic programme provides a semi-automatic check of all components used by the machine during the washing programmes. Accessing the diagnostic programme: Switch the machine on using the ON/OFF button, at the same time holding down buttons 7 and 9 .
  • Page 79 Service Manual IW 1209.0W / IWT 1259.0W Phase Test Loading Activated State at End of Phase Exit from Phase Possible Calibration electron. Drain pump Draining tub pressure switch Water inlet valve Calibration completed Water supply prewash Solenoid valve 1st water level reached...
  • Page 80 Service Manual IW 1209.0W / IWT 1259.0W Spin (phase 12) For internal use only...

  • Page 81: Diagnostic Programme - Drying

    Service Manual IW 1209.0W / IWT 1259.0W 14.4 Diagnostic Programme - Drying This diagnostic programme provides a semi-automatic check of all components used by the machine during the drying programmes. Accessing the Diagnostic Programme Switch the machine on using the ON/OFF button, at the same time holding down buttons 8 and 10 .
