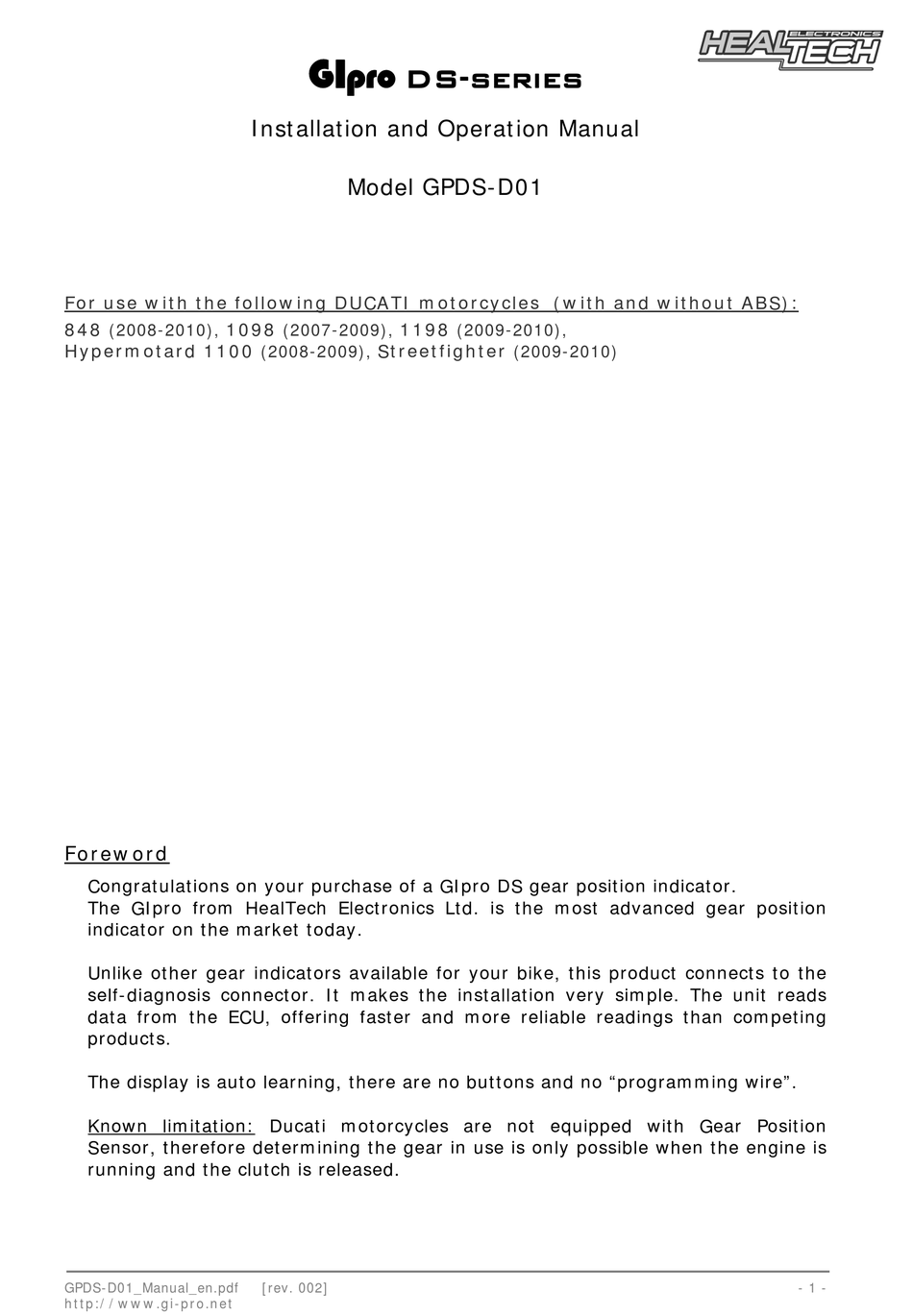

Healtech GIpro DS Series Installation And Operation Manual

For use with the following DUCATI motorcycles (with and without ABS):

848

1098

(2008-2010),

Hypermotard 1100

Foreword

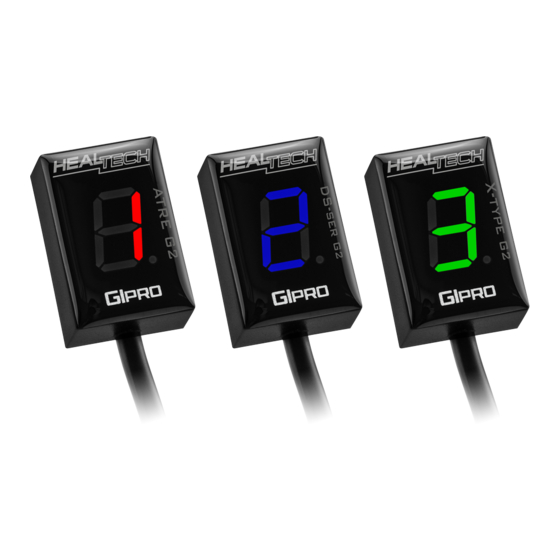

Congratulations on your purchase of a GIpro DS gear position indicator.

The GIpro from HealTech Electronics Ltd. is the most advanced gear position

indicator on the market today.

Unlike other gear indicators available for your bike, this product connects to the

self-diagnosis connector. It makes the installation very simple. The unit reads

data from the ECU, offering faster and more reliable readings than competing

products.

The display is auto learning, there are no buttons and no "programming wire".

Known limitation: Ducati motorcycles are not equipped with Gear Position

Sensor, therefore determining the gear in use is only possible when the engine is

running and the clutch is released.

GPDS-D01_Manual_en.pdf

http://www.gi-pro.net

pro DS-series

Installation and Operation Manual

Model GPDS-D01

1198

(2007-2009),

Streetfighter

(2008-2009),

[rev. 002]

(2009-2010),

(2009-2010)

- 1 -

Table of Contents

Need help?

Do you have a question about the GIpro DS Series and is the answer not in the manual?

Page 1 Foreword Congratulations on your purchase of a GIpro DS gear position indicator. The GIpro from HealTech Electronics Ltd. is the most advanced gear position indicator on the market today. Unlike other gear indicators available for your bike, this product connects to the self-diagnosis connector.
Page 2 Installation Find the 4-pole self-diagnosis connector under the seat. Detach the cover (cap) from the plug and connect the GIpro plug. Attach the cover (cap) to the second, unused GIpro plug. Alternatively, if you wish, you can connect other modules, like the optional Ducati Data Logger to this connector.
Page 3 To ensure trouble-free operation from the start, all units have been extensively tested prior to shipment. Our dealers are offering a 30-day money-back guarantee on HealTech products, thus you will get your money back if the product does not fulfill your expectations.
