Before installing this product, please make sure you got the right part for your bike. See
the part number on the packaging and use the Product Advisor on our website to check
compatibility.
These instructions are applicable to a wide range of motorcycles and describe the main
install steps needed for a successful installation. You may find motorcycle specific
Supplementary Manuals on our website. Please visit:
www.healtech-electronics.com/GPDT
1. Foreword

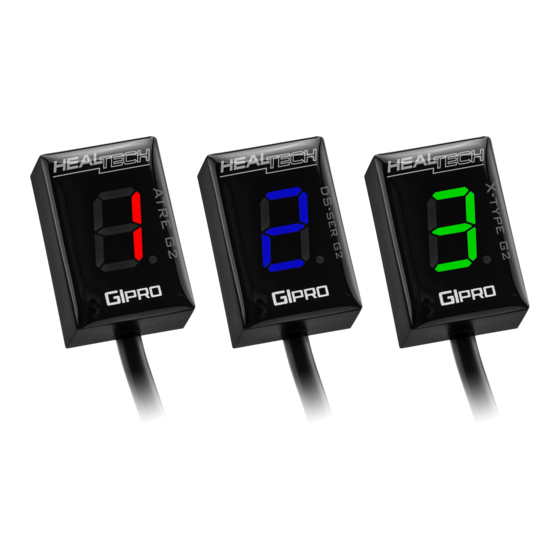

Congratulations on your purchase of a GIpro DS gear position indicator.
The GIpro products from HealTech Electronics Ltd. are the most advanced gear
position indicators on the market today.
This product connects to the self-diagnosis connector. It makes the installation
very simple. Due to the advanced microprocessor and sophisticated firmware,
the GIpro DS offers faster and more reliable readings than competing products.
The unit is also the smallest, most compact gear indicator available, making it
easy to mount at the instrument cluster.
2. Specifications
- Supply voltage: +8V to +24V
- Maximum supply current at 12V: 80 mA
- Reverse polarity and transient protection on all leads
- Unit size: 20 x 30 x 13 mm (0.7 x 1.2 x 0.5 inches)
- Operating temp: -40C to +80C (-40F to +176F)
- Waterproof (IP68)
3. Features
Fast and accurate
Instant and accurate indication of the selected gear for added control and safety.
The sampling period can be adjusted to make the response quicker or slower,
depending on shift speed and signal conditions.
Touch control
All settings can be done via the touch sensor so there's no opening on the
housing, it is completely sealed and encapsulated in epoxy.
The touch sensitive area is on the TOP of the unit. However, after programming,
the unit can be mounted even with the top side stuck to the dashboard (via the
sticky pads supplied) and will function properly. It can also be used with the
optional GIpro Mount.
GPDT-BM2_Manual_en.pdf
www.healtech-electronics.com
GIpro DS-series
Installation and Operation Manual
Model GPDT-BM2
[rev. 002]
2
G
- 1 -
Advertisement
Table of Contents
Related Manuals for Healtech GIpro DS Series
Summary of Contents for Healtech GIpro DS Series
- Page 1 1. Foreword Congratulations on your purchase of a GIpro DS gear position indicator. The GIpro products from HealTech Electronics Ltd. are the most advanced gear position indicators on the market today. This product connects to the self-diagnosis connector. It makes the installation very simple.
- Page 2 The sensitivity of the sensor can be fine-tuned in the menu. Works out-of-the-box The GPDT-BM2 does not require any setup, it works right after installation. Compatibility Compatible with all HealTech and most aftermarket products, including quick shifters. Robust design - Full SMT-design, encapsulated in epoxy...
- Page 3 6. Setup (menu) There are several parameters which can be changed or fine-tuned under the menu. Sign Function Description See chapter Code Reading the firmware version Filtering Adjusting the filtering (sampling period) Brightness Adjusting the sensitivity of the light sensor Upside down Flipping the display upside down Defaults...
- Page 4 To ensure trouble-free operation from the start, all units have been extensively tested prior to shipment. Our dealers are offering a 30-day money-back guarantee on HealTech products, thus you will get your money back if the product does not fulfill your expectations.
