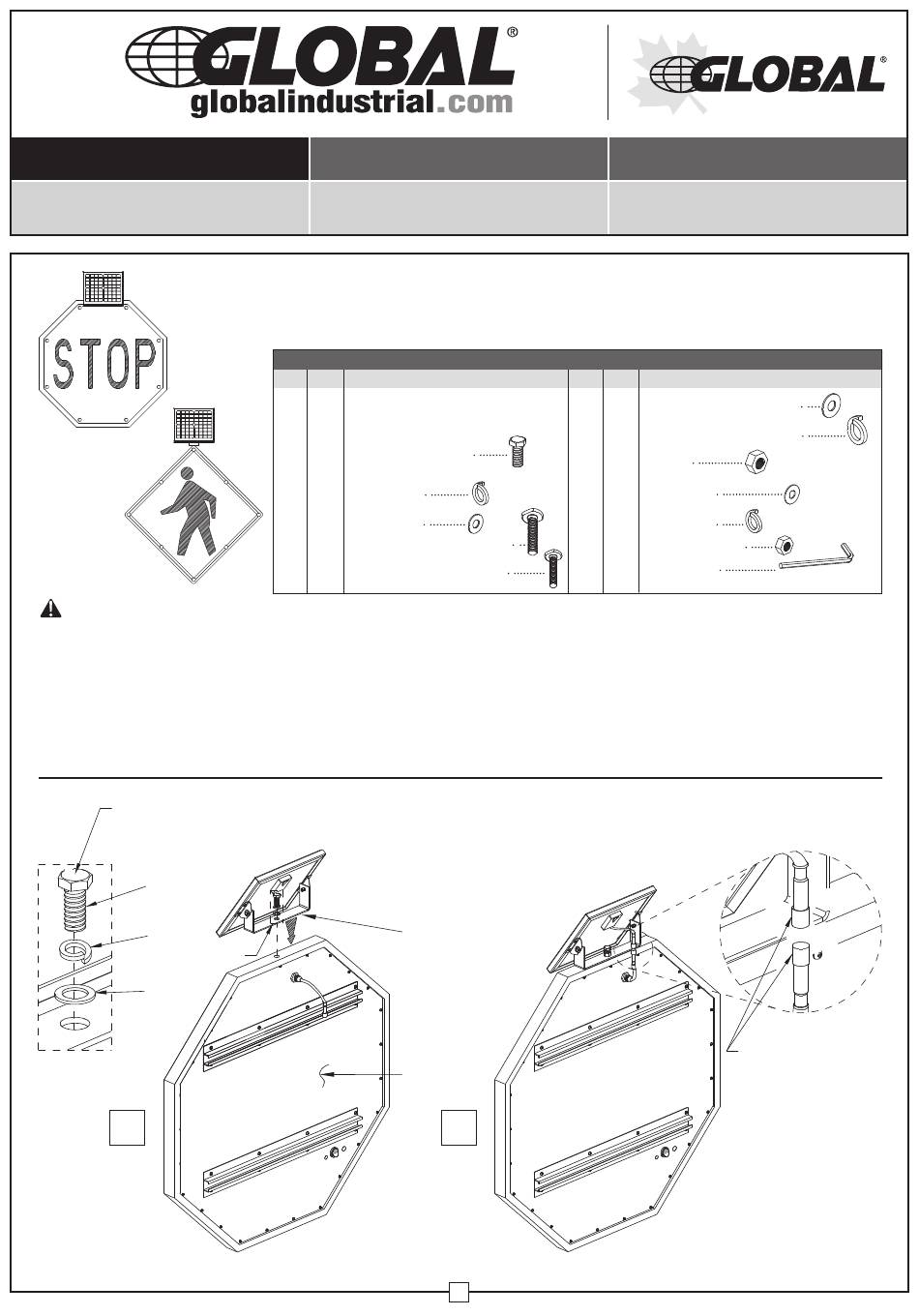

Global 708312 Assembly Instructions

Assembly Instructions
Customer Service
US: 1-800-645-2986
WARNING
• Before proceeding with
maintenance, and/or troubleshooting, read all Warnings.
Failure to pay attention to them could result in serious injury
or death.
• Use OSHA- approved Protective Clothing and Devices,
Cut-proof Gloves, and Safety Glasses for all procedures.
Failure to do so could result in serious injury or death.
Tighten with
torx allen key.
H1
H2
See
Detail A
H3
Detail A
1
Instrucciones de Ensamblaje
Servicio de atención al Cliente
US: 1-800-645-2986
Solar Powered LED Sign
Models 708312 708313
Ref. Qty.
1 1 Flashing Sign
2 1 Solar Panel Assembly
3 2 Pole Mounting Bracket
M10 x 1.5 x 25mm Lg.
H1 1
Torx Pan Head Bolt
10mm Diameter
H2 1
Lock Washer
10mm Diameter
H3 1
Plain Washer
H4 4 M12 x 1.50 x 45mm Lg. T-Bolt
H5 2 M8 x 1.25 x 45mm Lg. T-Bolt
any assembly, installation,
2
1

CONTENTS

Description Ref. Qty.
H6
H7
H8
H9
H10
H11
• Solar panels produce an electrical current. To reduce the
risk of injury, use shock-proof gloves and never perform any
procedure in or near standing water.
• Batteries must be disposed of according to local code.
DO NOT INCINERATE! Failure to heed this warning could
result in serious injury or death.
2
1
globalindustrial.ca
Directives d'assemblage
Service à la clientèle
Canada: 888-645-2986
Description
4 12mm Diameter Plain Washer
4 12mm Diameter Lock Washer
M12 x 1.50
4
Hex Nut
8mm Diameter
2
Plain Washer
8mm Diameter
2
Lock Washer
2 M8 x 1.25 Hex Nut
1 Torx Allen Key
1 AC Charger
Connect solar panel
assembly to the sign
by connecting male
end of black chord
to female end and
screwing together.
