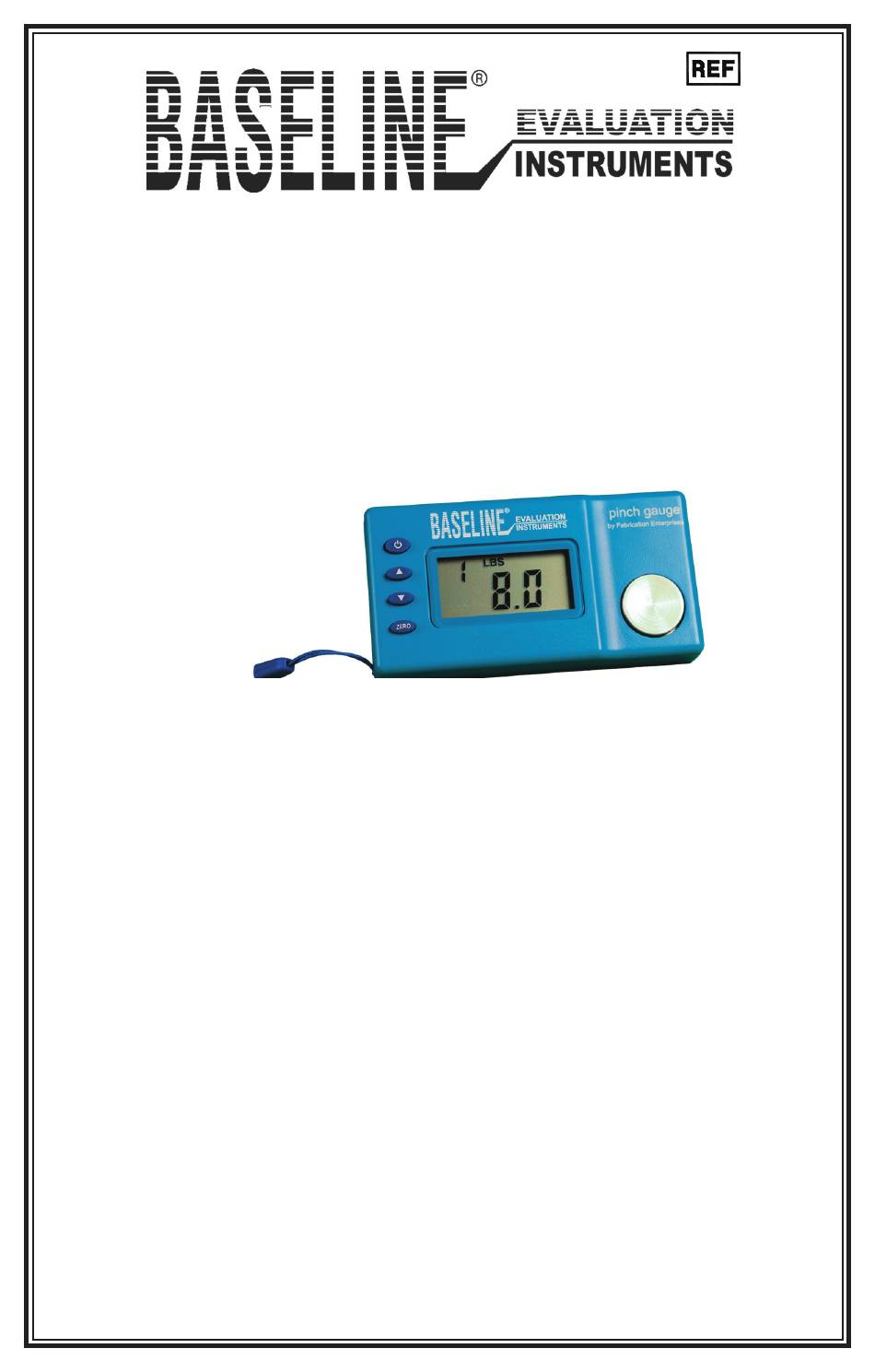

12-0475
electronic pinch gauge
Electronic Punch Gauge Operating Instructions
EASY TO USE

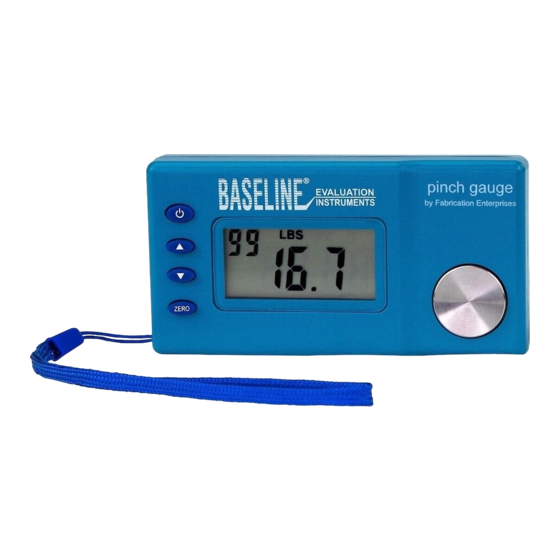

Measure tip, key and palmer pinch strength with this digital pinch gauge. Maximum
results are displayed on the easy-to-read LCD screen. Pinch gauge stores up to 100
readings.
Includes button to zero last reading stored and two toggle buttons to accurately store
and retrieve up to 100 readings.
Measures up to 95 lb. / 43 kg. of force.
Includes wrist-strap and one 3V CR2032 battery.
ver 03/14
Advertisement
Table of Contents
Related Manuals for Baseline 12-0475
Summary of Contents for Baseline 12-0475
- Page 1 12-0475 electronic pinch gauge Electronic Punch Gauge Operating Instructions EASY TO USE Measure tip, key and palmer pinch strength with this digital pinch gauge. Maximum results are displayed on the easy-to-read LCD screen. Pinch gauge stores up to 100 readings. Includes button to zero last reading stored and two toggle buttons to accurately store and retrieve up to 100 readings.
- Page 2 Operating Instructions: Function Buttons ( 1 ) Power button: Press 1 time to toggle between on and off. Unit is turned on when off and shut off when ▲ ( 2 ) Up button: Press one time to save value of cur- rent record and move to and display previous record on the screen.
- Page 3 Operations Testing Operation: ( 1 ) Press the power button to turn unit on. “FEI” will appear on the screen. After 3 seconds the record number will appear with a reading of “0.0”. If 0.0 is not displayed press ZERO to clear max- imum reading or the down arrow (3) to advance to the next record.
- Page 4 ver 0615...
