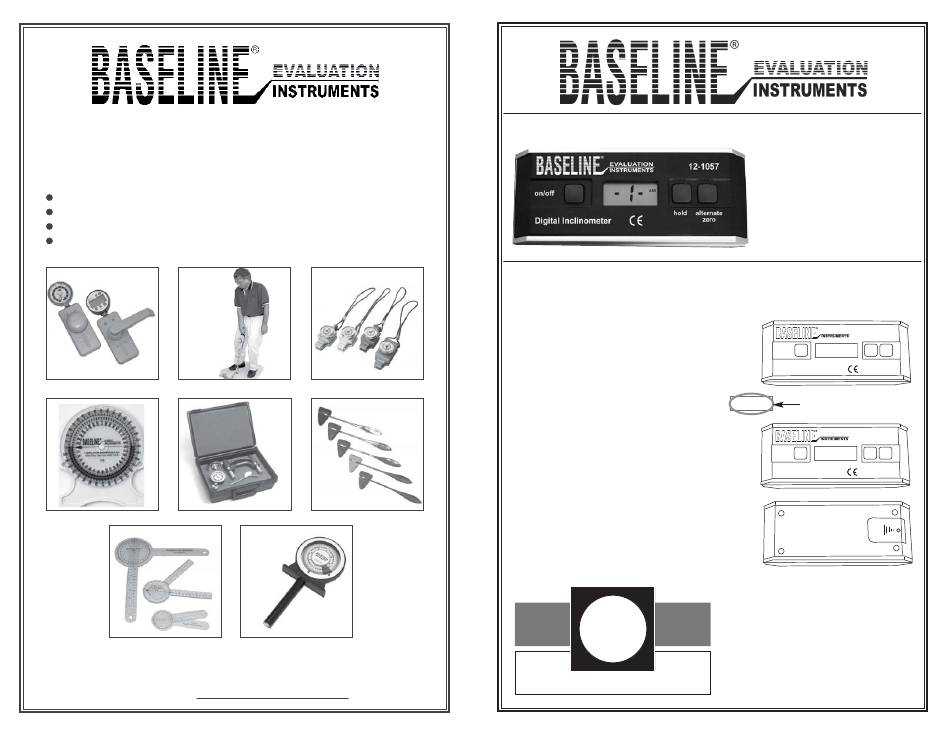

DIGITAL INCLINOMETER OPERATING INSTRUCTIONS:
CALIBRATION and INITIAL SET-UP
The Digital Inclinometer needs to be calibrated after you replace the battery. At any time you can
force a recalibration by holding the ON/OFF button for 6
seconds. There are 4 steps to calibrate the unit:
1. Place the unit on a flat horizontal surface, with unit fac-
ing you with the lettering right-side up. Press ON/OFF
button, the " - 1 - " appears.
2. Press ALTERNATE ZERO button. The " - 1 - "
begins to blink.
3. Wait approiximately six seconds until the " - 2 - " appears.
4. Rotate the unit 180 degrees so it faces away from you,
(the lettering should still be right-side up). Align with the
same edge or line. Press ALTERNATE ZERO button and
the " - 2 - " starts to blink. Wait six seconds until the actual
angle is visible. The calibration is finished.
Fabrication
Enterprises
Incorporated
Manufacturer and Master Distributor of
Physical Therapy and Rehabilitation Products
12-1057
EASY TO USE
Range-of-motion can be read
directly after the joint has been
taken through its range. Place
inclinometer near the joint to be
measured; press the "alternate
zero" button; move joint through
its range; press the "hold" but-
ton. Read range-of-motion.
12-1057
EVALUATION
- 1 -
ABS
on/off
hold
alternate
zero
Digital Inclinometer
The icon " - 1 - " is blinking
- 1 -
ABS
12-1057
EVALUATION
D
- 2 -
ABS
on/off
hold
alternate
zero
Digital Inclinometer
The icon " - 2 - " is blinking
-
on the other side
D
Fabrication Enterprises, Inc.
PO Box 1500
White Plains, New York 10602 USA
tel: 800-431-2830 914-345-9300
fax: 800-634-5370 914-345-9800
info@FabricationEnterprises.com
ver 7/08
