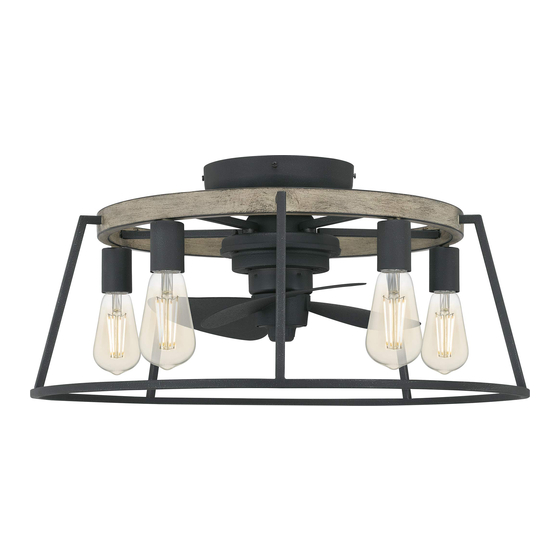

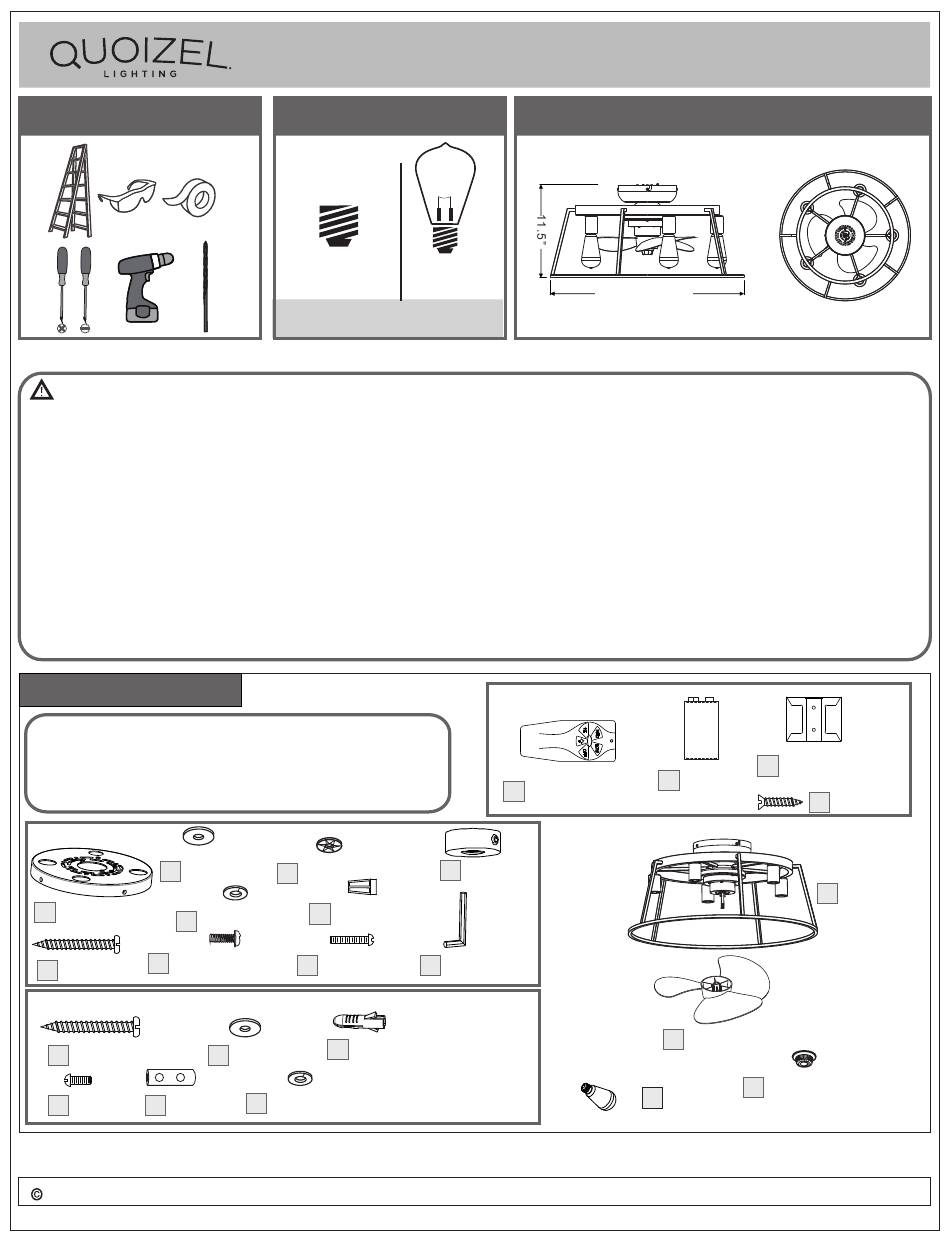

Quoizel BRT3124GK Installation Manual

Tools Required
Warnings and Cautions
READ AND SAVE THESE INSTRUCTIONS
1) Turn off electricity at circuit breaker or main fuse box before installation. Consult a licensed electrician if in doubt.
2) These instructions are provided for your safety. It is very important you read them completely before installing the fixture. We strongly
recommend that a licensed, professional electrician perform the installation.
3) WARNING- To Reduce The risk of personal injury, Do not bend the blades when installing the fan, or cleaning the fan. Do not insert foreign
objects in between rotating fan blades.
4) WARNING- To Reduce The Risk Of Fire, Electric Shock, Or Personal Injury, Mount To Outlet Box Marked (Acceptable for Fan Support of
22.7kg(50lbs) or less) And Use Mounting Screws Provided With The Outlet Box.
5) All set screws must be checked, and retightened where necessary, before installation.
6) After making the wire connections, the wires should be spread apart with the grounded conductor and the equipment-grounding conductor on
one side of the outlet box and the ungrounded conductor on the other side of the outlet box.
7) Disconnect fixture from the power source before replacing bulbs or cleaning. Make sure the bulbs are given sufficient time to cool be before
removing.
8) Suitable for use with solid-state speed controls.
9)Use Only With Light Kits Marked Suitable For Use In Damp Locations
10) This unit weighs 5.2KG.
Package Contents
Preparation: Identify and inspect all parts before beginning
installation. Check package content list and diagrams below to
ensure all parts are present. If any parts are missing or damaged,
do not attempt to assemble, install, or operate the fixture.
Missing Parts? Contact your original place of purchase.
PARTS BAG 1
Flat Washer
C
x 4
Hanger Frame x 1
Spring Washer
A
(Pre-assembled to
E
x 4
Fixture Body)
Mounting screw x 4
Wood Screw
G
(Pre-assembled to
B
x 2
Fixture Body)
PARTS BAG 2
Screw
I
x 1
Fastener
Set Screw
L M
x 1
x 1
2020 Quoizel Inc.
Light Source
BULB BASETYPE
MEDIUM (E26)
5 BULBS REQUIRED
BULB INCLUDED
Lock Washer
D
x 4
Wire Connector
F
x 3
Machine screw
H
x 2
Flat Washer Wall Anchor
K
J
x 1 x 1
Spring Washer
N
x 1
visit us on-line at www.quoizel.com
Installation Guide
For Styles BRT3124GK
LED 8W
BULB SHAPE
TYPE S
PARTS BAG 3
Remote Control
O
Transmitter X 1
X Ring
x 1
S Allen Wrench
x 1
1 of 5
Fixture Hanging Height
24" Dia.
Mounting Bracket
Q
X 1
Batteries
P
X 1
U Fan Blade
X 1
W Blade Assembly
V LED Bulb
Nut
x 5
Released Date: 2020-07-27
