WSF WOPF-1 Series Installation & Operation Manual

WSF WOPF-1 Series Installation & Operation Manual

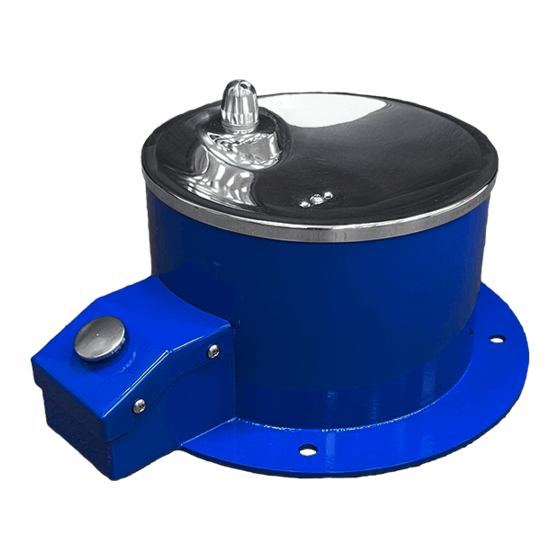

Outdoor pet drinking fountain

Advertisement

Quick Links

WOPF-1
Rev. 2/2022
Operation Manual
WOPF-1 Series
Outdoor Pet Drinking Fountain

Table of Contents

Pre-Installation Information �������������������������������������3
Physical Dimensions ����������������������������������������������4
Rough-In Dimensions ���������������������������������������������5
Required Installation Supplies �������������������������������� 6
Hardware Identification Chart ��������������������������������� 7
Installation Instructions ���������������������������������������������
Step 1: Fixture Installation ��������������������������������� 8
Step 2: Adjusting Drinking Spout Flow ��������������� 9
Care and Maintenance �����������������������������������������10
Troubleshooting ���������������������������������������������������� 11
Detail Drawings ��������������������������������������������������������
General Dimensions �����������������������������������������12
Exploded View w/BOM �������������������������������������13
Rough-in Dimensions ���������������������������������������14
Warranty ���������������������������������������������������������������15
Willoughby Stainless Fountains
5105 West 78th Street
Indianapolis, IN 46268
Toll Free:
(800) 428-4065
Local:
(317) 875-0830
Fax:
(317) 875-0837
www.willoughbystainlessfountains.com
Installation &
MADE IN THE U.S.A.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WOPF-1 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for WSF WOPF-1 Series

  • Page 1: Table Of Contents

    Installation & Operation Manual WOPF-1 Series Outdoor Pet Drinking Fountain Table of Contents Pre-Installation Information �������������������������������������3 Physical Dimensions ����������������������������������������������4 Rough-In Dimensions ���������������������������������������������5 WOPF-1 Required Installation Supplies �������������������������������� 6 Hardware Identification Chart ��������������������������������� 7 Installation Instructions ��������������������������������������������� Step 1: Fixture Installation ��������������������������������� 8 Step 2: Adjusting Drinking Spout Flow ���������������...
  • Page 2 (Page intentionally left blank) Outdoor Pet Drinking Fountain Installation & Operation Manual WODF-1-PET Series (Page intentionally left blank) Willoughby Stainless Fountains TOLL FREE (800) 428-4065 ● LOCAL (317) 875-0830 ● FAX (317) 875-0837 Rev. 2/2022 www.willoughbystainlessfountains.com Page 2...
  • Page 3: Pre-Installation Information

    When installing the Willoughby Industries’ WAW, WAF, or WWF series When installing the Willoughby Stainless Fountains' WOPF-1 Series fountain system: washfountains or lavatory deck systems: Before Step 1 of the installation instructions, ensure that rough-ins are in the correct location�...
  • Page 4: Physical Dimensions

    Physical Dimensions- WOPF-1 Outdoor Pet Drinking Fountain Installation & Operation Manual WODF-1-PET Series Physical Dimensions- WOPF-1 12-1/2" BOLT CIRCLE 9/16" THRU ALL 14-1/2" 3-13/16" 16-3/4" 8-1/8" 7" 3-3/4" 25.00° 10-3/4" Willoughby Stainless Fountains TOLL FREE (800) 428-4065 ● LOCAL (317) 875-0830 ● FAX (317) 875-0837 Rev.
  • Page 5: Rough-In Dimensions

    Rough-In Dimensions WOPF-1 Outdoor Pet Drinking Fountain Installation & Operation Manual WODF-1-PET Series Rough-In Dimensions WOPF-1 14-1/2" 9/16" THRU ALL 12-1/2" BOLT CIRCLE NOTE: UNIT MUST BE DISCONNECTED AND DRAINED DURING WINTERIZATION, PER THE FOLLOWING RECOMMENDED VALVE ASSEMBLY DETAIL PRACTICES: •...
  • Page 6: Required Installation Supplies

    Plumbers putty WARNING: Willoughby Stainless Fountains does not assume any responsibility for personal injury or damage to equipment due to an improperly installed WOPF-1 Series Fountain Willoughby Stainless Fountains TOLL FREE (800) 428-4065 ● LOCAL (317) 875-0830 ● FAX (317) 875-0837 Rev.
  • Page 7: Hardware Identification Chart

    Hardware Identification Chart Outdoor Pet Drinking Fountain Installation & Operation Manual WODF-1-PET Series Hardware Identification Chart 1/4-20 x 1/2" 1/4"-20 x 1/2" SECURITY SCREW PHILLIPS SCREW 4500NSS 800144 1/4"-20 x 2" 6-32 x 1/4" FLAT HEAD SECURITY SCREW SOCKET HEAD CAP SCREW 4509SSN 800157 3/4"...
  • Page 8: Installation Instructions

    Installation Instructions Outdoor Pet Drinking Fountain Installation & Operation Manual WODF-1-PET Series Installation Instructions Step 1: Fixture Installation Note: the WOPF-1 outdoor fountain is to be mounted on a flat, level surface (concrete or otherwise) with an adequate support structure. Note: refer to Rough-In Dimensions for locating plumbing connections. 1�) Install service shut-off valve in water supply line (valve not furnished). 2�) Locate and install drinking fountain using 1/2"-13 x 4" stainless steel concrete anchors (anchors not furnished)�...
  • Page 9: Step 2: Adjusting Drinking Spout Flow

    Installation Instructions Outdoor Pet Drinking Fountain Installation & Operation Manual WODF-1-PET Series Installation Instructions (cont.) Step 2: Adjusting Drinking Spout Flow VALVE BOX COVER w/ PUSHBUTTON SPRING STANDARD SCREWDRIVER (FLAT-HEAD) VALVE BOX SCREWS Adjusting flow with screwdriver Removing valve box cover 1�) Remove valve box screws� 2�) Remove valve box cover and push button (together)�...
  • Page 10: Care And Maintenance

    Care and Maintenance Outdoor Pet Drinking Fountain Installation & Operation Manual WODF-1-PET Series Care and Maintenance Unit Care Willoughby Stainless Fountains’ WODF Outdoor Drinking Fountains are not freeze resistant. The unit should be disconnected or shut off from the water supply and drained during the colder months. For more information, refer to the rough-in detail.
  • Page 11: Troubleshooting

    Troubleshooting Outdoor Pet Drinking Fountain Installation & Operation Manual WODF-1-PET Series Troubleshooting I� Insufficient Flow A� Ensure the service shut-off valve is fully open (provided by installer). B� Ensure water supply is within the normal operating range of 40-60 psi� 1�...
  • Page 12: General Dimensions

    Care and Maintenance Outdoor Pet Drinking Fountain Installation & Operation Manual WODF-1-PET Series Willoughby Stainless Fountains TOLL FREE (800) 428-4065 ● LOCAL (317) 875-0830 ● FAX (317) 875-0837 Rev. 2/2022 www.willoughbystainlessfountains.com Page 12...
  • Page 13: Exploded View W/Bom

    Care and Maintenance Outdoor Pet Drinking Fountain Installation & Operation Manual WODF-1-PET Series Willoughby Stainless Fountains TOLL FREE (800) 428-4065 ● LOCAL (317) 875-0830 ● FAX (317) 875-0837 Rev. 2/2022 www.willoughbystainlessfountains.com Page 13...
  • Page 14: Rough-In Dimensions

    Care and Maintenance Outdoor Pet Drinking Fountain Installation & Operation Manual WODF-1-PET Series Willoughby Stainless Fountains TOLL FREE (800) 428-4065 ● LOCAL (317) 875-0830 ● FAX (317) 875-0837 Rev. 2/2022 www.willoughbystainlessfountains.com Page 14...
  • Page 15: Warranty

    Warranty Outdoor Pet Drinking Fountain Installation & Operation Manual WODF-1-PET Series Warranty Willoughby Industries, Inc. warrants to commercial and institutional purchasers only that each unit will be free from defects in workmanship and materials under normal use and service upon the following terms and conditions for a period of one (1) year from date of shipment.
