Section 200 – User Operation
Note that Section 200 is written as a User Guide, and therefore refers to the installer in
the third person — that is, as "the installer."
1.
M64 PHONE
The Medley M64 phone is equipped with a dial pad and with several types of feature
keys for performing certain functions: fixed keys, soft keys, and programmable keys. The
Medley M64 phone also as a speaker for hands-free conversation and a 64-character
Lcd Display that gives you the status of a call.
1.1
Keys
In addition to the dial pad, the Medley M64 phone has several types of feature keys:
Programmable Keys (explained in topic 3).
Fixed Keys
Medley™
®
© 1997 EXECUTONE
Information Systems, Inc.
11/5
3:22PM
FWD
PARK
Fixed Keys

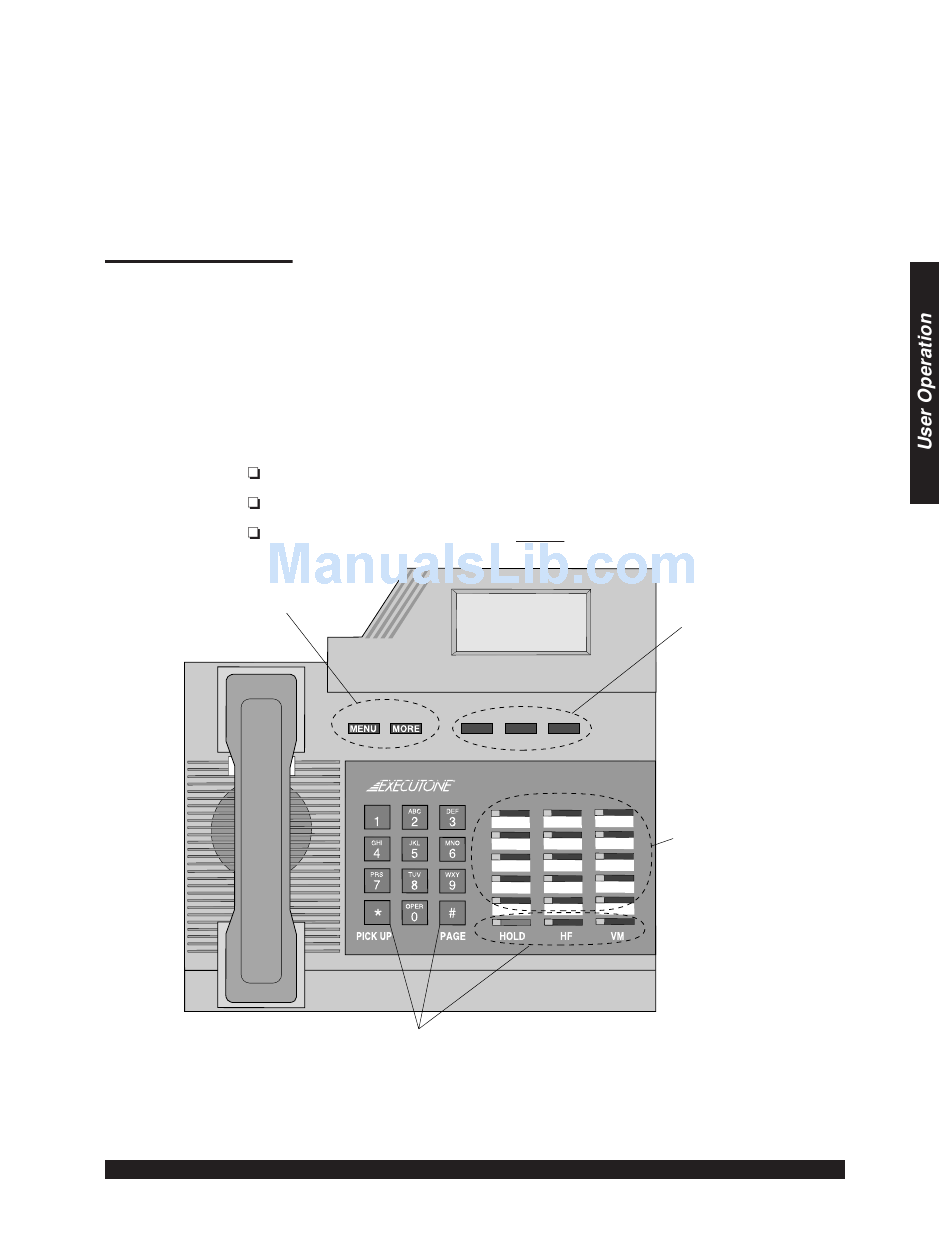

Figure 1. Medley™ M64 Phone Keypad
DND
Soft Keys
DND
Programmable
Keys
200 - 1
Advertisement
Table of Contents
