Summary of Contents for SMARSECUR WS-S8A

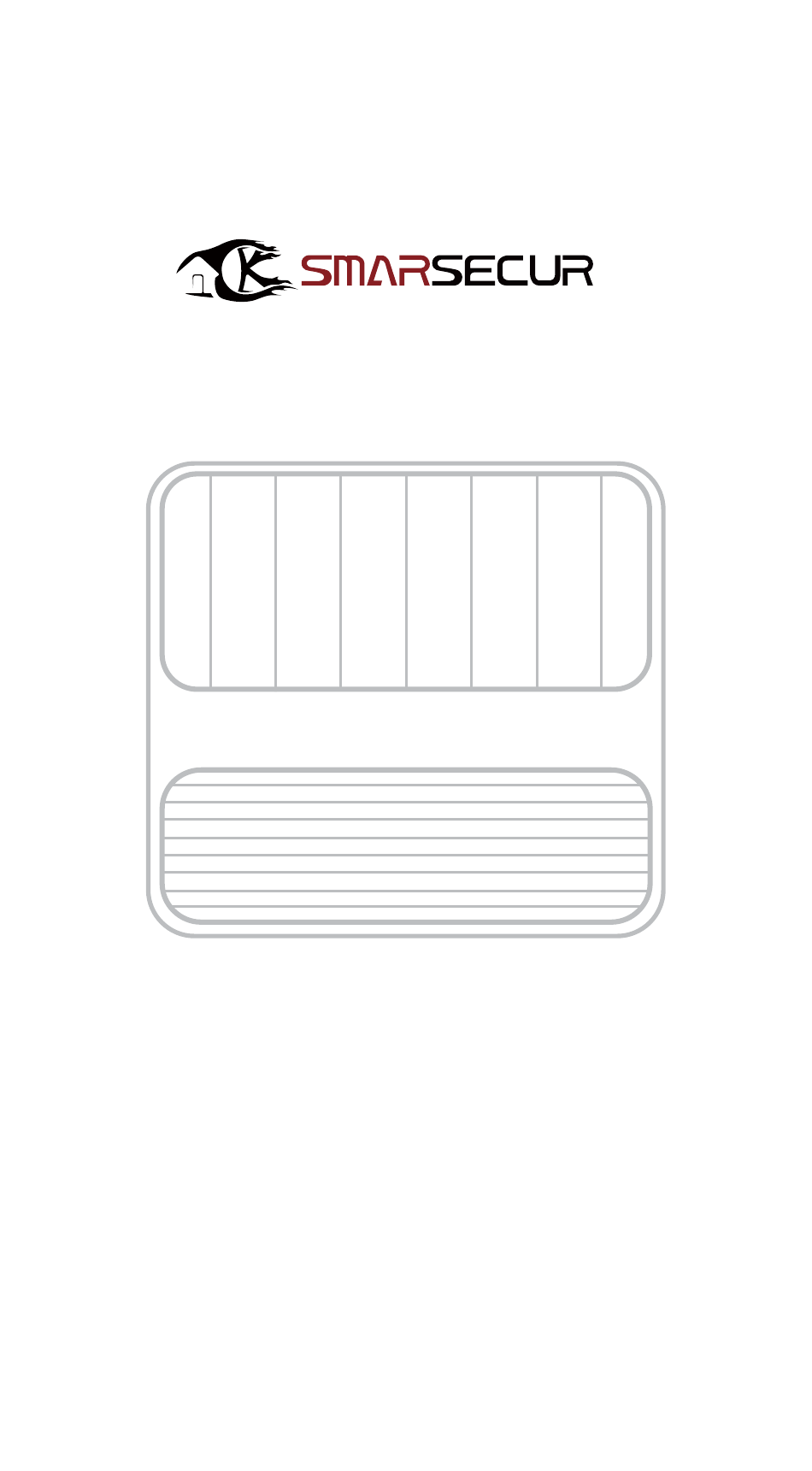

- Page 1 WS-S8A Solar Siren www.smarsecur.com...
-
Page 2: Box Content
Screws and anchors Documentation Presentation What is the WS-S8A? The WS-S8A is a Wireless Solar Siren compatible with SMARSECUR Secual alarm systems. Some advice before using your siren This siren features 2 tamper switches. If both one of them. Be careful when you open the siren (for setup) or when you remove it from a wall: the siren may ring out. - Page 3 Design Solar panel Tamper switch LEDs Side view Internal view Loudspeaker Tamper switch Connection Siren duration button Power switch...
- Page 4 Quick start guide Switch on the siren Open the case of the siren with a screwdriver and place the siren’s power switch on “ON”. The power switch is located under the silicone cover, inside the siren. Adjust the siren duration Place the switch inside the siren according to the...
- Page 5 Connect your siren to your control panel Press the Connection button for one second. The LEDs light up: the siren is now in connection mode for 20 seconds. Press “Arm” or “SOS” on your control panel (not on the remote control). You hear one beep: the siren is now connected to the control panel.
-
Page 6: Everyday Use
Everyday use When you arm the system The LEDs of the WS-S8A turn on for 4 seconds: the siren is armed. When you disarm the system The LEDs of the ES-S8A blink 6 times: the siren is disarmed. A piece of advice... -
Page 7: Advanced Setup
Advanced set up Change siren duration Open the case of the siren with a screwdriver and place the siren duration switch according to the duration you want (30 seconds, 1 minute, 3 minutes). Remark If the duration of the control panel’s siren is superior to the duration of the siren, the siren will stop ringing out with the control panel’s siren. - Page 8 Everyday use Arm the system. Press the “Arm” button of the remote control. The LEDs of the WS-S8A turn on for 4 seconds: the siren is armed. Disarm the system. Press the “Disarm” button of the remote control. The LEDs of the WS-S8A blink 6...
- Page 9 Radio frequency Volume 433 MHz (±75KHz) 100 dB (at 1m, with fully charged battery) Transmission distance 100 m (in open area) Housing material ABS plastic Power supply 1 solar panel Operating conditions 154.5 x 69.5 x 3.2 mm Temperature: 5V / 60 mA -10°C ~ +55°C Relative Humidity: ≤80% Battery...
