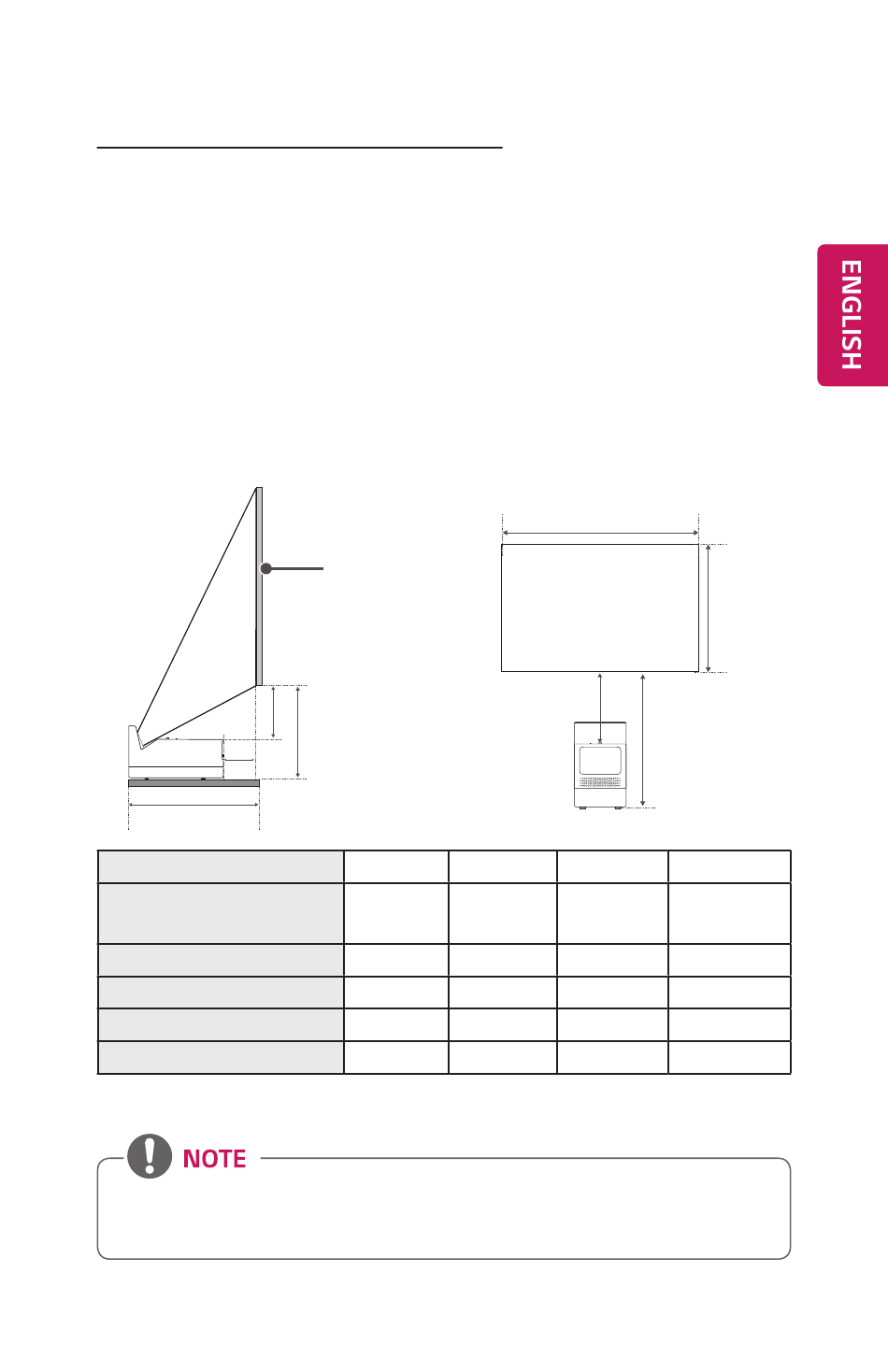

Projection Distance per Screen Size

1
Place the projector on a sturdy, level surface, together with the PC or audio/
video source.
2
Place the projector an appropriate distance away from the screen. The distance
between the projector and the screen determines the actual size of the image.
3
Position the projector so that the lens is at a right angle to the screen. If the
projector is not at a right angle, the projected image will look distorted. To
correct the distortion, use the Edge Adjustment function.
4
Connect the power cord of the projector and the connected device to the wall
outlet.
B
A
Screen Size [mm]
Horizontal Size (X) x
Vertical Size (Y) [mm]
A [mm]
B [mm]
C [mm]
D [mm]
The projection distance may vary depending on the installation conditions.
• If the projected image looks distorted or bent, check to see if the screen is
installed properly.
Ratio of upward projection: 125 %
Screen
C
D
2286
1992 x
1121
447
77
242
385
X
C
2540 2794
2214 x 2435 x
1245 1370
489 531
119 161
273 304
416 447
25
Y
D
3048
2657 x
1494
573
203
336
479
