- Page 1 LoRaWAN indoor gateway_OG857_User manual_V1.0.0 OG857 LoRaWAN Indoor Pico Gateway User Manual V1.0.0 Document Information Version Time Description Remark V1.0.0 2019-9-21 Preliminary version Mike Origo Electronic Co.,LTD. www.origoelec.com...
-
Page 2: Table Of Contents
LoRaWAN indoor gateway_OG857_User manual_V1.0.0 Table of Contents 1. General Description ............................- 2 - 2. Features ................................- 2 - 3. Mechanical and interfaces ..........................- 3 - 4. Specification ............................... - 4 - 5. Gateway config guide ..........................- 5 - 6. -
Page 3: General Description

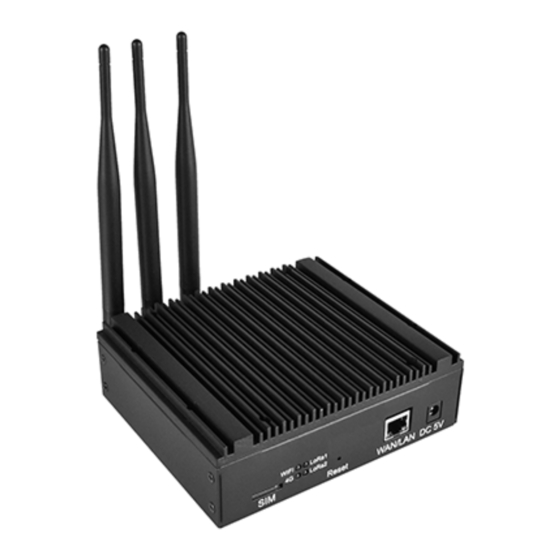

LoRaWAN indoor gateway_OG857_User manual_V1.0.0 General Description OG857 is designed to be a fully compliant LoRaWAN gateway, with WiFi and ethernet as the backhaul（4G Optional）. It includes one or two LoRa concentrator, which provides up to 16 programmable parallel demodulation paths. This gateway is perfectly designed for indoor public network extension or for ad-hoc indoor private coverage, like manufacturing, logistics or industrial sites requiring continuous connectivity for their IoT applications. -
Page 4: Mechanical And Interfaces
LoRaWAN indoor gateway_OG857_User manual_V1.0.0 3. Mechanical and interfaces 3.1 Mechanical Diagram Dimensions: 126*148*49 mm 3.2 LED indicator The following figure shows the LoRa gateway connectors and interfaces on the front and back panels. State Description Indicator Solid Green WIFI connected WIFI LED Blinking Blinking 1s during data transmission... -
Page 5: Specification
LoRaWAN indoor gateway_OG857_User manual_V1.0.0 Blinking Blinking 1s during data transmission Solid Red Power on Power LED Power off Table 3.2 LED indicator 3.3 Buttons and Interfaces Description Remark Button/interface Power button With red led indicator Reset button Long press 5S to reset the device SIM card slot Insert 4G SIM card DC IN 5V... -
Page 6: Gateway Config Guide
LoRaWAN indoor gateway_OG857_User manual_V1.0.0 5. Gateway config guide 5.1 Power on Power on the device and connect the LAN port 5.2 Config Internet protocol TCP/IPv4 Control Panel→Network&internet→networking properties→TCP/IPv4. Change computer access IP to fixed IP: 192.168.15.1 - 5 -... - Page 7 LoRaWAN indoor gateway_OG857_User manual_V1.0.0 5.3 Login the server After the gateway is powered on for 2 minutes , enter the following address in Google Chrome. 192.168.15.1 Login with your user name and password. (User name: admin, Password: Admin17) 5.4 Change Password Click User→Password→Type new password→Confirm→Save →Refresh the page 5.5 Network config 5.5.1 View network status...
- Page 8 LoRaWAN indoor gateway_OG857_User manual_V1.0.0 5.5.2 Connect to a wireless network Click Network→Wireless→Scan→Choose the wireless network you want to join→Add - 7 -...
- Page 9 LoRaWAN indoor gateway_OG857_User manual_V1.0.0 5.6 LoRa Config 5.6.1 Server address setting 5.6.2 Gateway parameters setting - 8 -...
-
Page 10: Installation
10000 All wireless network cleared 6. Installation OG857 series gateway has 2 instllation methods: 6.1 Desktop Put the gateway on a flat surface such as the top of a table, then adjust antenna direction accordingly, which is suitable for temporary demonstration and debugging. - Page 11 LoRaWAN indoor gateway_OG857_User manual_V1.0.0 screws will be drilled. Step 2 :Drill hales in the wall and plug in plastic extension pipes, then place the gateway bracket onto the marked location with holes aligned. Step3:Tighten the screw. Place gateway into bracket Step1: Connect 4G /LoRa/WIFI antennas Step2: Connect power adapter, put the SIM card into the slot, or connect the Ethernet cable.
-
Page 12: Packing List
LoRaWAN indoor gateway_OG857_User manual_V1.0.0 7. Packing List Item QTY(PCS) Remark OG857 gateway Power Code EU/US/CH standards optional Ethernet cable WIFI/4G antenna LoRa antenna Wall mount bracket User manual Warranty card Gift box package, G.W:1.7KG, Dimensions: 350*300*100mm - 11 -...
