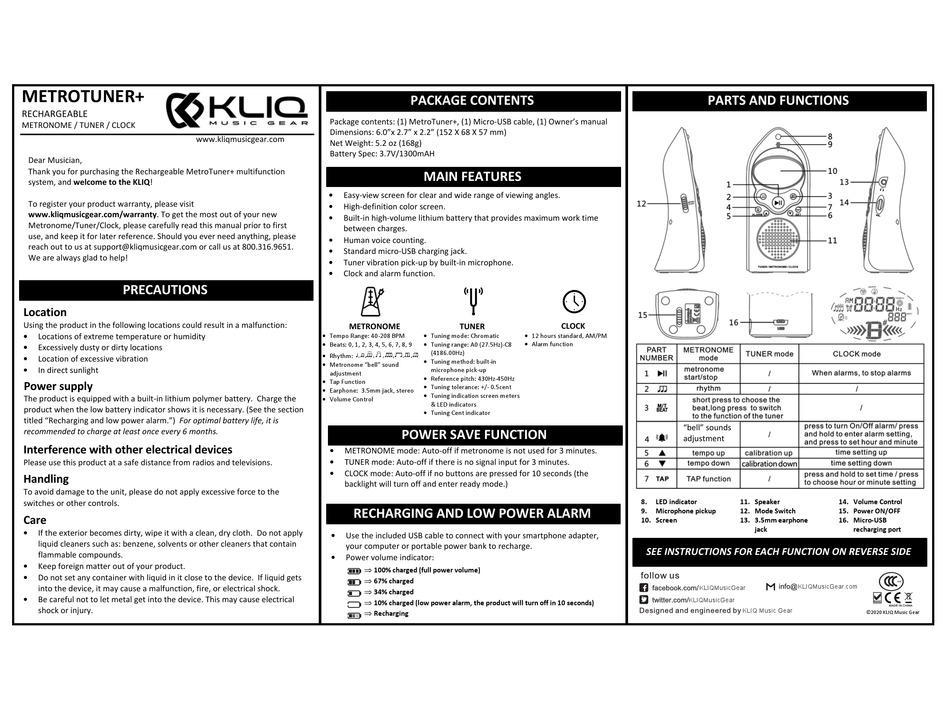

KLIQ METROTUNER+ Quick Start Manual

METROTUNER+
RECHARGEABLE
METRONOME / TUNER / CLOCK
www.kliqmusicgear.com
Dear Musician,
Thank you for purchasing the Rechargeable MetroTuner+ multifunction
system, and welcome to the KLIQ!
To register your product warranty, please visit
www.kliqmusicgear.com/warranty. To get the most out of your new
Metronome/Tuner/Clock, please carefully read this manual prior to first
use, and keep it for later reference. Should you ever need anything, please
reach out to us at support@kliqmusicgear.com or call us at 800.316.9651.
We are always glad to help!
PRECAUTIONS
Location
Using the product in the following locations could result in a malfunction:
• Locations of extreme temperature or humidity
• Excessively dusty or dirty locations
•
Location of excessive vibration
•
In direct sunlight
Power supply
The product is equipped with a built-in lithium polymer battery. Charge the
product when the low battery indicator shows it is necessary. (See the section
titled "Recharging and low power alarm.") For optimal battery life, it is
recommended to charge at least once every 6 months.
Interference with other electrical devices
Please use this product at a safe distance from radios and televisions.
Handling
To avoid damage to the unit, please do not apply excessive force to the
switches or other controls.
Care
• If the exterior becomes dirty, wipe it with a clean, dry cloth. Do not apply
liquid cleaners such as: benzene, solvents or other cleaners that contain
flammable compounds.
• Keep foreign matter out of your product.
• Do not set any container with liquid in it close to the device. If liquid gets
into the device, it may cause a malfunction, fire, or electrical shock.
• Be careful not to let metal get into the device. This may cause electrical
shock or injury.
PACKAGE CONTENTS
Package contents: (1) MetroTuner+, (1) Micro-USB cable, (1) Owner's manual
Dimensions: 6.0"x 2.7" x 2.2" (152 X 68 X 57 mm)
Net Weight: 5.2 oz (168g)
Battery Spec: 3.7V/1300mAH
MAIN FEATURES
•
Easy-view screen for clear and wide range of viewing angles.
• High-definition color screen.
• Built-in high-volume lithium battery that provides maximum work time
between charges.
•
Human voice counting.
•
Standard micro-USB charging jack.
• Tuner vibration pick-up by built-in microphone.
• Clock and alarm function.
METRONOME TUNER
• Tempo Range: 40-208 BPM • Tuning mode: Chromatic
• Beats: 0, 1, 2, 3, 4, 5, 6, 7, 8, 9 • Tuning range: A0 (27.5Hz)-C8
ç
(4186.00Hz)
• Rhythm:
• Tuning method: built-in
• Metronome "bell" sound
microphone pick-up
adjustment
• Reference pitch: 430Hz-450Hz
• Tap Function
• Tuning tolerance: +/- 0.5cent
• Earphone: 3.5mm jack, stereo
• Tuning indication screen meters
• Volume Control
& LED indicators
• Tuning Cent indicator
POWER SAVE FUNCTION
•
METRONOME mode: Auto-off if metronome is not used for 3 minutes.
•
TUNER mode: Auto-off if there is no signal input for 3 minutes.
• CLOCK mode: Auto-off if no buttons are pressed for 10 seconds (the
backlight will turn off and enter ready mode.)
RECHARGING AND LOW POWER ALARM
• Use the included USB cable to connect with your smartphone adapter,
your computer or portable power bank to recharge.
•
Power volume indicator:
Þ 100% charged (full power volume)
Þ 67% charged
Þ 34% charged
Þ 10% charged (low power alarm, the product will turn off in 10 seconds)
Þ Recharging
CLOCK
• 12 hours standard, AM/PM
• Alarm function
"bell" sounds
adjustment
8. LED indicator
9. Microphone pickup
10. Screen
SEE INSTRUCTIONS FOR EACH FUNCTION ON REVERSE SIDE
KLIQMusicGear
KLIQMusicGear

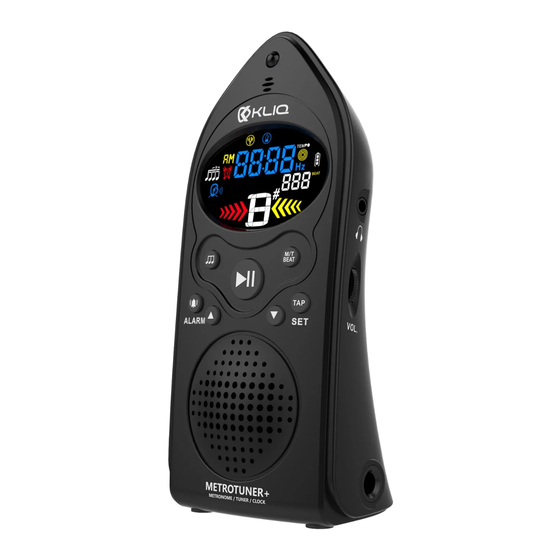

PARTS AND FUNCTIONS
ç
11. Speaker 14. Volume Control
12. Mode Switch 15. Power ON/OFF
13. 3.5mm earphone 16. Micro-USB
jack recharging port
KLIQMusicGear.com
KLIQ Music Gear
©2020 KLIQ Music Gear
