WIRELESS VEHICLE DETECTION AT ITS BEST!!!
Page(s)
Content
DA-600 and DA-605 Control Panel/Receiver Installation Guide
2-3
4-6
Sensor/Transmitter Installation Guide
7
Installation Tips
8
Hooking Up Other Equipment to your Control Panel/Receiver
9
Accessories
10
Long Range Installations
11
Supplemental Specifications
12
Troubleshooting
13
Technical Support Information and Warranty
3
2
3
800-473-0213
~

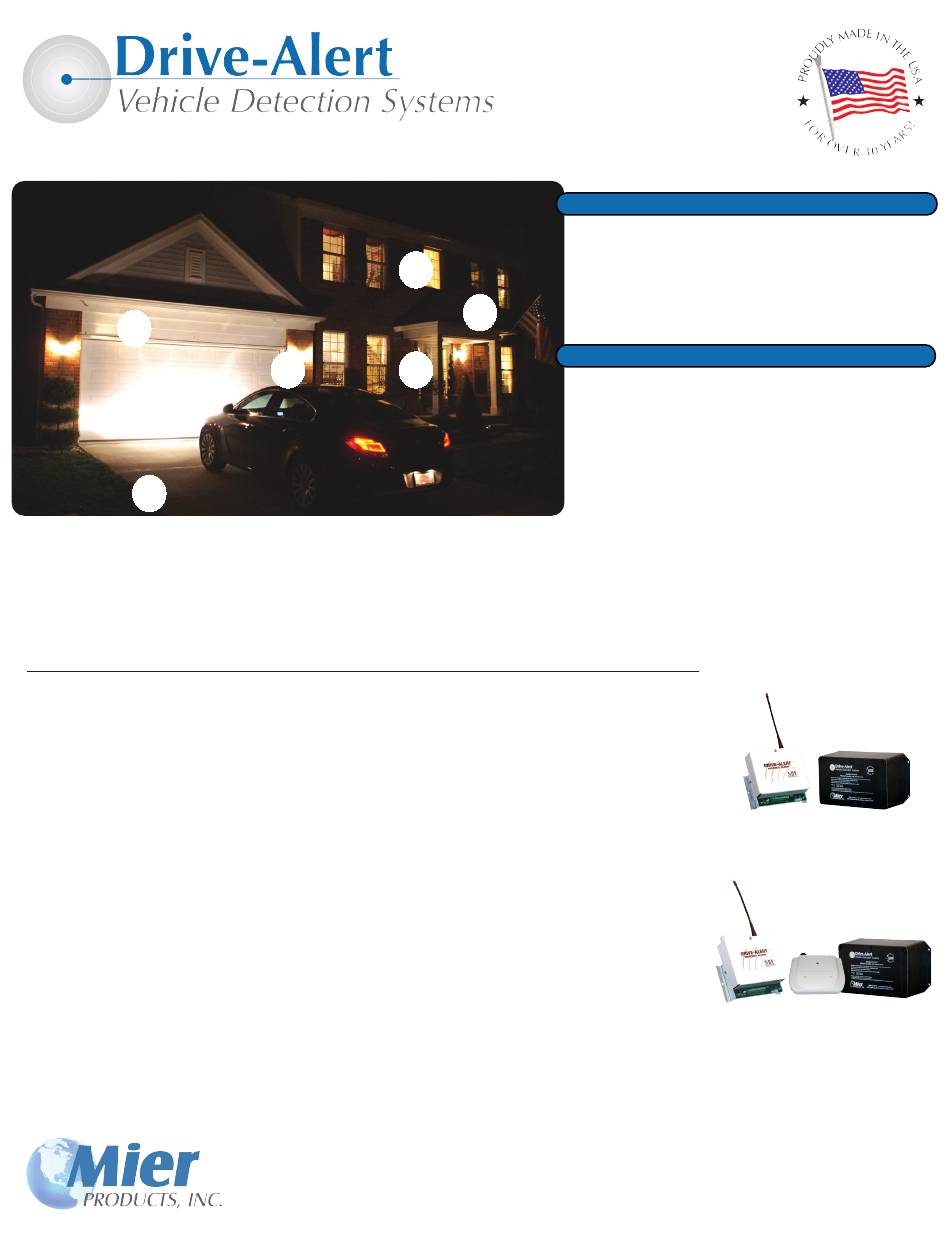

THE BASICS
1) A sensor(s) detect(s) a vehicle entering monitored
area(s) .
2) A control panel up to 1000 feet away receives a
signal from the sensor and triggers an alert inside
4
the home or business (booster antenna increases
range to 3/4-mile)
MORE OPTIONS
3) Add remote plug-in chimes in the front room,
basement, upstairs, back yard, by the pool, or in
other buildings
4) Add a Timer Control to turn on outdoor and in
door lights to warn strangers or welcome friends
5) Activate video surveillance to record activity and
display the driveway on a monitor
6) Activate signs, gates, alarm panels or other
equipment
7) Add a repeater to send the signal another 1000'
to rrigger additional alerts in out buildings, or
add a booster-antenna for buildings up 3/4-mile
away
info@mierproducts.com
DA-600
DA-605
~
www.mierproducts.com
600/605-Q22021
Advertisement
Related Manuals for Mier products Drive-Alert DA-605
Summary of Contents for Mier products Drive-Alert DA-605
- Page 1 THE BASICS 1) A sensor(s) detect(s) a vehicle entering monitored area(s) . 2) A control panel up to 1000 feet away receives a signal from the sensor and triggers an alert inside the home or business (booster antenna increases range to 3/4-mile) MORE OPTIONS 3) Add remote plug-in chimes in the front room, basement, upstairs, back yard, by the pool, or in...
- Page 2 Wireless DA-600 and DA-605 Drive-Alert Control Panel Installation Guide The Mier Products’ Wireless Drive-Alert Detection Systems give you the benefit of easy and economical wireless installation. These Systems includes 4 components: Control Panel/Receiver with Additional Form C Dry Contacts DA-600...
- Page 3 Wireless DA-600 and DA-605 Drive-Alert Control Panel Installation Guide The DA-600 Drive-Alert has an internal piezo electric whistle inside the Control Panel as the audible-alert. The whistle may be switched off if desired. The whistle and the whistle switch can be seen on the top of the DA-600 Control Panel. DA-600 Control Panel front view top view The DA-605 Drive-Alert’s Control Panel/Receiver board is the same as the DA-600.
- Page 4 Wireless Drive-Alert Sensor/Transmitter Installation Guide DA-610TO Mier Products’ Wireless Drive-Alert Sensor/Transmitters detect changes in the magnetic field (movement of metal) within 14 feet in every direction, based on a sedan traveling 5mph. Therefore, they will not false-alarm from animals, wind, rain, etc. The Transmitter boards are epoxied and encased in a durable, weather-sealed, box for worry free weather and corrosion protection.
- Page 5 Wireless Drive-Alert Sensor/Transmitter Installation Guide DA-610TO DA-611TO DA-612TO The Sensor/Probe portion of a DA-610TO, DA-611TO or DA-612TO senses the vehicle and should to be placed less than 3 feet of Zone/area you wish to monitor moving vehicles or assets (the closer the better). The Transmitter portion contains the electronics inside the black box.
- Page 6 Wireless Drive-Alert Sensor/Transmitter Installation Guide If occasional false alarms occur, or you are not detecting some vehicles, you can try re-locating the Sensor, or you can reduce the Sensor Sensitivity. There is a small blue sensitivity pot on the electrical board. Maximum sensitivity adjustment is clockwise and minimum is counter-clockwise (note arrow direction).
- Page 7 DA-600 and DA-605 Installation Tips • Check to make sure the Power Light is on. If not, call Mier to check the 1 Amp fuse. • To test the low battery function it is neccessary to install batteries that equal 2.5 volts or lower into the black outdoor Sensor/ Transmitter box to activate the word data bit to be detected by the white indoor Control Panel •...
- Page 8 Wireless Drive-Alert Control Panel Terminals and Hooking Up Other Equipment The terminal block, TB1, provides a convenient wire connection point for external device control and test points. NOTE: All external devices must be rated at 24 VDC The DA-600/DA-605 terminals on the bottom left of the Control Panel’s green PCB, with the “Alert” and “Power” LEDs to the right •...
- Page 9 Accessories WIRELESS DRIVE-ALERT ACCESSORIES: DA-066MP DA-078 DA-100CP DA-REPEATER DA-606 DA-071 DA-072 DA-073 DA-ROCK1 • The DA-066MP Remote Chime Transmitter is used in combination with the wireless DA-078 Remote Plug-in Chime(s) in applications where more chimes are wanted in more rooms/areas. Unlimited quantities may be used. •...
- Page 10 Long Range Drive-Alert Installations The DA-660 Reception Booster Antenna is perfect when monitoring remote buildings or equipment: This antenna is used to increase the standard reception distance of 1000-feet, to up to 3/4-mile from the Sensor/Transmitter to the Control Panel/Receiver. Simply unscrew the standard antenna on the DA-700 Control Panel or DA-100 Control Panel and 75ohm coaxial cable, RG6, to the F Connectors on the Control Panel and the DA-660 Reception Booster Antenna.
-
Page 11: Supplemental Specifications
(1) This device may not cause harmful interference (2) This device must accept any interference received, including interference that may cause undesired operation. Any changes not expressly authorized by Mier Products, Inc. may void the user’s authority to operate this equipment. IC ID: 5583ADA-066MP Cet appareil est conforme a des reglements d’industrie Canada exempts de license standard RSS (s). - Page 12 Wireless Drive-Alert Troubleshooting Trees Step 1 - Check to make sure the Power Light is on. If not, replace the internal 1A fuse, or send to Mier Products for repair. Step 2 - Make sure the Control Panel is mounted in an above ground area where its antenna can receive a good signal from the Sensor/Transmitter, and make sure the Sensor/Transmitter is in a position free where it can send a signal freely.
- Page 13 Mier Products, Inc.’s Limited Warranty Program for Drive-Alert Series of Vehicle Detection Systems and Drive-Alert Accessories protects the original owner for one year from the date of purchase against defects in original parts or workmanship. Mier Products, Inc. agrees to repair or replace parts (Mier’s option) that are deemed defective by our Quality Control Team, without charge for parts or labor, if the defective unit is returned prepaid to Mier Products, Inc., Kokomo, IN, within the one-year period.
