La Crosse Technology 616-1412v4 Quick Start Manual

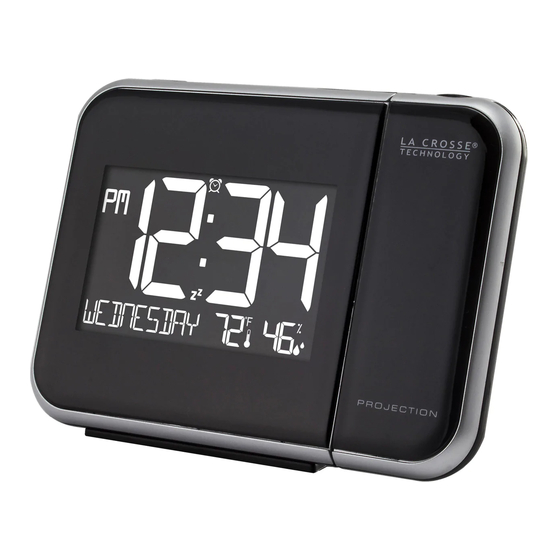

Projection Alarm Clock with
Indoor Temperature/Humidity & Backlight
Model: 616-1412v4
DC:033021
Full manual can be found under the Support tab here:
POW ER U P
1. Insert the stand into bottom of clock.
2. Insert the 5 volt power cord into an outlet, then into your
clock. Optional: Install 2-AAA batteries into your clock.
S ET T INGS
1. Hold then release the SET button to enter the Settings Menu.
2. Press and release the + or - buttons to adjust the values.
Hold to adjust quickly.
3. Press and release the SET button to confirm and move to the
next item.
Time set order:
• 12/24 hour time • Hour • Minutes • Year • Month • Date
• Fahrenheit/Celsius
Note: Weekday will set automatically when Year, Month, and date
are set.
bit.ly/laxtech_support
AAA
AAA
Stand
Page 2
P R OJE CT I O N
Rotate Projection:
• Press and release the PROJECTION
button to rotate the image.
• The projected image can be rotated
in 90 degree increments.
Focus Projection:
• Use the Focus Wheel on the back
of your projection arm to provide
a clear projection image.
Note: Power cord use is required for
constant projection.
ADJ USTAB LE BAC K L I G H T
• Power Cord: Backlight and projection are on constantly.
Press SNOOZE/LIGHT to adjust the backlight:
High-Medium-Low-OFF.
• Batteries only: Press the SNOOZE/LIGHT button for a 10
second backlight and projection.
Page 3
