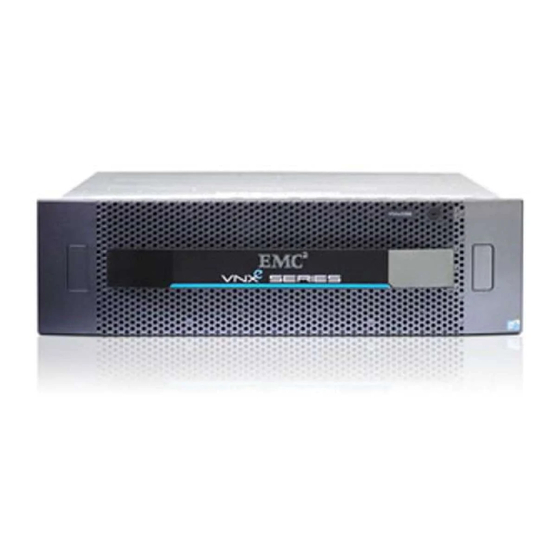

VNXe3300™
Replacing a VNXe3300 Memory Module
Before you start
Before you begin the replacement procedure, make sure you have correctly identified the faulted part,
and that a replacement memory module (DIMM) is available. Refer to your EMC VNXe™ online help
Servicing your system >Adding or replacing faulted hardware components > Replace a faulted
hardware component) for instructions on how to identify failures, order new parts, and handle
hardware components. Also, prepare your disk processor enclosure (DPE) for service as described
below.
Preparing your disk processor enclosure for service
IMPORTANT
To protect your VNXe system from accidental data loss while you remove and replace DPE
components, open Unisphere™ and select Settings, then Service System.
• Log in with your service password.
• In the System Components column, select the storage processor (A or B) associated with the
faulted component.
• Under Service Actions, select Enter Service Mode, then Execute service action.
The storage processor fault LED will flash alternating amber and blue while the SP remains in
Service Mode and is receiving active power.
Contents
This document provides instructions on the following tasks:
Task 1: Remove the storage processor (SP) assembly
Task 2: Remove the power supply
Task 3: Replace the memory module
Task 4: Replace the power supply
Task 5: Install the storage processor assembly
Task 6: Reboot the storage processor
Task 7: Verify the operation of the new module
Task 8: Return the faulted memory module
1/31/11
on page 2
on page 3
on page 4
on page 6
on page 7
on page 8
on page 8
on page 9
1
