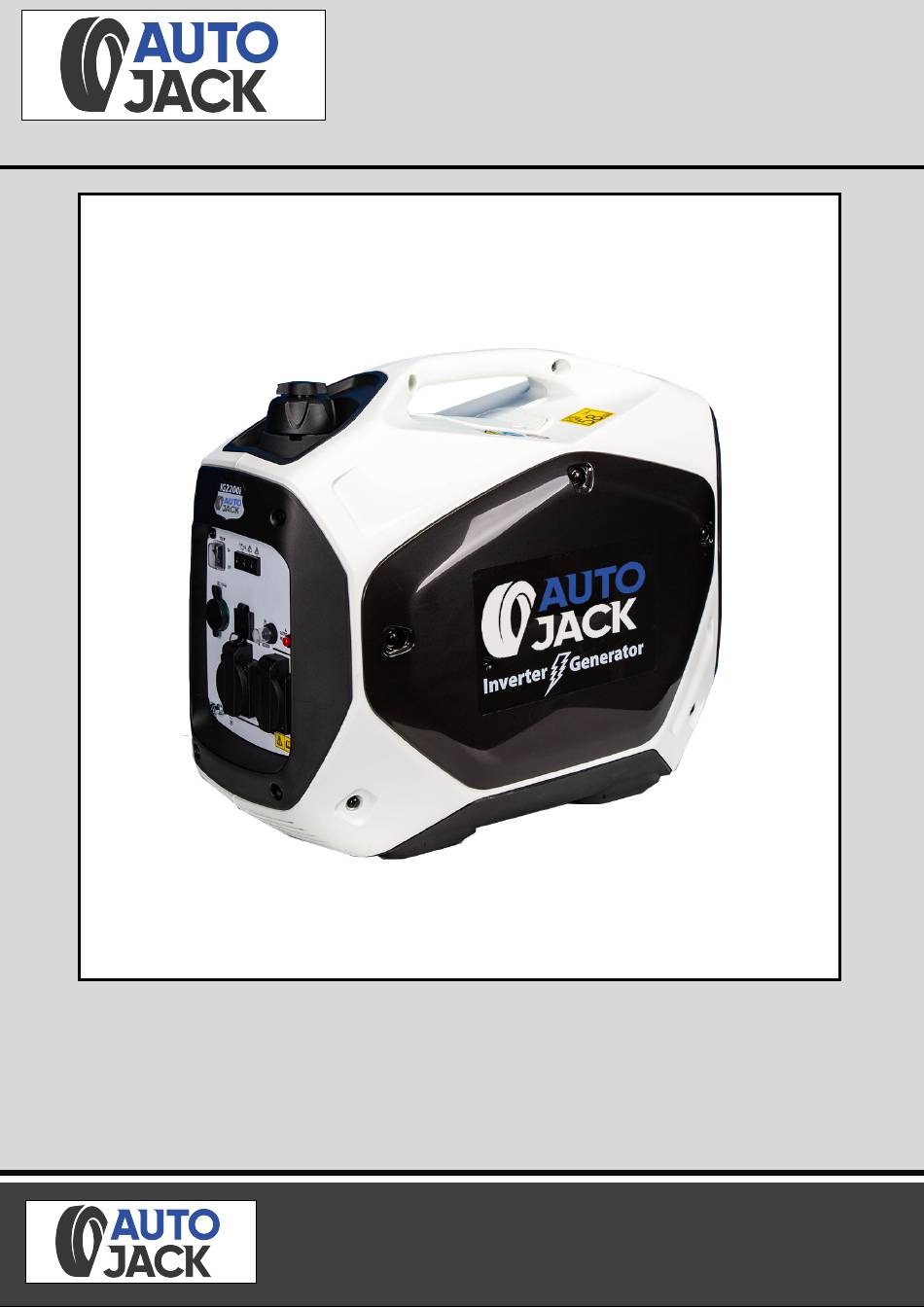

- Page 1 SAFETY AND OPERATING MANUAL 2000W Inverter Generator IG2200i ORIGINAL INSTRUCTIONS IG2200i...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Welcome to Autojack! Dear Customer, Congratulations on your purchase. Before using the product for the first time please be sure to read these instructions for use. They provide you with all information necessary for using the product safely and to ensure its long service life. -
Page 3: General Power Tool Safety Warnings
A wrench or a key left c) Do not expose power tools to rain or wet conditions. Water entering a power tool will attached to a rotating part of the power tool may increase the risk of electric shock. result in personal injury. IG2200i... - Page 4 Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users. IG2200i...
- Page 5 Under these conditio ns, adequate ventilation MUST be provided. k).Never operate the generator with wet hands l).Never use water or any other liquids to clean the gene rator. m).Make sure you ground (earth) the generator. IG2200i...
-
Page 6: Symbols & Cable Rating Chart
SYMBOLS AND POWER RATING CHART Danger! – Read the operating Caution! Wear safety goggles. instructions to reduce the risk of injury. Caution! Wear ear defenders. The impact of noise can cause damage to hearing. IG2200i... -
Page 7: Machine Details And Product Features
17. DC 12V output 18. USB output 19. Parallel outlets Pack age Contents: 20. Ground (earth) terminal Inverte r Generator 21. AC receptacle 12Volt Connecting Lead Assembly 22. DC protector Spark P lug Box Spanner 23. Output reset Cross-Head Screwdriver IG2200i... - Page 8 MACHINE DETAILS AND PRODUCT FEATURES IG2200i...
-
Page 9: Assembly
12mm d iameter, a minimum length of 200mm and with a n M6 machine screw one end. The cable used should be a maximum length of 1 metre and a minimum of 1.0mm to carry a 10 amp load. IG2200i... - Page 10 AC output when DC circuit protector turn off. the generator stops AC output under overload protect. NOTE: Please reduce the load of the generator to ensure that the total load is within the rated power. IG2200i...
- Page 11 - Do not fill above the top of the fuel filter or it may over flow when the fuel heats up later and expands. - Wipe o ff spilt fuel thoroughly before starting engine. IG2200i...
- Page 12 90% of the total of two generator’s rated output. - To shut down. Disconnect the electric device fi rstly, and stop the two generators, disconnect ct the special cable at the end. - Don’t co connect or disconnect the special cable when the generators are running. IG2200i...
-
Page 13: Operation
After starting, allow the starter handle to return to its original position while still holding the handle. Grasp the carrying handle firmly to prevent the generator from falling over when pulling the recoil starter. IG2200i... - Page 14 (c)Check for blockages in the cooling air inlet and around the control unit. If any blockages are CAUTION: Be sure the electric apparatus is found, remove. turned off before plugging in. (d)After checking, restart the engine. Be sure the total load is within generator rated output. IG2200i...
- Page 15 (b) Disconnect the leads for the battery. Be sure the economy control switch is turned OFF while charging the battery. (c) Loosen the filler cap. (d) Fill distilled water to the upper limit, if the battery fluid is low level. IG2200i...
-
Page 16: Maintenance And Service
8.Install the cover and tighten the screw SAE 10W30 Recommended engine oil: ( API Service “ SJ” CAUTION: Be sure no foreign material enters the crankcase. Do not tilt the generator when adding engine oil. This could result in overfilling and damage to the engine IG2200i... - Page 17 2. Clean the filter with solvent. If damaged, replace. 3. Wipe the filter and insert it. ! WARNING Be sure the tank cap is tightened securely. CAUTION: The engine should never run without the element; excessive piston and/or cylinder wear may result. IG2200i...
- Page 18 MUFFLER SCREEN WARNING The engine and muffler will be very hot after the engine has been run. Avoid touching the engine and muffler while they are still hot with any part of your body or clothing during inspection or repair. IG2200i...
-
Page 19: Troubleshooting
(DC supply only) The DC Press the reset button overload protector has activated The generator is The air filter is dirty Clean the air filter difficult to start If this does not solve your problem, please contact the AUTOJACK service department. IG2200i... -
Page 20: Autojack Guarantee
In our experience many initial problems with machines that are thought to be fault due to faulty 1.2.3 If asked to do so by Autojack or its parts are actually solved by correct setting up or Authorised Dealer, you return the product at adjustment of the machine. - Page 21 Autojack. If you include a contact number with this it will speed your claim up. 2.4 Please note that it is essential that the letter of claim reaches Autojack on the last day of this guarantee at the latest. Late claims will not be considered.
-
Page 22: Declaration Of Conformity
Old Heath Road, Wolverhampton, WV1 2RP. Tel: 01902 450 470 Declares that the Inverter Generator (IG2200i) Is in compliance with the regulations included in the Directives:2014/30/EU EC DECLARATION OF CONFORMITY Certificate for EC-type examination delivered by Interk Testing Services Hangzhou 16 No. -
Page 23: Parts List/Parts Diagram
Screw M6×18 Countersunk Head Screw M3×5 Dual-Head Bolts M6×36 Limiting Board One-Way Valve Components Valve Plate stud M6*36 Dowel Pin 4×8 FIG.B CRANKSHAFT PISTON Description Piston Pin Clip Piston Piston Pin Connecting Rod Woodruff Key Piston Ring FIG.B CRANKSHAFT PISTON IG2200i... - Page 24 Parts Diagram FIG.A CRANKCASE ASSY IG2200i...
- Page 25 +Decompression of the pin +Torsional spring +Cover for cam Camshaft Upper Rocker Valve Spring Seat Valve Spring Intake Valve Exhaust Valve FIG.D LUBRICATION SYSTEM Description Respiratory Tube Outlet Tube Pipe Hoop 9 Hexagon Flange Bolt M5×16 Deaerator O Ring IG2200i...
- Page 26 Hexagon Flange Bolts M5 Air Cleaner Bush Air Cleaner Assy. +Cover of Air Cleaner Assy. +Foam/sponge +Inner Hexagon Screw M6×12 Air Cleaner Gasket Choke Valve Air Cleaner Gasket Carburetor Gasket Insulation Board Components Insulation Gasket Tap Screw ST4.8×16-F.H FIG.F ARBURETOR Description Carburator IG2200i...
- Page 27 Oil Filler Hole Airproof Pad Inner Hexagon Screw M6×12 Air Guide Sleeve A Fan Volute Air Guide Sleeve B Hexagon Flange Nut M5 Tap Screw ST4.8×16-F.H Hexagon Flange Bolts M5×25 Rubber Cover Recoil Starter Parts Cooling Fan Hexagon Flange Bolts M6×12 Starting Hub IG2200i...
- Page 28 Parts List /Parts Diagram FIG.H MUFFLER Description Description Bolt M6×50 Muffler Pipe Gasket Bolt M6×80 Muffler Pipe Muffler Assy. Washer 6 Muffler Gasket Hexagon Flange Nut M6 IG2200i...
- Page 29 Parts List /Parts Diagram FIG.I GENERATOR Description Description Stator 2.0KW 420V 580Hz + bushing Hexagon Flange Bolts M5×12 Tap Screw ST4.8×25-F.H Washer 5 Ignition Coil Hexagon Flange Bolts M5×30 Spark Plug A5RTC Rotor Ignition Coil Cap Seal Hexagon Flange Nut M12×1.25 Trigger IG2200i...
- Page 30 Clamp ∅7 .5 Hose Fuel Pump Oil Tube Tap Screw GB/T845 ST4.2×13 GasketGB/T96 φ4 Tap Screw GB/T845 ST4.2×19 Micro switch Fuel Hose (5-10) -285 Engine Flame Out Line Fuel Hose (5-10) -90 Fuel Pump Stand Fuel Filter Fuel Lubricator IG2200i...
- Page 31 Parts List /Parts Diagram FIG.J FUEL TANK IG2200i...
- Page 32 Left Side Cover Panel Box Fuel Port plastic Snap Joint Nut M6 Right Cover of Shell Flange Lock Nut GB/T6187 φ5 Right Side Cover Screw M5×8 Oil Port Cover Plate Cable Ties Tap Screw GB/T845 Wire Harness ST4.8×9.5-F Edge Protection IG2200i...
- Page 33 Parts List /Parts Diagram FIG.K SHELL IG2200i...
- Page 34 Parts List /Parts Diagram FIG.L GOVERNOR Description Screw M3×8 Stepper Motor Assy. Screw M4×12 Stepper Motor Holder Drive Arm Stepper Motor Extension Cord FIG.M INVERTER Description Inverter 2.0kw 230V 50HZ Hexagon Flange Bolt M5X10 Inverter Gasket IG2200i...
- Page 35 Flange Bolt GB/16674 M5×16 Hexagon Flange Nut M5 Earth Sticker Flat Washer GB/T97 φ5 Panel Components Spring Washer GB/T93 φ5 Panel Sticker Hexagon Nut GB/T6170 M5 AC Socket Wire Harness Boat Switch DC Socket Wire Harness Water-Proof Cap of Boat Switch IG2200i...
