KNOW YOUR PRODUCT
MULTI
PURPOSE
MIXER
• 1600W HIGH POWER
• IDEAL FOR MIXING
CONCRETE, MORTAR,
PAINT & ADHESIVES
• 2 SPEED GEARBOX
FOR HIGH TORQUE
INSTRUCTION MANUAL
WARNING: Read all safety warnings and all instructions. Failure to follow the
warnings and instructions may result in electric shock, fire and/or serious injury.
Save all warnings and instructions for future reference.
1220
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Full Boar FBMD-1600
Summary of Contents for Full Boar FBMD-1600
- Page 1 KNOW YOUR PRODUCT MULTI PURPOSE MIXER • 1600W HIGH POWER • IDEAL FOR MIXING CONCRETE, MORTAR, PAINT & ADHESIVES • 2 SPEED GEARBOX FOR HIGH TORQUE INSTRUCTION MANUAL WARNING: Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.
-
Page 2: Specifications
SPECIFICATIONS - MODEL NO. FBMD-1600 Mains voltage: 220-240V ~50Hz Input power: 1600W 0 – 460min / 0 – 750min No load speed: Variable speeds: Gears: Soft start: Mixing paddle size: Ø133mm x 580mm Mixing paddle thread: M14 x 2.0mm Weight (tool only): 3.48kg... -
Page 3: Table Of Contents
TABLE OF CONTENTS SPECIFICATIONS............Page 02 KNOW YOUR PRODUCT........... Page 02 INTRODUCTION............Page 04 SAFETY INSTRUCTIONS........... Page 04 ASSEMBLY..............Page 08 OPERATION............... Page 09 MAINTENANCE............Page 11 TROUBLE SHOOTING ..........Page 12 DESCRIPTION OF SYMBOLS........Page 12 CONTENTS..............Page 13 WARRANTY.............. -
Page 4: Introduction

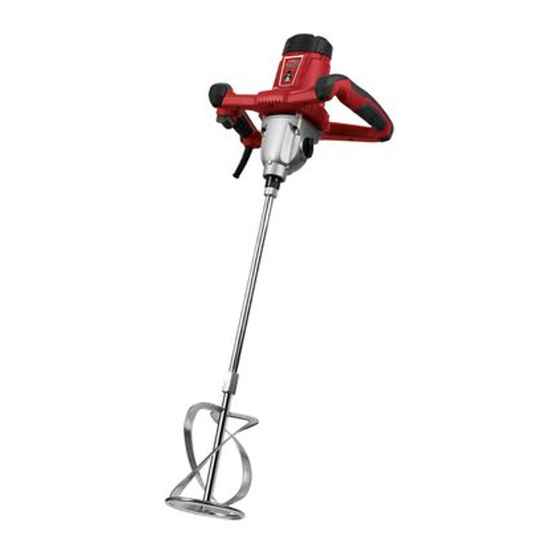

INTRODUCTION Congratulations on purchasing a Full Boar Multi Purpose Mixer. Your Full Boar Multi Purpose Mixer FBMD-1600 has been designed to mix various materials such as paint, mortar, adhesives and plaster into consistent batches as required for Read and understand the Owner’s Manual the end user. - Page 5 GENERAL POWER TOOL SAFETY WARNING WARNING! Read all safety warnings and instructions. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. The term “Power Tool” in all of the warnings listed below refers to your mains operated (corded) power tool or battery operated (cordless) power tool.
- Page 6 GENERAL POWER TOOL SAFETY WARNING 4. Power tool use and care a. Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed. b.
- Page 7 MULTI PURPOSE MIXER SAFETY WARNINGS Hold power tool by insulated gripping surfaces, when performing an operation where the accessory may contact hidden wiring or its own cord. Accessory contacting a “live” wire may make exposed metal parts of the power tool “live“ and could give the operator an electric shock. WARNING! This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person...
-
Page 8: Assembly
Assembling and fitting the mixing paddle The Full Boar FBMD-1600 comes with a mixing paddle that needs assembly before fitting to the multi purpose mixer. 1. Screw the mixing paddle (6) into the end of the mixing shaft (5) by rotating in a clockwise direction by hand (fig. -
Page 9: Operation
OPERATION WARNING! The power supply for this product should be protected by a residual current device (rated at 30mA or less). A residual current device reduces the risk of electric shock. On/off trigger Always firmly hold the tool by handles (1) during operations. The multi purpose mixer is fitted with a lock-off button (2) to avoid accidental start up. - Page 10 OPERATION Varying the speed he multi purpose mixer has a variable speed dial (7) with constant electronics and a gear selecting dial (8), which allows the mixer to obtain speeds from 0-750/min (1st gear: 0-460/min, 2nd gear: 0-750/min). Adjusting the variable speed dial With constant electronics the set speed is kept constant even when working under load.
-
Page 11: Maintenance
MAINTENANCE WARNING! Before cleaning your multi purpose mixer or carrying out any maintenance procedure, make sure that the motor is off and the multi purpose mixer disconnected from the power supply to prevent accidental starting. • Keep the ventilation vents of the multi purpose mixer clean at all times. •... -
Page 12: Troubleshooting
TROUBLESHOOTING Problem Cause Remedy Mixer is not working No power supplied Make sure all plugs are connected and power outlet is in working order Mixer not reaching Incorrect variable speed dial Rotate the variable speed dial (7) (7) setting to a high number to increase the required speed speed Incorrect gear selection... -
Page 13: Contents
CARING FOR THE ENVIRONMENT Power tools that are no longer usable should not be disposed of with household waste but in an environmentally friendly way. Please recycle where facilities exist. Check with your local council authority for recycling advice. Recycling packaging reduces the need for landfill and raw materials. -
Page 14: Warranty
WARRANTY YOUR WARRANTY FORM SHOULD BE RETAINED BY YOU AT ALL TIMES. IN ORDER TO MAKE A CLAIM UNDER THIS WARRANTY YOU MUST RETURN THE PRODUCT TO YOUR NEAREST BUNNINGS WAREHOUSE (see www.bunnings.com.au or www.bunnings.co.nz for store locations) WITH YOUR BUNNINGS REGISTER RECEIPT. PRIOR TO RETURNING YOUR PRODUCT FOR WARRANTY PLEASE TELEPHONE OUR CUSTOMER SERVICE HELPLINE: Australia 1800 951 371 New Zealand 0800 647 840...
