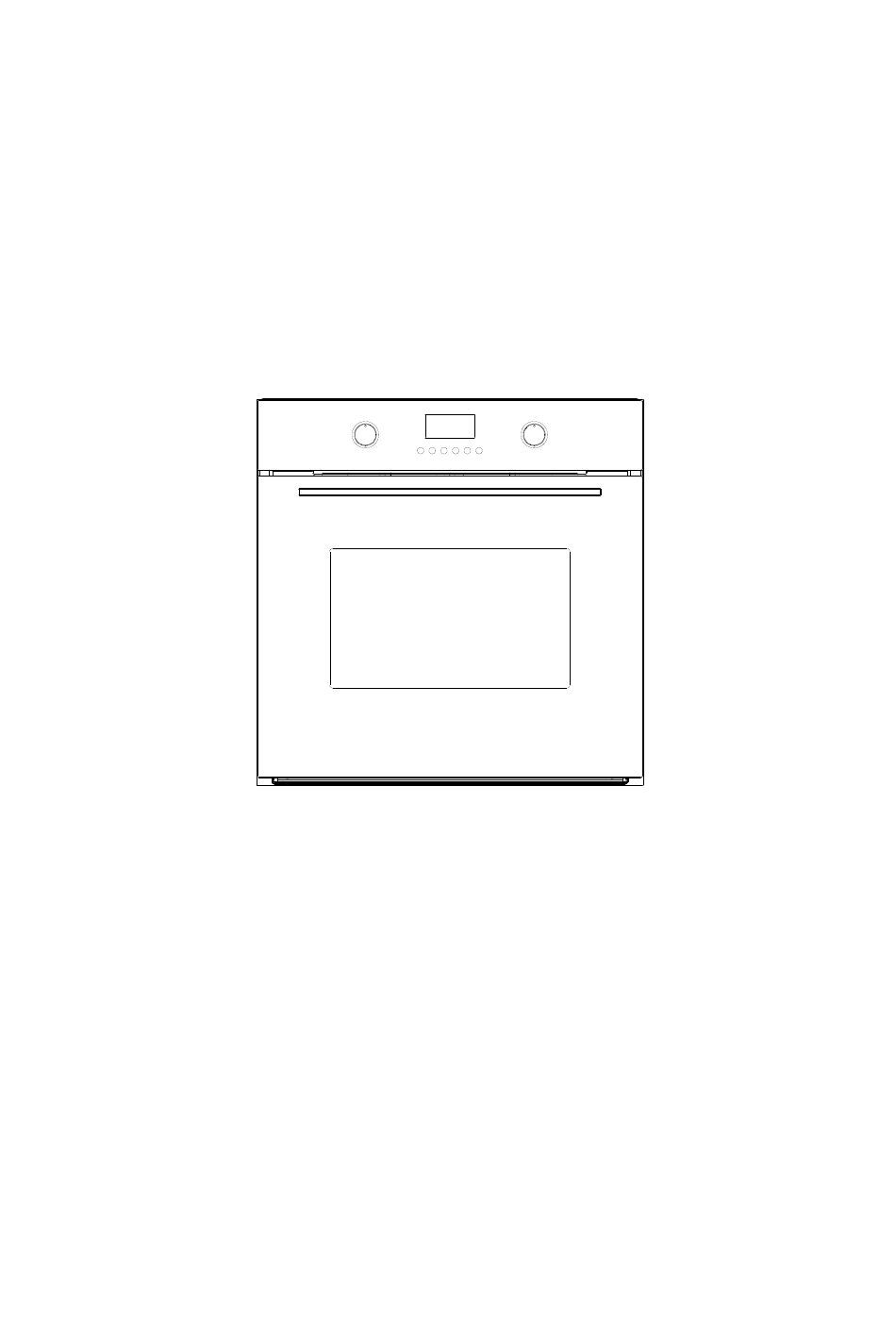

- Page 1 BUILD-IN ELECTRIC OVEN Owner’s Manual Model: KAS3UTUE-12A Please read these instructions carefully before installing and operating the oven and retain this information for future reference.
-
Page 2: Table Of Contents
CONTENT CONTENT ....................................1 SPECIFICATIONS ..................................1 IMPORTANT SAFETY IN STRUCTIONS ..........................2 INSTALLATION ..................................4 PART NAMES .................................... 6 CONTROL PANEL ..................................7 OPERATION INSTRUCTIONS ..............................8 Setting the Clock ................................ 8 Turn on/off the oven lamp ............................8 Multi Function Setting ............................... -
Page 3: Important Safety In Structions
IMPORTANT SAFETY IN STRUCTIONS GENERAL WARNINGS 1. When you pull down the package of oven, keep packing materials such as plastic bags, polystyrene, or nails out of the reach of children. 2. For avoiding fire and explosion, it is prohibited to put combustibles into oven, neither on it nor close to it. - Page 4 shattering of the glass. 19. The appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
-
Page 5: Installation
INSTALLATION INSTALLATION Equipment installation and electrical connection shall be conducted by a qualified professional technical personnel. After equipment take out from the packaging, please check the equipment and the power cord are in good condition. If you have questions, please do not use, sellers may require replacement. - Page 6 withstand 120 ℃ temperatures. Once the oven has been lodged inside the unit, the electrical part must be completely insulated. This is a legal safety requirement. c) All guards must be firmly fixed into place so that it is impossible to remove them without using special tools.
-
Page 7: Part Names
PART NAMES Code Part Names Code Part Names Control Panel Oven Door Handle Heater Tubes Rotary Grilling Bracket Cavity Obturating Ring Rotary Grilling Broach Convection Fan Grill Rack Oven Cavity Oil Collector... -
Page 8: Control Panel
CONTROL PANEL Button Image Button GENERAL FUNCTION Temperature Use this button to set temperature Clock Use for clock setting, cooking time setting Timer Use this button to start preset function Safety Lock Use this button to set or release child-proof lock Use this button to switch on or off the oven light Light in any time. -
Page 9: Operation Instructions
OPERATION INSTRUCTIONS When the oven is power on, the system will prompt for the sound, the display shows the function of the corresponding function knob settings (if the left knob corresponds to ● reset function " ", only shows "12:00".). ... -
Page 10: Multi Function Setting
Multi Function Setting This function allows you to set 11 different functions. At the end of cooking, the fan will delay work about 3 minutes to cool the cavity. Their working methods, temperature range and setting steps have been showed below: WORKING TEMPERATUR FUNCTION... -
Page 11: Preset Function
time, press pad once to confirm. Once time and temperatures are set up, press pad once to start cooking. NOTE: If user does not set cooking time, the time will increase automatically from small to large. If the cooking time has been set, it will countdown when the oven start cooking. Preset function This function can make the oven start program automatically at the further specified time you set advance. - Page 12 3. Turn the FUNCTION knob to select ” ” program. 4. Press 【 】pad once, and then turn the “－/＋” knob to enter 5 minutes. 5. Press pad once to confirm. 6. After the program has completed, please don't open the oven door in 20 minutes. 7.
-
Page 13: Cleaning And Care
CLEANING AND CARE GENERAL INSTRUCTIONS: 1. Ensure that the appliance is switched off and out of power supply before replacing the lamp or do some cleaning for avoiding the possibility of electric shock. 2. Wipe the oven with water and little washing-up liquid with; dry it with a soft cloth or sponge. - Page 14 INSIDE THE OVEN After waiting for the oven to internal cooling, please use wet dishcloth wiped the remains of the oven. Because of the enamel layer and ware metal surface under the high temperature, so there will be some faded. This is normal and does not affect the function. Don't try to use the rough friction pad or high strength cleaner to make up for this kind of faded.
- Page 15 B. Removing the glasses 1. Remove the top (shutter) by screwing down bolts on both sides. (See figure 2). 2. Screw down other 6 bolts in the opposite top on both sides of door. (See figure 2). Figure 2 3. Draw out and remove the glass 1. (See figure 3). 4.
- Page 16 Larger version Larger version Card slot The gap The gap D. Clean the oven cavity sealing ring To ensure the normal work of the oven, oven around the cavity is equipped with sealing ring. Should periodically check seal state. Such as sealing ring is too dirty, for its clean. You can l remove ring in order to clean.
-
Page 17: Accessories Using Instruction
ACCESSORIES USING INSTRUCTION A. Installation around layer frame (see figure 1) : 1. Install the left/right layer frame respectively in cavity fixed screw position; Figure 1 Layer frame B. Grill Rack insert location and layer (see figure 2) : Figure 2 C. - Page 18 Note: in the cavity clean, grill rack, oil collector, layer frame around, rotary grilling bracket, rotary grilling broach, all transfer to burn out, cleaning separately. D. Install the rotary grilling bracket: 1. Put oil collector on the first layer. 2. Insert rotary grilling bracket into oven layer 4 (figure 4) (the location of rotary grilling bracket can only be inserted into the layer 4, rotary grilling broach can normally use).;...
- Page 19 5. Start the grill program, make sure rotary grilling broach normal rotation, then close the oven door. 6. When the barbecue is complete, open the oven door, turns rotary grilling broach handle to remove food (figure 7);Screw down the handle from the broach. Rotary grilling broach handle Figure 7...
-
Page 20: Failure Diagnose
FAILURE DIAGNOSE Failure will happen for some simple reasons, please read the following illustrations carefully before asking for after services. Failures Possible reasons Suggestions to handle Turn on your oven. Enter a correct cooking The oven may not turn on. time.
