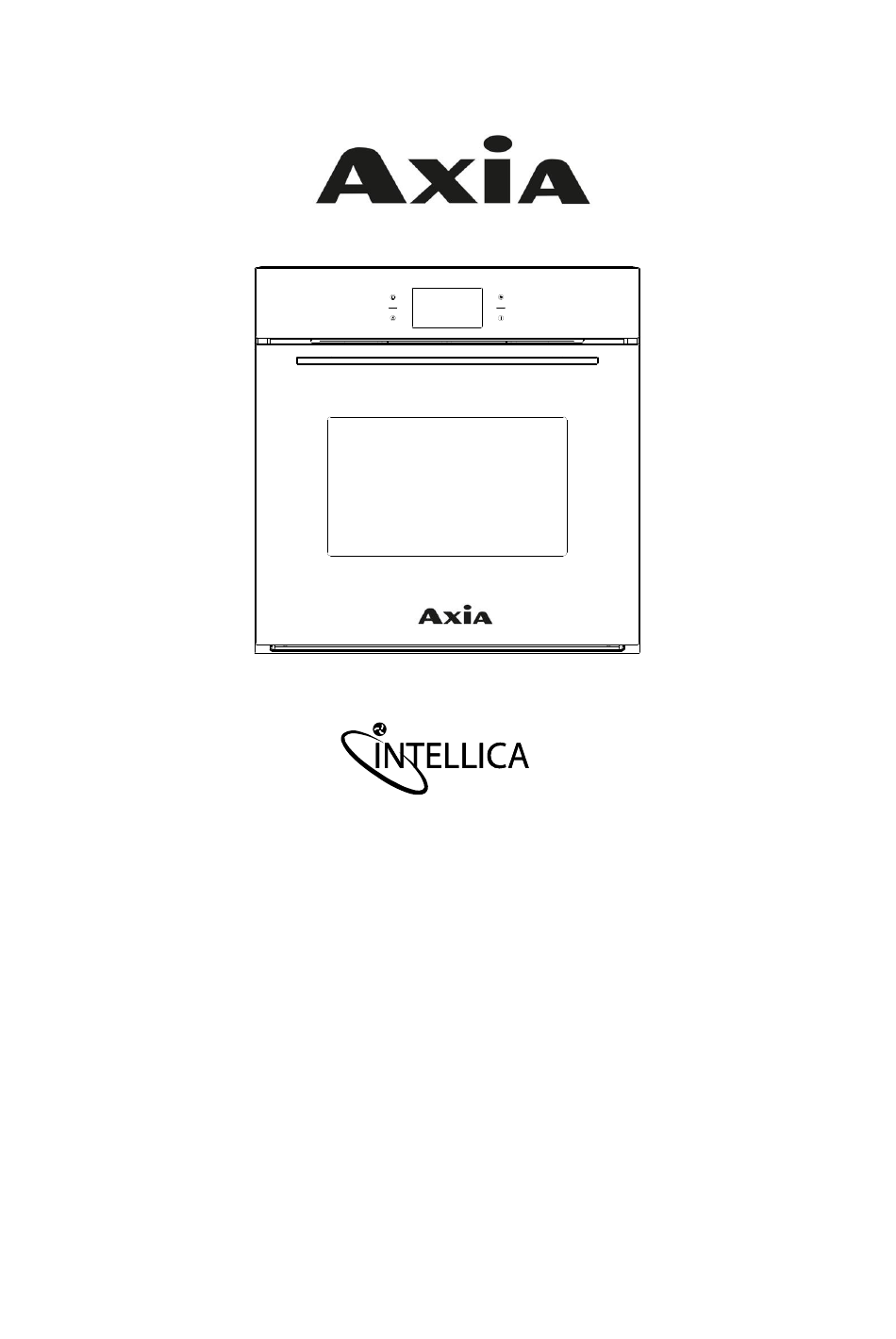

- Page 1 BUILT-IN ELECTRIC OVEN Owner’s Manual Model: INT 70 TFT Please read these instructions carefully before installing and operating the oven and retain this information for future reference.
-
Page 2: Table Of Contents
CONTENT SPECIFICATIONS ..................................1 IMPORTANT SAFETY INSTRUCTIONS ..........................2 INSTALLATION ..................................4 PART NAMES .................................... 6 CONTROL PANEL ..................................7 OPERATION INSTRUCTIONS ..............................8 Setting the lamp ................................. 8 Child-proof Lock ................................ 8 Setting preheat ................................8 Multi-Function Setting ............................... 9 Oven assist function .............................. -
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS GENERAL WARNINGS When you pull down the package of oven, keep packing materials such as plastic bags, polystyrene, or nails out of the reach of children. For avoiding fire and explosion, it is prohibited to put combustibles into oven, neither on it nor close to it. - Page 4 glass. 19. The appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
-
Page 5: Installation
INSTALLATION INSTALLATION Equipment installation and electrical connection shall be conducted by qualified professional technical personnel. After equipment is taken out from the packaging, please check the equipment and the power cord are in good condition. If you have questions, please do not use, sellers may require replacement. Installation method 1. - Page 6 NOTE: a) If the oven is to work properly, the kitchen housing must be suitable. b) The panels of the kitchen unit that are next to the oven must be made of a heat resistant material. Ensure that the glues of unit that are made of veneered wood can withstand 120 degrees temperatures.
-
Page 7: Part Names
PART NAMES Code Part Names Code Part Names Control Panel Rotary Grilling Broach Heater Tubes Grill Rack Cavity Obturating Ring Oil Collector Convection Fan Oven Cavity Rotary Grilling Bracket Oven Door Handle... -
Page 8: Control Panel
CONTROL PANEL Button Image Button Manes GENERAL FUNCTION Press it once, the system will remind user to cancel Homepage the program setting or cooking session, if you press confirm, the oven will return to the main interface. Light Use this pad to switch on or off the oven light. Safety Lock Use this pad to set or release child-proof lock Power switch... -
Page 9: Operation Instructions
OPERATION INSTRUCTIONS After connecting the power supply, the system enters the shutdown mode and “ ” twinkles. Press and hold “ ” pad for 3 seconds to awaken the boot-strap interface and the oven enters home page operation interface. ... -
Page 10: Multi-Function Setting
Setting a cooking program without preheat After entering cooking temperature, press “No Preheat” once Enter cooking time and then press “ ” pad to start cooking. NOTE: If you want the oven to start cooking at the appointed time: After entering cooking temperature pad once and then enter the preset time. -
Page 11: Oven Assist Function
The oven has 8 kinds of cooking functions. You can choose from the cooking program by sliding on the main page and then pressing it once to confirm. From the home page you can reach the temperature selection interface. Slide left or right to choose cooking temperature and then press the temperature which you need. - Page 12 AUTO COOK MENU: Cooking Program Cooking time Menu Auto menu temperature time Position （℃） （ mins） （ mins） Cakes and Cookies Choco Chip Cookies Bake 180 20 mins 20 mins 3rd Rack Level Chocolate Marshmallows Bake 180 20 mins 20 mins 3rd Rack Level Cup Cakes Bake 190...
- Page 13 Pizza & Breads Bottom Heat Baby Bread Pizza + convection 20 mins 20 mins 3rd Rack Level (190) Vegetable Bruschetta Grill 190 10 mins 10 mins 3rd Rack Level Bottom Heat Chicken Pizza + convection 20 mins 20 mins 3rd Rack Level (190) Garlic Bread Grill 190...
-
Page 14: Favorites Function
e) The interface will remind user to put the baking tray and metal rack. Click “OK” to start cooking. Favorites function After cooking you can store a program by clicking “Favorites”, the display will show for 3 seconds. The next time you can directly find the cooking program in the favorites and then click the program and then press “... - Page 15 3. Find “Defrost” on the home page, click it. 4. Slide the temperature interface left or right to select temperature at 60℃, slick the temperature once. 5. Then slide the time interface up or down to enter defrosting time of 5 minutes. Press “ ”...
-
Page 16: Cleaning And Care
CLEANING AND CARE GENERAL INSTRUCTIONS: Ensure that the appliance is switched off and out of power supply before replacing the lamp or doing some cleaning to avoid the possibility of electric shock. Wipe the oven with water and little dish washing liquid; dry it with a soft cloth or sponge. Cleaning with water directly may lead creepage. - Page 17 CLEANING THE OVEN ACCESSORIES Carefully clean with soap and water in attachment, and wipe dry. INSIDE THE OVEN After waiting for the oven to cool from the inside, please use wet dishcloth wiping the remains of the oven. Because of the enamel layer and metal surface coming under high temperature, so there will be some fading.
- Page 18 B. Removing the glasses Remove the top (shutter) by screwing down bolts on both sides. (See figure 2). Screw down other 6 bolts in the opposite top on both sides of door. (See figure 2). Figure 2 Draw out and remove the glass 1. (See figure 3). 4.
-
Page 19: Instructions For Using The Accessories
D. Cleaning the oven cavity sealing ring To ensure the normal working of the oven, area around the cavity is equipped with sealing ring. It should periodically be checked in sealed state. If the sealing ring is too dirty, it should be cleaned. You can remove the ring to clean it. - Page 20 C. Installing the grill (See figure 3) : Insert the oil collector on the first layer. Insert the grill rack on the proper upper layer of oil collector. Figure 3 Note: While cooking, the grill rack, oil collector, layer frame around, rotary grilling bracket, rotary grilling broach get dirty, their cleaning should be done separately.
- Page 21 Insert the broach into the hole on the wall of oven cavity. Put rotary grilling broach with food into the rotary motor casing of oven chamber (figure 6), insert both the ends of rotary grilling broach onto rotary grilling bracket. Figure 6 Start the grilling program, make sure rotary grilling broach is rotating normally, then close the oven door.
- Page 22 E. Choosing the container The thickness of the container, electrical conductivity and the color will affect the cooking. Please keep in mind: 1) The use of aluminum plate, soil in burned tray, refractory clay, baked food at the bottom is shallow in color, food moisture is enough. It is recommended that you use this kind of container for heating pastry, dough and barbecue.
-
Page 23: Failure Diagnosis
FAILURE DIAGNOSIS Failure might happen due to some simple reasons, please read the following illustrations carefully before contacting the after sales services. Failures Possible reasons Suggestions to handle Turn on your oven. Enter a correct cooking The oven may not turn on. time.
