Summary of Contents for Anova TPB4501

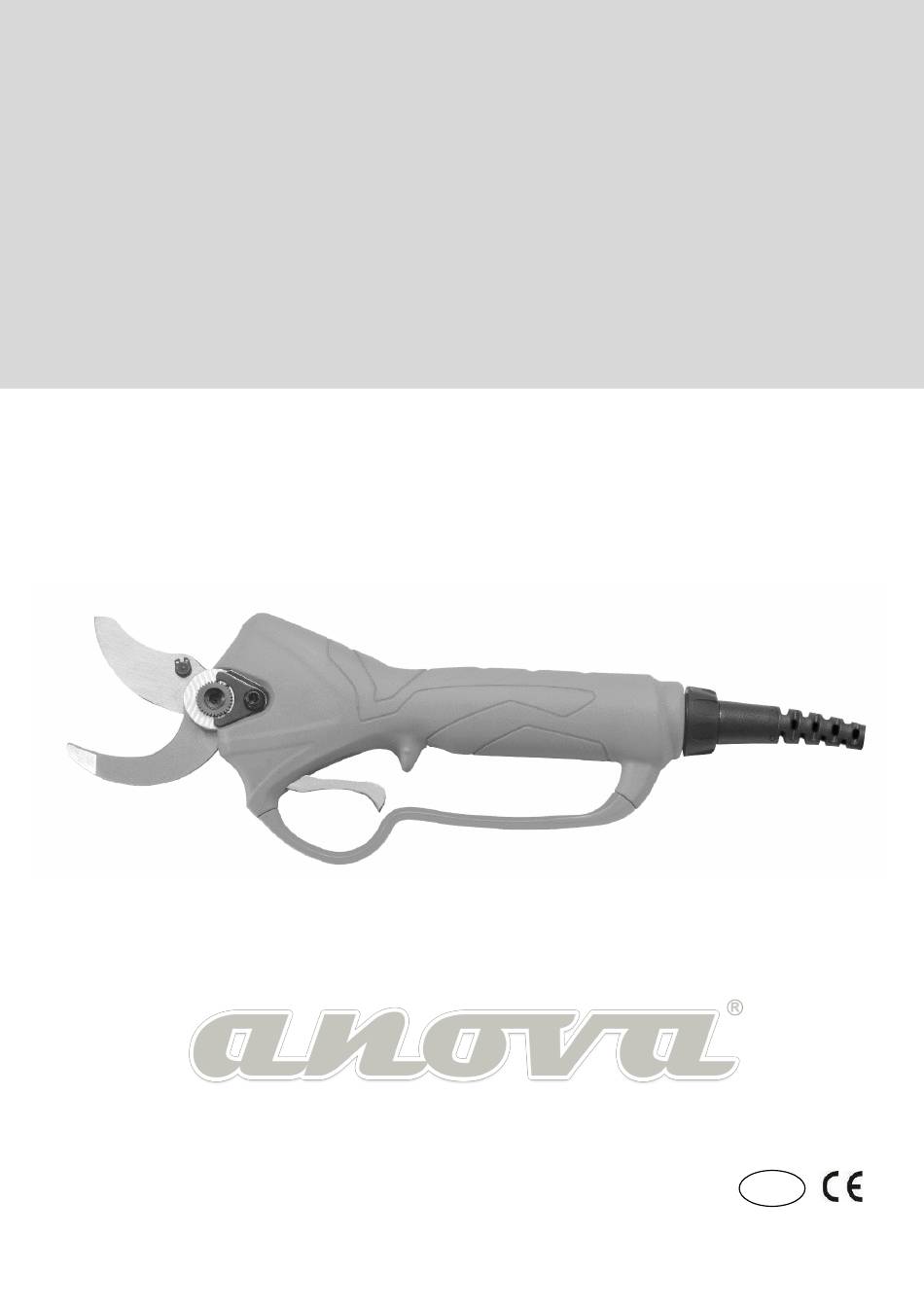

- Page 1 Instructions - User Manual BATTERY PRUNING SCISSORS TPB4501 Millasur, SL. Rúa Eduardo Pondal, nº 23 - Pol. Ind. Sigüeiro 15688 - Oroso - A Coruña 981 696465 www.millasur.com...
- Page 2 ANOVA thanks you for choosing one of our products and guarantees you the assistance and cooperation that has always distinguished our brand over time. This machine is designed to last for many years and to be very useful if used in accordance with the instructions contained in the user manual.
-
Page 3: Table Of Contents
Contents 1. Items in the box 2. Product description 2.1 General instructions 2.2 Intended use 2.3 Technical data 2.4 Identification of parts 3. Use and maintenance 3.1 Commissioning 3.2 Tips for use 3.3 Battery charging 3.4 Special attention 3.5 Sharpening the blade 3.6 Blade replacement 3.7 Adjusting the blade tension 4. -
Page 4: Items In The Box
1. Items in the box The tool includes the following components in the supplied carrying case. 1. Electric pruning shears 2. Lithium batteries 3. Charger 4. Battery holding harness 5. Sharpening stone 6. Tools kit 7. Lubricant oil 2. Product description 2.1 General instructions 1. -
Page 5: Technical Data
2.3 Technical data BASIC INFORMATION ABOUT PRUNING SCISSORS Working voltage DC 36V Motor power 1080 W Motor speed 20000 r / min Weight 0.9 Kg (connection cable not included) Battery Lithium Ion 36V 4.4Ah Charging voltage AC 110V - 240V - DC 42.5V Battery charging time 3-4 h Working time... -
Page 6: Use And Maintenance
3. Use and maintenance 3.1 Commissioning 1. Open the case and place electric pruning shears and its battery in the appropriate storage bag. 2. The electric mower has a fixed connection power cable through the harness and connects to the battery. -
Page 7: Battery Charging
once. 3.3 Battery charging The battery in a new machine is not fully charged. Before charging, insert the battery into the charger and insert the charger plug into the outlet. The "+" of the battery should be inserted into the "+" of the charger, as shown in the image to the right. -
Page 8: Adjusting The Blade Tension
1. Remove the screws with a screwdriver and open the cover.2. Remove the screws from the blade nut retainer (this step is important) 3. Remove the blade nut 4. Remove the pin and remove the movable knife5. Remove the fixed knife. 6. When replacing the blades, lubricating oil should be added between the blades 7. -
Page 9: Maintenance
properly and damaging the mechanical structure. 4. Maintenance 4.1 Scissor maintenance 1. Do not cut branches outside the cutting range; do not cut non-plant materials, such as metals and stones, etc. do not use clamps or the like to hold the scissors; Always replace the cutting blade, if it is worn or damaged. -
Page 10: Safety Instructions
12. Do not use damaged or deformed batteries. 13. Do not solder batteries directly. 14. Do not charge the batteries in reverse; do not use them in an anti-polar way or discharge them excessively. 15. Do not connect the battery to recharging sockets or car cigarette lighter sockets. 16. -
Page 11: Recycling And The Environment
have other materials that could be damaged while pruning, such as power cables, wires, etc .; and maintain a balanced position to ensure a good reaction in the event of an accident or fall. 5. Dress appropriately for the job to be performed: do not wear clothing that is too loose or at risk of being caught in the scissors or other trees for your discomfort or insecurity;... -
Page 13: Ce Certificate
Machine name: BATTERY PRUNING SCISSOR TPB4501 Model: Recognized and approved standard to which it conforms: Directive 2006/42 / CE / Directive 2014/30 / EU / Directive 2014/35 / EU...
