Instructions - User Manual
BATTERY PRUNING SCISSORS
TPB2503
Millasur, SL.
Rúa Eduardo Pondal, nº 23 - Pol. Ind. Sigüeiro
15688 - Oroso - A Coruña 981 696465 www.millasur.com
EN

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TPB2503 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Anova TPB2503

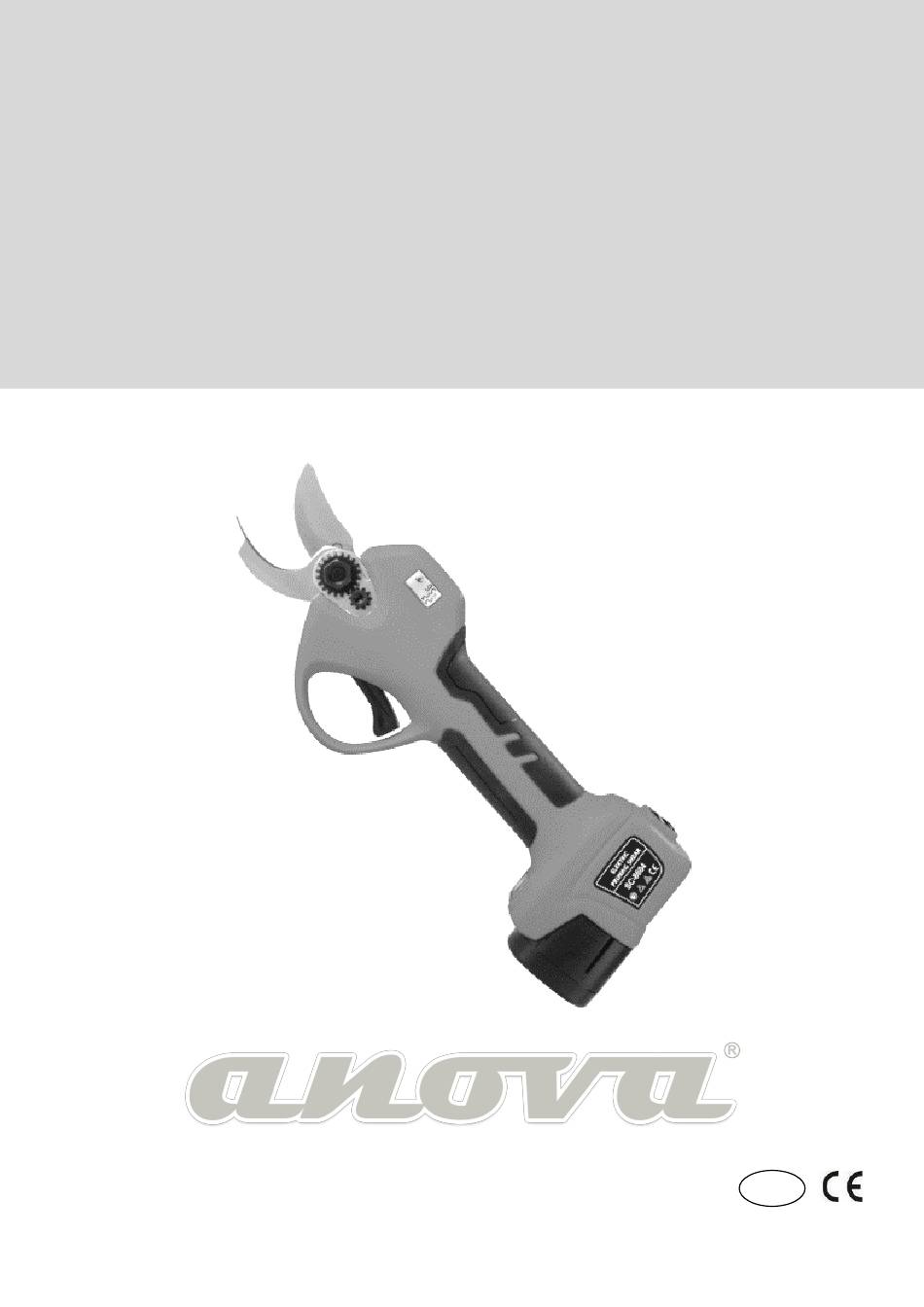

  • Page 1 Instructions - User Manual BATTERY PRUNING SCISSORS TPB2503 Millasur, SL. Rúa Eduardo Pondal, nº 23 - Pol. Ind. Sigüeiro 15688 - Oroso - A Coruña 981 696465 www.millasur.com...
  • Page 2 ANOVA thanks you for choosing one of our products and guarantees you the assistance and cooperation that has always distinguished our brand over time. This machine is designed to last for many years and to be very useful if used in accordance with the instructions contained in the user manual.
  • Page 3: Table Of Contents

    Contents 1. Items in the box 2. Product description 2.1 General instructions 2.2 Intended use 2.3 Technical data 2.4 Identification of parts 3. Use and maintenance 3.1 Commissioning 3.2 Tips for use 3.3 Battery charging 3.4 Special attention 3.5 Sharpening the blade 3.6 Blade replacement 4.
  • Page 4: Items In The Box

    1. Items in the box The tool includes the following components in the supplied carrying case. 1. Electric pruning shears 2. Lithium batteries 3. Charger 4. Tools and lubrication kit 2. Product description 2.1 General instructions 1. Read the instructions in their entirety. 2.
  • Page 5: Identification Of Parts

    BASIC INFORMATION ABOUT PRUNING SCISSORS Working voltage DC 16.8V Weight 0.9 Kg Battery Lithium Ion 16.8V 2Ah Charging voltage AC 110V - 240V Battery charging time 1 - 1.5 h Working time 3 - 4 h (discontinuous work) CUTTING RANGES Cut diameter 28 mm Working temperatures...
  • Page 6: Use And Maintenance

    3. Use and maintenance 3.1 Commissioning 1. Remove the machine from the packaging. Install the lithium battery, press and hold the power switch for three seconds, and then release it. You should hear the sound of two beeps; this means that the battery is normally charged.
  • Page 7: Sharpening The Blade

    5. Do not use damaged batteries or disassemble the charger or batteries. 6. Batteries can explode in fire. Never burn the batteries. 7. Do not charge the batteries in an outdoor or humid environment. 8. With the gradual decrease of the electric quantity of the battery, it is normal to reduce the capacity of the cutting diameter.
  • Page 8: Maintenance

    7. Replace blade8. Insert nut 9. Install the lock nut Support blade and movable blade can be replaced independently; As a replacement, don't worry about too small a blade opening; After recovering the electricity from the scissor, the normal opening size will automatically recover.
  • Page 9: Safety Instructions

    10. Do not charge the battery near fire or in direct sunlight. 11. Do not drive nails or other objects into the battery; do not hit it with hammers or trample on it, and do not throw the battery on the ground hastily. 12.
  • Page 10: Recycling And The Environment

    position to ensure a good reaction in the event of an accident or fall. 5. Dress appropriately for the job to be performed: do not wear clothing that is too loose or at risk of being caught in the scissors or other trees for your discomfort or insecurity; keep hair, clothing, and sleeves away from the scissor cutting area.
  • Page 11: Ce Certificate

    Machine name: BATTERY PRUNING SCISSOR TPB2503 Model: Recognized and approved standard to which it conforms: Directive 2006/42 / CE / Directive 2014/30 / EU / Directive 2014/35 / EU...
