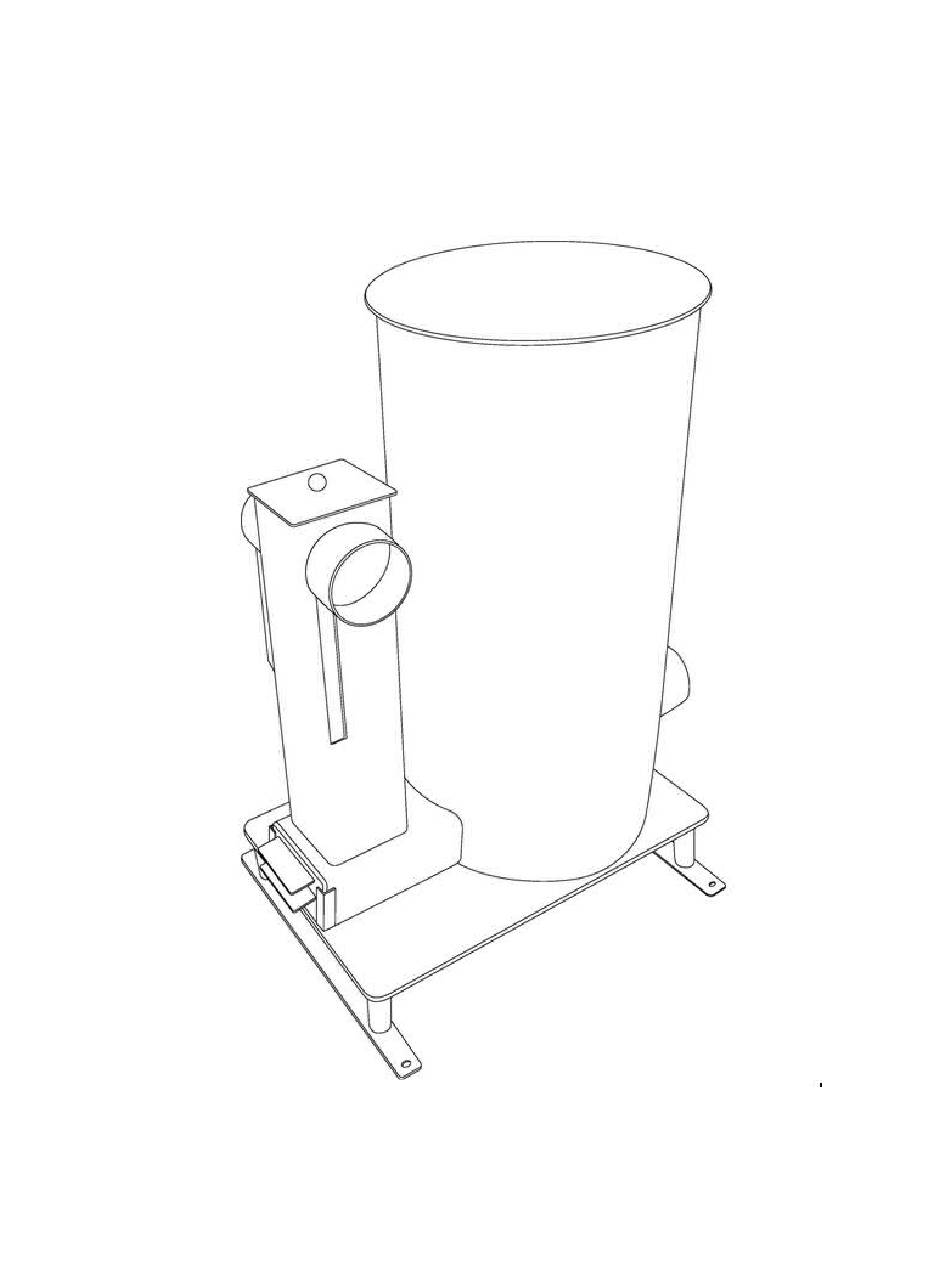

- Page 1 OWNERS MANUAL LIBERATOR ROCKET HEATER Model: RMH-2 SAVE THIS MANUAL FOR FUTURE REFERENCE ROCKETHEATER.COM Page 1...
- Page 2 (573)-468-4043 Table of Contents 1. Cover, Page 1 2. Table of Contents, Specifications, and Shipping Dimensions, Page 2 3. Warnings, Pages 3 – 5 4. Clearances to Walls, Page 6 5. Installation to Masonry Chimney, Pages 7 – 9 6. Installation to Class A Chimney, Pages 10 – 12 7.
- Page 3 Thank you for your purchase of the Liberator Rocket Heater. This owners manual will assist you in the proper use, maintenance, installation, and safety precautions to undertake in the heaters operation and installation. 3 WARNING! READ ALL INSTRUCTIONS CAREFULLY BEFORE USING OR INSTALLING! SAFETY PRECAUTIONS! -Do not touch the appliance while it is hot, in operation or thereafter.
- Page 4 -Always review the local, state, and federal laws before installing this appliance. If applicable in your area, contact your local building officials to obtain a permit and information on any installation restrictions and inspection requirements in your area. If you have insurance notify your insurance company and provider.
- Page 5 -Do not connect a wood burning heater to a Type B gas vent. Doing so is not safe and is prohibited by the National Fire Protection Association Code. -Liberator Rocket Heaters grants no warranties, implied or stated, for the installation or maintenance of your appliance, and assumes no responsibility of any consequential damage.
-
Page 6: Installation
SAFETY NOTICE: IF THIS HEATER IS NOT PROPERLY INSTALLED, A HOUSE FIRE MAY RESULT. FOR YOUR SAFETY, FOLLOW THE INSTALLATION DIRECTIONS. CONTACT LOCAL BUILDING OR FIRE OFFICIALS ABOUT RESTRICTIONS AND INSTALLATION INSPECTION REQUIREMENTS IN YOUR AREA. Installation Place the heater on solid masonry or solid concrete. When the heater is used on a combustible floor, use an Underwriters Laboratory Listed or equivalent Type 2 floor protector. - Page 7 Chimney Connection Masonry Chimney The masonry chimney must comply with UL or equivalent NRTL and NFPA 211 standards and codes. Before using an existing masonry chimney, clean the chimney and inspect the flue liner to be absolutely sure it is safe to use. Rules For Connecting To A Masonry Chimney 1.
- Page 8 Flue Connection Through a Non-Combustible Wall Page 8...
- Page 9 Page 9...
- Page 10 Page 10...
- Page 11 NRTL Listed (Class A) Chimney Carefully follow the chimney manufacturers instructions. Use only listed type HT per UL 103, 6" inch diameter black or blued chimney connector with a minimum thickness of no less than 24 gauge. If your chimney starts at the ceiling you will need enough 6" inch pipe to reach the ceiling. The top of the chimney must be at least 3' feet above the roof and be at least 2' feet higher than any point of the roof within 10' feet.
- Page 12 Through Ceiling Installation Page 12...
- Page 13 Installation Of Combustion Air Inlet The Rocket Heater has a 4" combustion air inlet on each side of the fuel feed tube. If the heater is to be installed in a mobile home a combustion air inlet (commonly/alternatively referred to as a "fresh air intake"...
- Page 14 Integration of Rocket Heater to Thermal Mass The Liberator RMH-2.0 can be integrated to thermal mass. The benefits of using thermal mass is a thermal battery/flywheel effect which allows the stove to keep the structure warm without necessitating a continuous 24/7 firing. However, there are many variations of thermal mass integration and each installation is almost inherently a custom designed and built to the customers needs.
- Page 15 DIAGRAMMATIC DETAILS FOR THERMAL MASS Page 15...
- Page 16 Installation Of Flue/Chimney Damper 1. To install the flue damper, select one of the assembled sections of pipe (1) and measure its length. Make a mark (2) halfway down the length of the section at a point 90 degrees away from the section seam (3).
- Page 17 Final Draft Inspection (Do NOT do this while the appliance is in operation) To check if your chimney is drafting correctly, open the lighting/cleanout door and put a lit match or cigarette lighter in front of the burn chamber. Then do the same (with the door closed) on top of the fuel feeding area.
- Page 18 Operation Of Your Rocket Heater On Fuel Pellets The Pellet Hopper Adapter allows the Liberator RMH-2 to burn pellets without permanently modifying the heater in any way. Steps to Attach the Pellet Hopper Adapter 1. Install the Pellet Feed Tube on to the Pellet Hopper Adapter by inserting the tube into the Coupler located on the bottom of the hopper.
- Page 19 Steps to Start the Heater on Pellets 1. Fill the hopper with pellets, then open the Ash Cleanout Door. 2. Use a propane torch to ignite the pellets. Make sure that the torch's flame is making contact with the fuel pellets and use a left to right sweeping motion across the bottom of the burn grate for approximately 25 to 30 seconds or until there is a steady draft.
- Page 20 NEVER load fuel from the front door (the one that slides up and down). This door is only for lighting/startup and cleaning. Only load fuel from the top of the vertical tube. Specifically for the event of an emergency or chimney fire, keep a five gallon bucket of sand handy to pour into the fuel chamber. This will limit available oxygen to the chimney fire.
