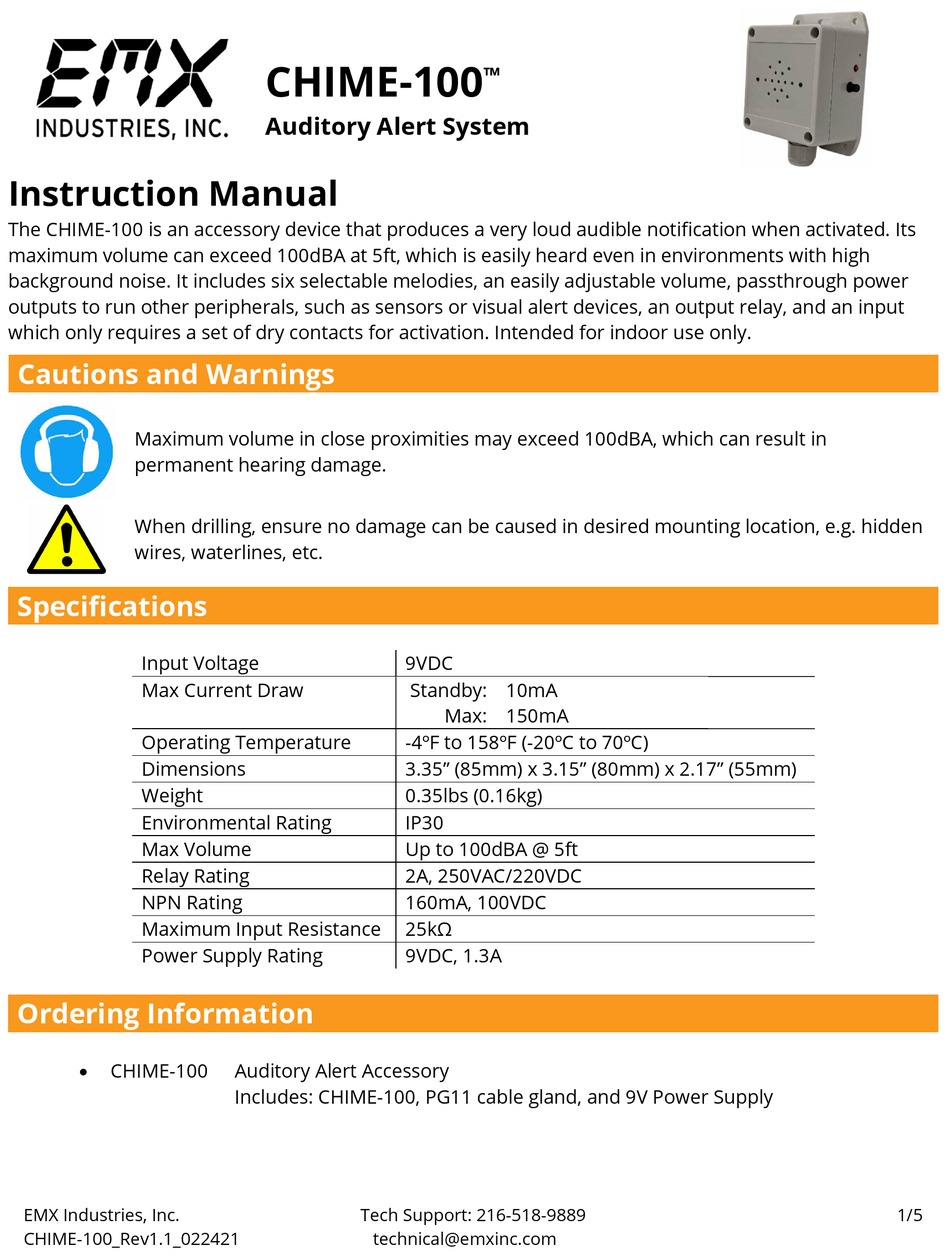

Instruction Manual

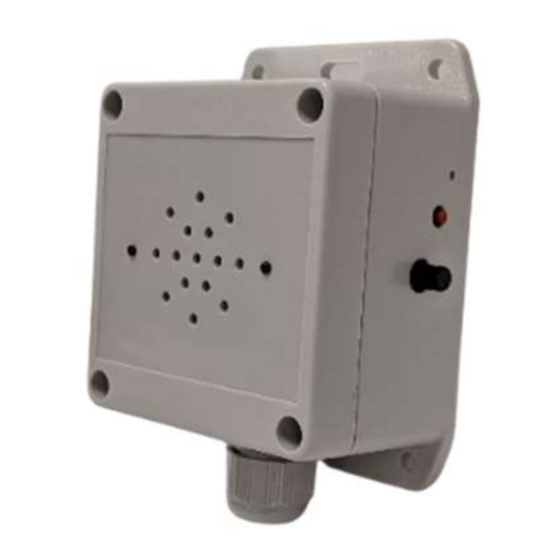

The CHIME-100 is an accessory device that produces a very loud audible notification when activated. Its
maximum volume can exceed 100dBA at 5ft, which is easily heard even in environments with high
background noise. It includes six selectable melodies, an easily adjustable volume, passthrough power
Outputs to run other peripherals, such as sensors or visual alert devices, an output relay, and an input
which only requires a set of dry contacts for activation. Intended for indoor use only.
Cautions and Warnings
Maximum volume in close proximities may exceed 100dBA, which can result in
permanent hearing damage.
When drilling, ensure no damage can be caused in desired mounting location, e.g. hidden
wires, waterlines, etc.
Specifications
Input Voltage
Max Current Draw
Operating Temperature
Dimensions
Weight
Environmental Rating
Max Volume
Relay Rating
NPN Rating
Maximum Input Resistance
Power Supply Rating
Ordering Information
CHIME-100
EMX Industries, Inc.
CHIME-100_Rev1.1_022421
CHIME-100
Auditory Alert System
9VDC
Standby:
-4ºF to 158ºF (-20ºC to 70ºC)
3.35" (85mm) x 3.15" (80mm) x 2.17" (55mm)
0.35lbs (0.16kg)
IP30
Up to 100dBA @ 5ft
2A, 250VAC/220VDC
160mA, 100VDC
25kΩ
9VDC, 1.3A
Auditory Alert Accessory
Includes: CHIME-100, PG11 cable gland, and 9V Power Supply
Tech Support: 216-518-9889
technical@emxinc.com
™
10mA
Max:
150mA
1/5
Advertisement
Table of Contents
Related Manuals for EMX CHIME-100
Summary of Contents for EMX CHIME-100
- Page 1 Auditory Alert System Instruction Manual The CHIME-100 is an accessory device that produces a very loud audible notification when activated. Its maximum volume can exceed 100dBA at 5ft, which is easily heard even in environments with high background noise. It includes six selectable melodies, an easily adjustable volume, passthrough power outputs to run other peripherals, such as sensors or visual alert devices, an output relay, and an input which only requires a set of dry contacts for activation.
- Page 2 5. Cable Grip Installation 1. In the desired location, mount the CHIME-100 housing using at least two screws. 2. Unscrew the lid of the housing and carefully remove the lid. CAUTION: The lid and base are attached by the speaker’s wires.
- Page 3 LED will begin blinking. Presence LED 7. Configure the CHIME-100 to play the desired melody by pressing the pushbutton on the side of the unit. Adjust the volume to a comfortable level. See section “Chime Adjustment” on next page for more information.
- Page 4 Outputs VOUT The CHIME-100 comes with a 9VDC power adapter that plugs into the unit via barrel jack, and is powered through a wall outlet. This power supply can be used to power additional peripherals through the VOUT terminals. If using the included power adapter, the additional peripherals should draw no more than 400mA of current.
- Page 5 Unit is damaged and will need to be overload repaired or replaced. Warranty EMX Industries, Inc. products have a warranty against defects in materials and workmanship for a period of two years from date of sale to our customer. EMX Industries, Inc. Tech Support: 216-518-9889 CHIME-100_Rev1.1_022421...
