Summary of Contents for Islandaire 6041210

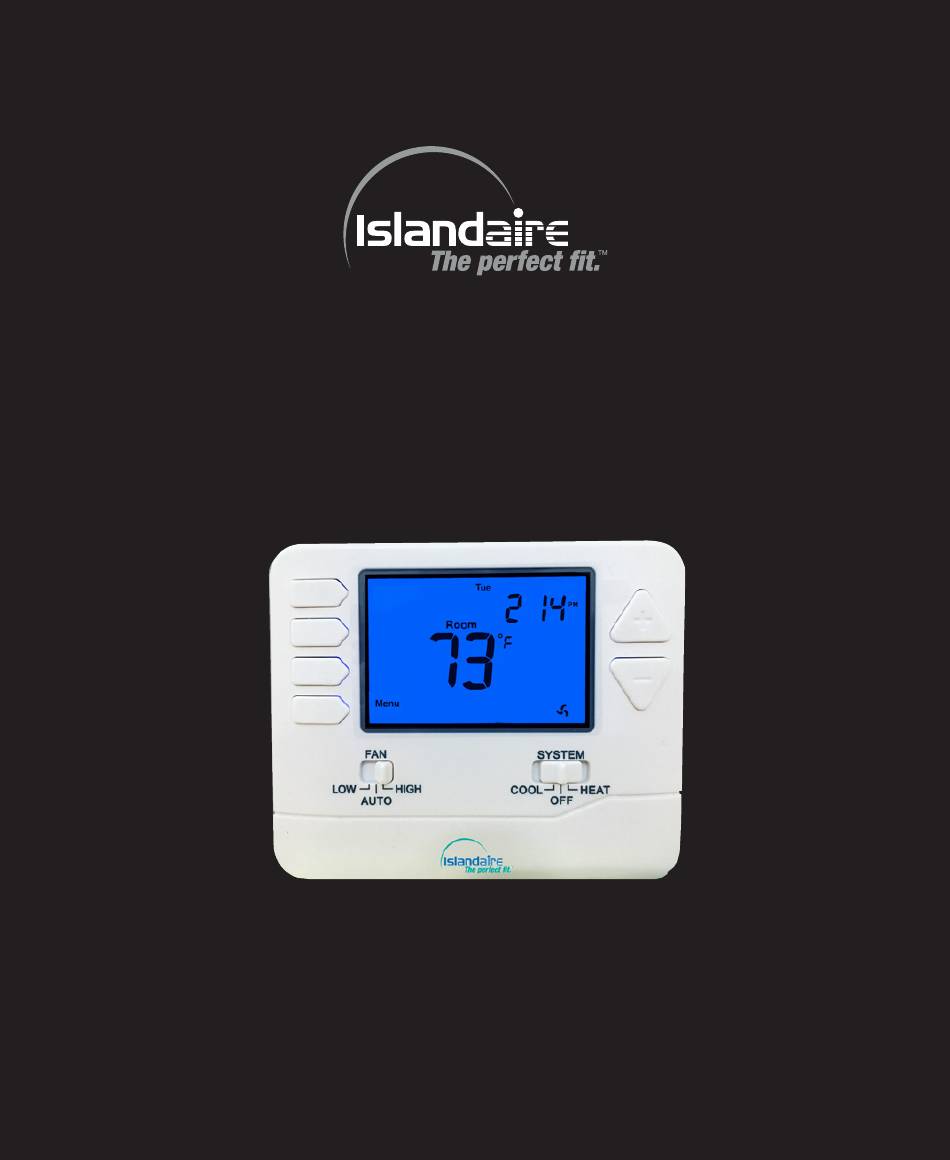

- Page 1 7-DAY PROGRAMMABLE WIRELESS THERMOSTAT 6041210 Installation and Operation Manual 6140435 Rev. 10/13/20...
-
Page 3: Table Of Contents
Installation and Operation Manual Thermostat Application Guide Power Type Description Battery Power Hardwire (Common Wire) Gas or Oil Heat Hardwire (Common Wire) with Electric Furnace Battery Backup Heat Pump (No Aux. or Emergency Heat) Heat Pump (With Electric Aux.) Heat Pump (With Gas Aux.) A trained, experienced technician Multi-Stage Systems must install this product. -
Page 4: Installation Tips
Installation Tips Wall Locations The thermostat should be installed approximately 4 to 5 feet above the floor. Select an area with average temperature and good air circulation. Do not install thermostat in locations: • Close to hot or cold air ducts •... - Page 5 Installation Tips Installation Manual Mount Thermostat Align the 4 tabs on the subbase with corresponding slots on the back of the thermostat, then push gently until the thermostat snaps in place. Battery Installation Battery installation is optional if thermostat is hardwired (RH and C terminal connected to 24V power) Important:...
-
Page 6: Thermostat Quick Reference
Thermostat Quick Reference Getting to know your thermostat Indicates the Displays current current room day of week temperature and time Displays the user selectable setpoint temperature Low Battery indicator: Replace batteries when indicator is shown Time Period indicator: System Operation Indicates current indicators: On will program time period... -
Page 7: Wiring
Wiring Wiring This thermostat is shipped from the factory to operate a conventional heating and cooling system. This thermostat will also operate a heat pump system. See the “heat pump” configuration step on page 10 of this manual to configure the thermostat for heat pump applications. - Page 8 18-22 gauge thermostat wire. connecting supply voltage wire (red) and common wire to the RH and C terminals, respectively, on the base. Note: When connecting the 6041210 thermostat to a PTAC, refer to the PTAC unit’s instructions to enable remote thermostat operation.
-
Page 9: Wiring Diagrams
Wiring Diagrams Power supply Splice together GL and GH wires. Cap off B. Typical 1H/1C Conventional System: 2 Speed Fan COMPRESSOR RELAY HEAT RELAY FAN LOW RELAY FAN HIGH RELAY Typical 1H/1C Conventional System: 1 Speed Fan COMPRESSOR RELAY HEAT RELAY FAN RELAY... - Page 10 Wiring Diagrams Power supply Cap off W Thermostat must be set to B on all Heat Pump Systems Typical 1H/1C Heat Pump System: 2 Speed Fan COMPRESSOR RELAY FAN LOW RELAY FAN HIGH RELAY CHANGEOVER VALVE Typical 2H/1C Heat Pump System: 2 Speed Fan COMPRESSOR RELAY EMERGENCY...
-
Page 11: Technician Setup
Technician Setup Technician Setup Menu This thermostat has a technician setup menu for easy installer configuration. To set up the thermostat for your particular application: 1. Press the Menu button. 2. Press and hold the Tech Set button for 3 seconds. This three second delay is designed so that homeowners do not accidentally access the installer settings. - Page 12 Y will be heat pump systems. the first stage of heat ON configures the & cool, W will be the thermostat for heat second stage of heat. pump systems. * All Islandaire units should always be set to b...
- Page 13 Technician Setup Menu Tech Setup Steps LCD Will Show Adjustment Options Default Cooling The swing setting, The cooling swing Swing often called “cycle rate”, setting is adjustable Cool Swing Cool Swing “differential” or “antici- from 0.2° to 2°. For ex- pation”, is adjustable.
- Page 14 Technician Setup Menu Tech Setup Steps LCD Will Show Adjustment Options Default Cooling This feature allows you Use the “+” or “-” key Temperature to set a maximum cool to set the maximum Setpoint setpoint value. The temperature setpoint: Limit setpoint temperature 44.0˚...
-
Page 15: Rf Pairing
RF Pairing RF Pairing 1. Receiver Unit: Insert a slender object into the hole and keep it depressed for approximately 5 seconds until the red LED starts flashing. 2. Transmitter Unit: Turn the SYSTEM switch to OFF. Press the Menu button. Press and hold the Tech Set button for 5 seconds to access the Installer Settings screens. -
Page 16: Programming
Programming Programming The 6041210 Thermostat is shipped with an energy saving default program. The thermostat can be re-programmed as described in the paragraph entitled “Set Program Schedule”. There are two program schedule options: • 7 days - Each day of the week programmed individually •... - Page 17 Programming Default Programming Factory Default Program Day of Time Period Time Setpoint Setpoint Week Temperature Temperature (Heat) (Cool) Wake 6 AM 70°F (21°C) 75°F (24°C) Leave 8 AM 62°F (17°C) 83°F (28°C) Weekday Return 6 PM 70°F (21°C) 75°F (24°C) Sleep 10 PM 62°F (17°C)
- Page 18 Programming Set Program Schedule (7 Day Schedule) To customize your 7 day program schedule, proceed as follows: 1. Set the System Switch to either Heat or Cool. Note: You have to program heat and cool separately. 2. Press the Menu button. 3.
- Page 19 Programming Set Program Schedule (5+1+1 Schedule) To customize your 5+1+1 day program schedule (weekday, Saturday, Sunday), proceed as follows: 1. Set the System Switch to either Heat or Cool. Note: You have to program heat and cool separately. 2. Press the Menu button. 3.
-
Page 20: Features
Features Temporary and Permanent Hold Temporary Hold: The thermostat will display “Hold” and “Run Sched” on the left side of the screen when you press the “+” or “-” key. If you do nothing, the temperature will remain at this setpoint temporarily for four hours. After this time, the thermostat will revert back to programmed temperature control. -
Page 21: Specifications
Specifications 6041210 Wireless Thermostat Temperature Display Range ...........32 °F to 99 °F (0 °C to 37 °C) Temperature Control Range ..........44 °F to 90 °F (7 °C to 32 °C) Load Rating ....... 1A per terminal, 1.5A maximum all terminals combined Swing (cycle rate or differential) ...... - Page 22 Specifications 1” / 2.375” 3.86” 4.72” 1.1” 1.125” 3.00” 1.75”...
