SAFETY INFORMATION
OPERATING INSTRUCTIONS
CARE AND CLEANING
INSTALLATION
INSTRUCTIONS
. . . . . . . . . . . . . . . . . .
TROUBLESHOOTING TIPS
WIRING DIAGRAM
. . . . . . . . . . . . . . .
LIMITED WARRANTY
CONSUMER SUPPORT
Write the model and serial
numbers here:
Model # _________________
Serial # _________________
You can find them on the rating
label on the front side of your
water heater.
. . . . . . . . .
OWNER'S MANUAL
. . . .
. . . . . . . . . . .
. . . . . .
. . . . . . . . . . .
. . . . . . . . . .
49-6000248 Rev. 0 GEA 09-21

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GE02P08BAR and is the answer not in the manual?

Questions and answers

Related Manuals for GE GE02P08BAR

Summary of Contents for GE GE02P08BAR

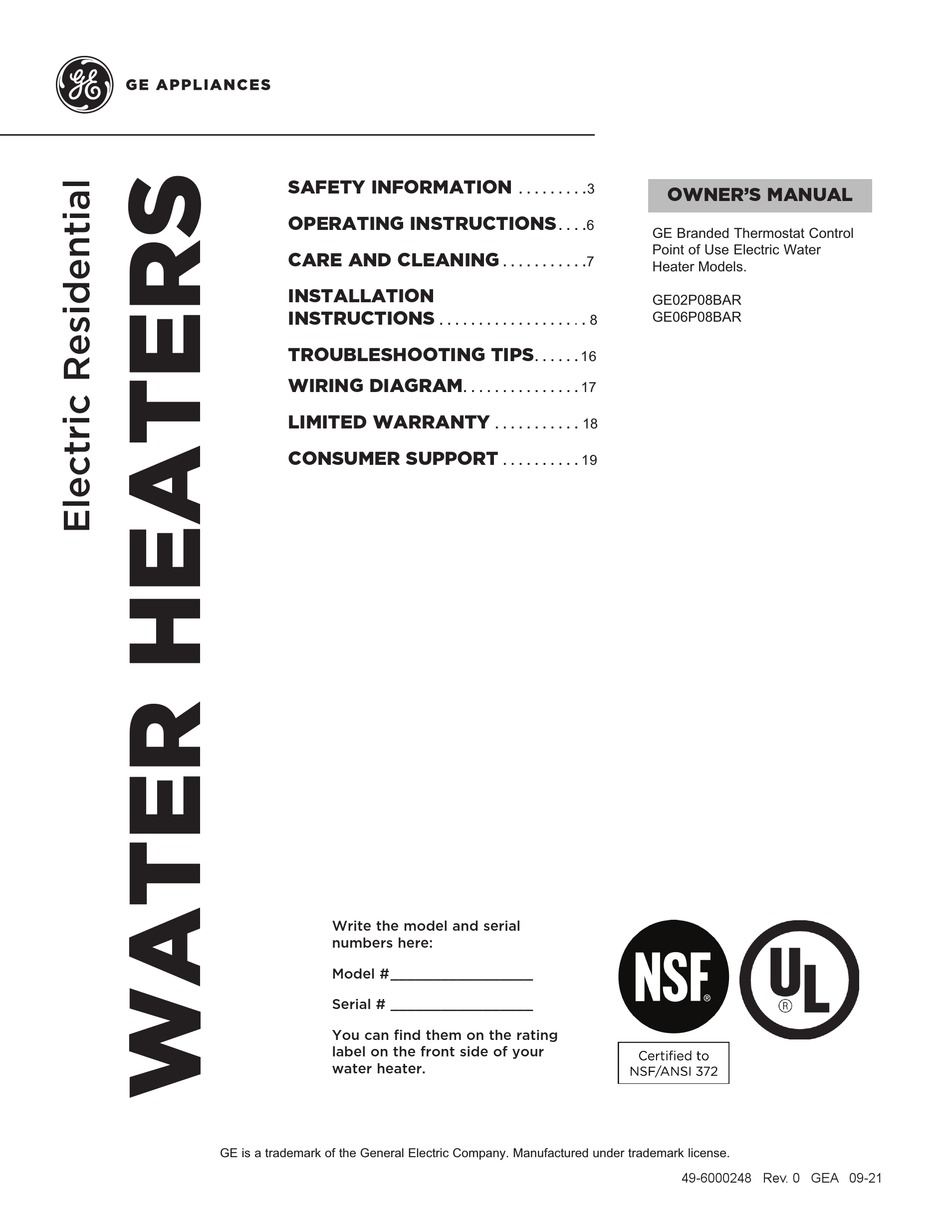

  • Page 1 SAFETY INFORMATION ..OWNER’S MANUAL OPERATING INSTRUCTIONS ..CARE AND CLEANING ... INSTALLATION INSTRUCTIONS ....TROUBLESHOOTING TIPS .
  • Page 2 THANK YOU FOR MAKING GE APPLIANCES A PART OF YOUR HOME.
  • Page 3 IMPORTANT SAFETY INFORMATION READ ALL INSTRUCTIONS BEFORE USING THE APPLIANCE WARNING WARNING Risk of Fire - DO NOT store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance. Keep rags and other combustibles away. WARNING If the water heater has been subjected to flood, fire, or physical damage, turn off power and water to the water heater.

  • Page 4: Water Temperature Adjustment

    IMPORTANT SAFETY INFORMATION READ ALL INSTRUCTIONS BEFORE USING THE APPLIANCE WATER TEMPERATURE ADJUSTMENT Time/Temperature Relationship in Scalds Water temperature over 125°F can cause severe burns instantly or death from scalds. Temperature control settings usually approximate tap water temperature. However, factors DANGER There is a Hot Water SCALD Potential if the could cause water temperature...

  • Page 5: Safety Controls

    IMPORTANT SAFETY INFORMATION READ ALL INSTRUCTIONS BEFORE USING THE APPLIANCE CAUTION SAFETY CONTROLS The cause of the high temperature condition must be investigated by a qualified service technician and corrective action must be taken before placing the water heater in service again.
  • Page 6 Operating Instructions Water Heater Capacity and Increasing Mixing Valves Temperature Setpoint: Extended Shutdown Periods NOTE: Refer to the Hydrogen Gas Caution in the Operating Instructions (see page 3). If adjustment is necessary..

  • Page 7: Care And Cleaning

    Care and Cleaning Exterior Surfaces Routine Preventive Maintenance Draining and Flushing Water Heater DANGER CAUTION Risk of Scald - Before manually Risk of Shock - Shut off power to operating the relief valve, make certain no one will the water heater before draining water. be exposed to the danger of coming in contact with DANGER the hot water released by the valve.

  • Page 8: Installation Instructions

    Installation Instructions LOCATION (Cont). Required clearances: LOCAL INSTALLATION REGULATIONS In these cases, additional clearance should be provided on the opposite side of the unit to allow for service access. CATCH PAN INSTALLATION POWER REQUIREMENTS LOCATION high-corrosive atmospheres NOTE: NOTE: THERMAL EXPANSION CAUTION Risk of Property Damage - The water heater should not be located in an...

  • Page 9: Component Installation

    Installation Instructions Component Installation Locate the temperature and pressure relief valve in the packaging. Refer to illustrations below for installing each component to the water heater. After completing installation of all components, make sure to check all connection points for water leaks and correct if required.

  • Page 10: Optional Wall Mounting

    Installation Instructions Optional Wall Mounting Tools needed: Mounting Instructions: Locate mounting slots on rear case of water heater.

  • Page 11: Water Supply Connections

    Installation Instructions WATER SUPPLY CONNECTIONS Refer to the illustration below for recommended installation. The HOT and COLD water connections are clearly marked and are ” NPT on all models. When connecting to the inlet/outlet ports, the use of female NPT tapered thread fittings with use of thread sealant is recommended.

  • Page 12: Relief Valve

    Installation Instructions RELIEF VALVE CAUTION WARNING To reduce the risk of excessive pressures and Risk of Unit Damage - The pressure rating of the relief valve must not temperatures in this water heater, install temperature exceed 150 PSI (1.03 MPa), the maximum working and pressure protective equipment required by local pressure of the water heater as marked on the codes and no less than a combination temperature...

  • Page 13: Electrical Connections

    Installation Instructions ELECTRICAL CONNECTIONS The voltage requirements and wattage load for the water heater are specified on the rating label on the of the water heater. WARNING WARNING Proper ground connection is...
  • Page 14 Installation Instructions ELECTRICAL CONNECTIONS A separate branch circuit with copper conductors, overcurrent protective device and suitable disconnecting means must be provided by a qualified electrician. All wiring must conform to local codes or latest edition of National Electrical Code ANSI/NFPA 70. The water heater is completely wired to the junction box at the top of the water heater.
  • Page 15 Installation Instructions The manufacturer’s warranty does not cover any damage or defect caused by installation, attachment or use of any type of energy-saving or other unapproved devices (other than those authorized by the manufacturer) into, onto or in conjunction with the water heater. The use of unauthorized energy-saving devices may shorten the life of the water heater and may endanger life and property.

  • Page 16: Troubleshooting

    Troubleshooting Before you call for service..Save time and money! Review the chart below first and you may not need to call for service. CAUTION For your safety, DO NOT attempt repair of electrical wiring, controls, heating elements or other safety devices.

  • Page 17: Wiring Diagram

    Wiring Diagram...
  • Page 18 This limited warranty is extended to the original purchaser and any succeeding owner for products purchased for home use within the USA. If the product is located in an area where service by a GE Appliances Authorized Servicer is not available, you may be responsible for a trip charge or you may be required to bring the product to an Authorized GE Appliances Service location for service.

  • Page 19: Consumer Support

    • Review the Troubleshooting Tips or Care and Cleaning sections of this Owner’s Manual. • Contact your local installer, plumbing contractor, or call GE Appliances Service and Support at 1-800-943-8186. NOTE: Your installer phone number may be located on the product label.
