Assembly (Continued)

Assembly Stretcher to Base –
3
P2
□
Assembly Stretcher (D) to Base (C) by slightly
FF
tighten Threaded Rod (FF), Half Moon Washer
(CC), Hex Nut (DD) with Wrench (EE) provided.
B
D (Reference Fig.4)
NOTE: Tight Slightly till the whole table set in.
Assembly Pedestal to Table
4
Top – P1
□
Place Table Top (A) upside down on a soft surface
such as blanket or carpet to prevent it from being
scratched.
□
Place Pedestals (B) into square blocks under top.
(Reference Fig.5)
□
Tighten Bolts (AA) by Allen Key (BB) from top
support rail through Pedestal (B) as shown.
(Reference Fig.5)
□
Do same above steps for 3 sides.
(Reference Fig.6)
□
Do same above steps for another Pedestal.
NOTE: Tight slightly till all bolts are completely in
each hole. Then tighten before turn Table over.
D
1
FF
C
G G
B
2
B
A
AA
BB

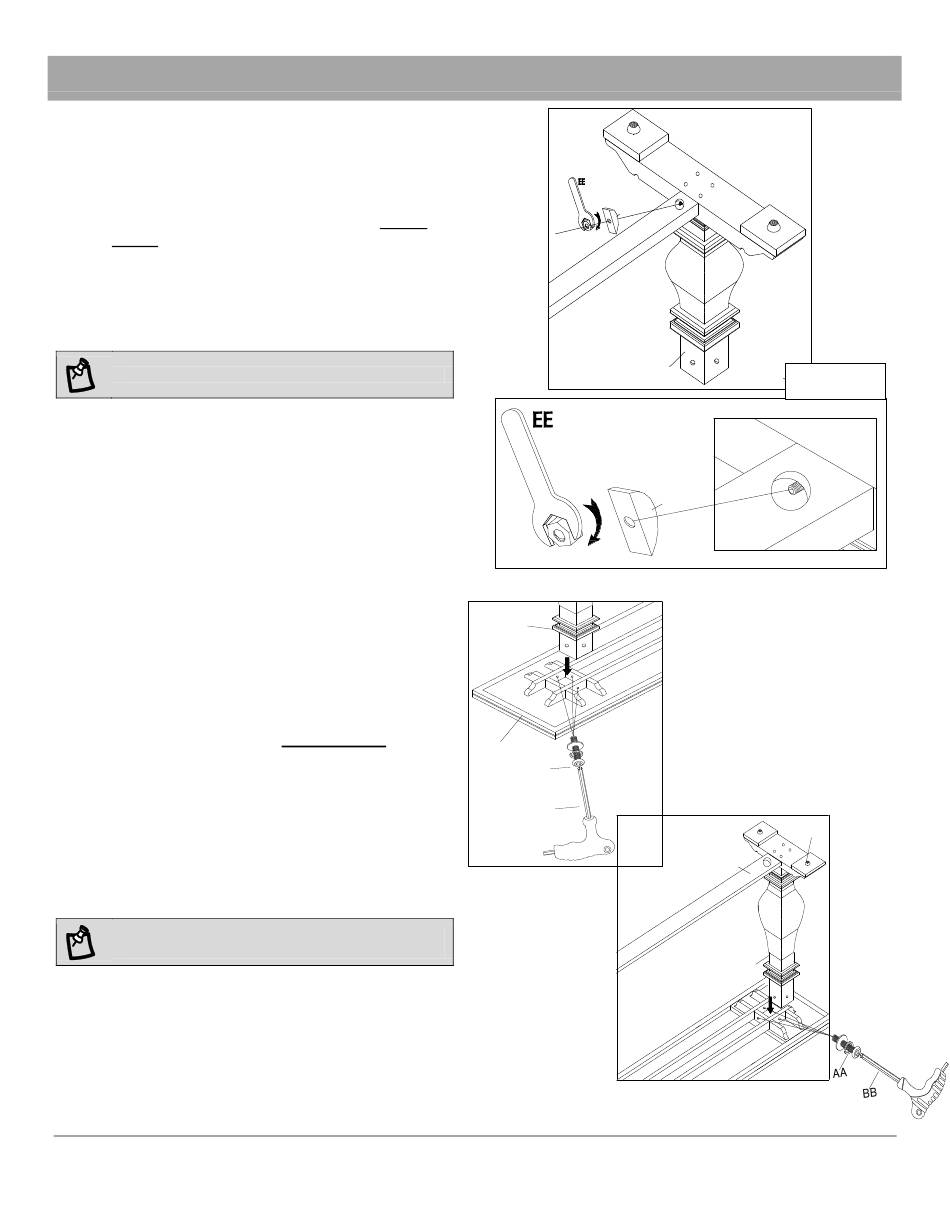

Fig.6
