INSTALLATION, OPERATION AND MAINTENANCE INSTRUCTIONS

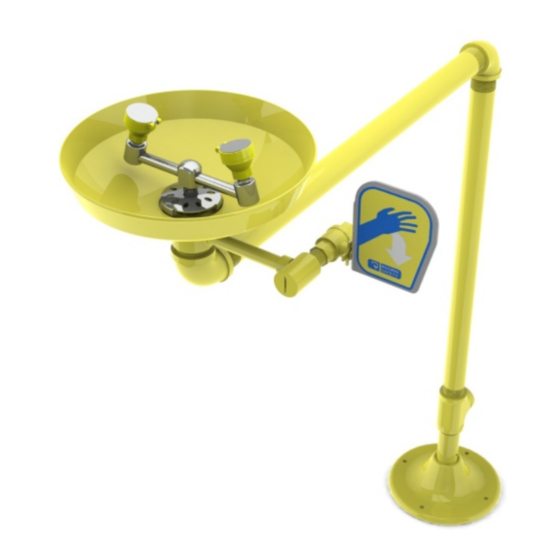

BARRIER FREE PEDESTAL MOUNTED EYE/FACE WASHES
TECHNICAL ASSISTANCE TOLL FREE TELEPHONE NUMBER
NOTES TO THE INSTALLER:
1. Please leave this documentation with the owner of the fixture when finished.
2. Please read this entire booklet before beginning the installation.
3. Check your installation for compliance with plumbing, electrical, ANSI Z358.1 and
other applicable codes.
Acorn Safety warrants that its products are free from defects in material or workmanship under normal use and
service for a period of one year from date of shipment or 18 months after the date of shipment from factory ,
whichever comes first. Acorn's™ liability under this warranty shall be discharged solely by replacement of repair of
defective material, provided Acorn™ is notified in writing within one year from date of shipment, F.O.B. Industry,
California.
This warranty does not cover installation or labor charges and does not apply to materials, which have been
damaged by other causes such as mishandling or improper care or abnormal use. The repair or replacement of the
defective materials shall constitute the sole remedy of the Buyer and the sole remedy of Acorn™ under this warranty.
Acorn™ shall not be liable under any circumstances for incidental, consequential or direct charges caused by defects
in materials, or any delay in the repair or replacement thereof. This warranty is in lieu of all other warranties
expressed or implied. Product maintenance instructions are issued with each unit and disregard or non-compliance
with these instructions will constitute an abnormal use condition and void the warranty. Stainless steel must be
protected on job sites during construction and must be properly maintained after the water has been introduced into
the safety product or Acorn's™ warranty is void.
Acorn Safety
a division of Acorn Engineering
Manual #7109-105-001
Models: S0310-BF, S0320-BF, S0330-BF & S0340-BF,
S0330-BF-AS, S0340-BF-AS
1.800.591.9360
TECHNICAL ASSISTANCE FAX: 1.626.855.4894
LIMITED WARRANTY
UNITED STATES AND CANADA
Company
ACORN SAFETY
P.O. BOX 3527
CITY OF INDUSTRY, CA 91744-0527
UNITED STATES OF AMERICA
www.acornsafety.com
™
Revised: 05/06/13
Advertisement
Table of Contents
Related Manuals for Acorn Safety S0310-BF
Summary of Contents for Acorn Safety S0310-BF
- Page 1 UNITED STATES AND CANADA Acorn Safety warrants that its products are free from defects in material or workmanship under normal use and service for a period of one year from date of shipment or 18 months after the date of shipment from factory , whichever comes first.
- Page 2 2. Separate parts from packaging and verify all necessary parts are accounted for and undamaged. Obtain missing or damaged parts from Acorn Safety prior to beginning installation. 3. Flush water supply lines prior to installation. This will remove unwanted debris from the lines and prevent unwanted blockages in the safety equipment.
- Page 3 INSTALLER) 2. Select appropriate 1/4” anchors, screws and washers (supplied by others) to install signage. 3. Attach inspection “H” tag, supplied, with plastic zip tie. Acorn Safety a division of Acorn Engineering Company ™ Manual #7109-105-001...
- Page 4 Eye Wash spray nozzle caps pop off immediately when actuated. If the ball valve does not operate smoothly check the actuating assembly for binding or missing parts. If the Acorn Safety a division of Acorn Engineering Company ™...
- Page 5 7100-208-000 1 1/4" PIPE NIPPLE 17.50" LONG, S/S 7101-031-022 BASE FLANGE ASSY YELLOW 7101-406-001 BASE FLANGE ASSY, S/S 7100-402-000 SAFETY EYEWASH SIGN FACEWASH W/ SS LIDS STAINLESS STEEL FLANGE Acorn Safety a division of Acorn Engineering Company ™ Manual #7109-105-001 Revised: 05/06/13 Page 5 of 5...
