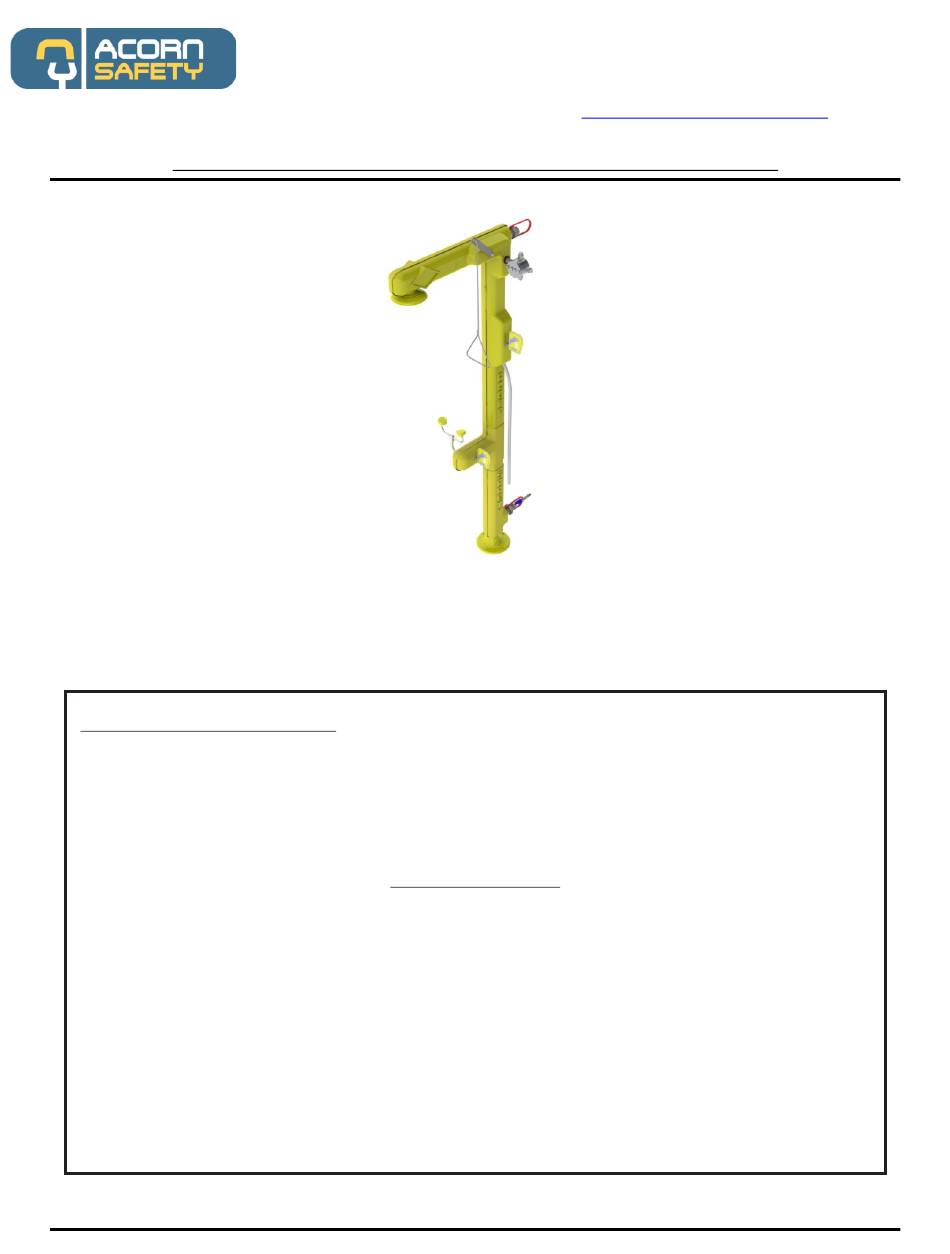

INSTALLATION, OPERATION AND MAINTENANCE INSTRUCTIONS
TECHNICAL ASSISTANCE TOLL FREE TELEPHONE NUMBER
NOTES TO THE INSTALLER:
1. Please leave this documentation with the owner of the fixture when finished.
2. Please read this entire booklet before beginning the installation.
3. Check your installation for compliance with plumbing, electrical, ANSI Z358.1 and
other applicable codes.
Acorn Safety warrants that its products are free from defects in material or workmanship under normal use and
service for a period of one year from date of shipment or 18 months after the date of shipment from factory,
whichever comes first. Acorn's™ liability under this warranty shall be discharged solely by replacement of repair of
defective material, provided Acorn™ is notified in writing within one year from date of shipment, F.O.B. Industry,
California.
This warranty does not cover installation or labor charges and does not apply to materials, which have been
damaged by other causes such as mishandling or improper care or abnormal use. The repair or replacement of the
defective materials shall constitute the sole remedy of the Buyer and the sole remedy of Acorn™ under this warranty.
Acorn™ shall not be liable under any circumstances for incidental, consequential or direct charges caused by defects
in materials, or any delay in the repair or replacement thereof. This warranty is in lieu of all other warranties
expressed or implied. Product maintenance instructions are issued with each unit and disregard or non-compliance
with these instructions will constitute an abnormal use condition and void the warranty. Stainless steel must be
protected on job sites during construction and must be properly maintained after the water has been introduced into
the safety product or Acorn's™ warranty is void.
Acorn Safety
a division of Acorn Engineering Company™
Manual #7109-208-001
HEAT TRACED SHOWER
Models: S1360-HT
1.800.591.9360
TECHNICAL ASSISTANCE FAX: 1.626.855.4894
LIMITED WARRANTY
UNITED STATES AND CANADA
ACORN SAFETY
P.O. BOX 3527
CITY OF INDUSTRY, CA 91744-0527
UNITED STATES OF AMERICA
WWW.ACORNSAFETY.COM
Revised: 11/12/18
Advertisement
Related Manuals for Acorn Safety S1360-HT
Summary of Contents for Acorn Safety S1360-HT
- Page 1 UNITED STATES AND CANADA Acorn Safety warrants that its products are free from defects in material or workmanship under normal use and service for a period of one year from date of shipment or 18 months after the date of shipment from factory, whichever comes first.
-
Page 2: Preliminary Steps
2. Separate parts from packaging and verify all necessary parts are accounted for and undamaged. Obtain missing or damaged parts from Acorn Safety prior to beginning installation. 3. Flush water supply lines prior to installation. This will remove unwanted debris from the lines and prevent unwanted blockages in the safety equipment. - Page 3 Ø20" [508] SPRAY PATTERN GENERAL NOTES: 1. ALL DIIMENSIONS ARE IN INCHES [MM]. *2. AREA NEEDS TO BE KEPT CLEAR TO COMPLY WITH ANSI Z358.1 Acorn Safety a division of Acorn Engineering Company™ Manual #7109-208-001 Revised: 11/12/18 Page 3 of 11...
- Page 4 Installation & Operation Manual S1360-HT: Heat Traced Combination Station, Eye/Face Wash, Plastic Showerhead & Drench Hose 23 5 " POWER INPUT 1-1/4" NPT JUNCTION BOX SUPPLY 84 7 " 88 3 " 64 5 " 42" 9 3 4 "...
-
Page 5: Installation Instructions
Protection Valve if desired. Make sure the tubing is not LOCATION kinked & draining water will not freeze. FPV DETAIL MOUNTING BOLTS LOCATED ON & HARDWARE TYPICAL NEXT PAGE 4X (PROVIDED BY INSTALLER) Acorn Safety a division of Acorn Engineering Company™ Manual #7109-208-001 Revised: 11/12/18 Page 5 of 11... - Page 6 1/2-14 ANTI-FREEZE VALVE CABLE TIES (BY OTHERS) 1/2-14 X 1-1/2“L Galv. NPT NIPPLE 1-1/4 X 1/2 NPT REDUCING BUSHING 1-1/4 NPT UNION EXPLODED VIEW Acorn Safety a division of Acorn Engineering Company™ Manual #7109-208-001 Revised: 11/12/18 Page 6 of 11...
- Page 7 TO WARM UP BEFORE TESTING WITH COLD (<50° F) SUPPLY WATER. EXISITING GROUND SCREW IN JUNCTION BOX YELLOW & GREEN GROUND WIRE TUBE GROUND NEUTRAL HEAT TRACED CABLE WIRE CAP THERMOSTAT SCHEMATIC Acorn Safety a division of Acorn Engineering Company™ Manual #7109-208-001 Revised: 11/12/18 Page 7 of 11...
- Page 8 Be prepared to inform medics on the type of substance that is causing the injury or contamination. 4. When finished push up on the pull handle to “OFF” position. Drenching fluid should stop. Acorn Safety a division of Acorn Engineering Company™ Manual #7109-208-001 Revised: 11/12/18...
- Page 9 Re-paint if necessary. Replace missing or defective equipment such as broken push paddles, missing signs and inspection tags. 2. Remove strainer and washout any debris collected –replace as required. Acorn Safety a division of Acorn Engineering Company™ Manual #7109-208-001 Revised: 11/12/18 Page 9 of 11...
- Page 10 Installation & Operation Manual Acorn Safety a division of Acorn Engineering Company™ Manual #7109-208-001 Revised: 11/12/18 Page 10 of 11...
- Page 11 ITEM # PART NUMBER DESCRIPTION 7106-191-000 HOUSING, UPPER, LEFT HAND, HEAT TRACED 7106-311-000 TRIM, RUBBER U SHAPE 0124-054-000 SCREW, #8-18X1/2", BUTTON HD, SS, THRD FORMING 7102-300-001 ASSEMBLY, PLASTIC SHOWER HEAD 7101-104-001 FACEWASH ASSY 7101-403-000 STAINLESS STEEL YOKE SUPPLY TUBE 7101-401-199 STAINLESS STL YOKE FTG, INTERNAL THRDS 7106-349-000 3/8"...
