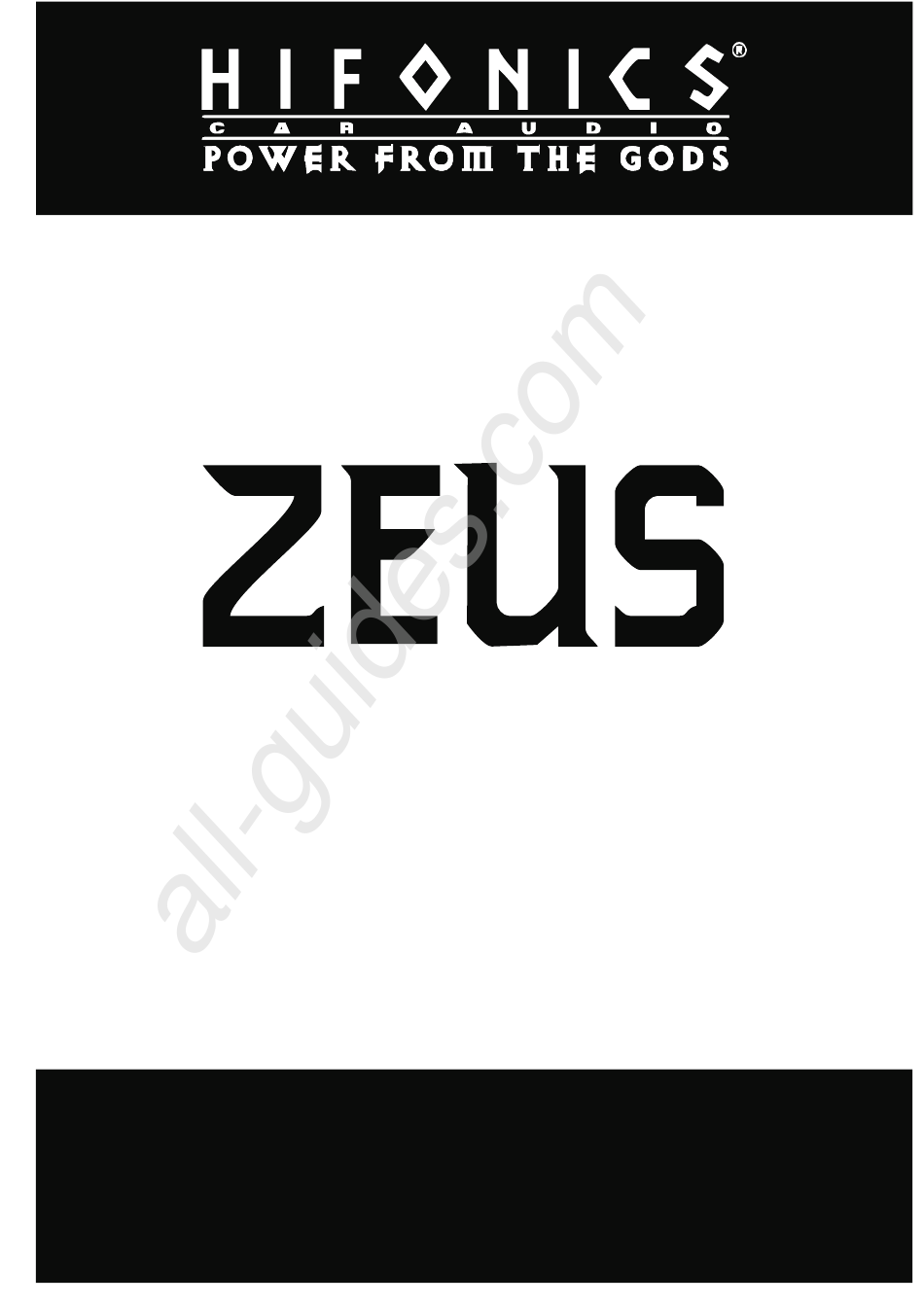

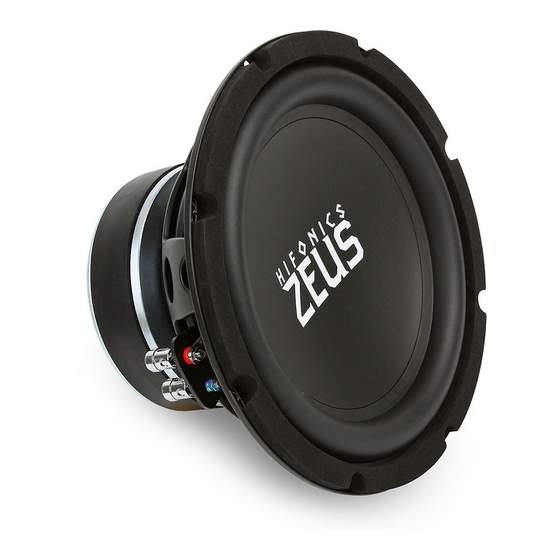

- Page 1 All manuals and user guides at all-guides.com SUBWOOFERS ZX10D2 / ZX10D4 ZX12S4 / ZX12D2 / ZX12D4...
- Page 2 CAR AUDIO SUBWOOFERS Congratulations on your purchase of the new Hifonics ZEUS Series subwoofer system. As Hifonics celebrates 25 years of shaking the mobile audio industry, the ZEUS subwoofer series has been revived. The ZEUS subwoofer series has a reputation in the industry as one of the most efficient and loudest subwoofers in its’...
-
Page 3: Enclosure Materials
All manuals and user guides at all-guides.com SUBWOOFER INSTALLATION AND WIRING DIRECTIONS Enclosure Materials Typically, 5/8” or 3/4” MDF (Medium Density Fiber Board) is best for most applications. 3/4” MDF is recommended. Enclosure Build Materials Connecting joints need to be glued and screwed to ensure no air escapes and joints do not separate under high pressure. - Page 4 All manuals and user guides at all-guides.com...
- Page 5 All manuals and user guides at all-guides.com...
-
Page 6: Glossary Of Terms
All manuals and user guides at all-guides.com Glossary of Terms The energy losses of relative damping (ratio of stored to dissipated energy or ratio of reactive to resistive energy). Free air resonance of driver in Hz. Qms Mechanical Q. Vas Volume of air equivalent to driver from the rest position. Cms Mechanical compliance of a loud speaker piston. - Page 7 All manuals and user guides at all-guides.com DVC 4-Ohms Parallel Series + 2-Ohms - 8-Ohms Parallel Coils / Parallel Subs - 1-Ohm Series Coils / Parallel Subs + 8-Ohms...
- Page 8 All manuals and user guides at all-guides.com DVC 2-Ohms Parallel Series + 1-Ohm - 4-Ohms Parallel Coils / Parallel Subs - 0.5-Ohms Series Coils / Parallel Subs + 2-Ohms...
- Page 9 All manuals and user guides at all-guides.com SVC 4-Ohms Standard - 4-Ohms Parallel Subs - 2-Ohms Series Subs + 8-Ohms...
- Page 10 All manuals and user guides at all-guides.com Subwoofer Dimensions Model A - Cut Out Diameter B - Mounting Depth ZX10 9.06” / 230mm 6.06” / 154mm ZX12 11.18” / 284mm 6.22” / 157.9mm...
- Page 11 All manuals and user guides at all-guides.com Maxxsonics Limited Warranty As the manufacturer of Maxxsonics, MB Quart, Autotek, Crunch and Hifonics car audio products, Maxxsonics USA Inc. Warrants to the original consumer purchaser the amplifier to be free from defects in material and workmanship for one (1) Year from date of purchase.
- Page 12 All manuals and user guides at all-guides.com PART#F808...
