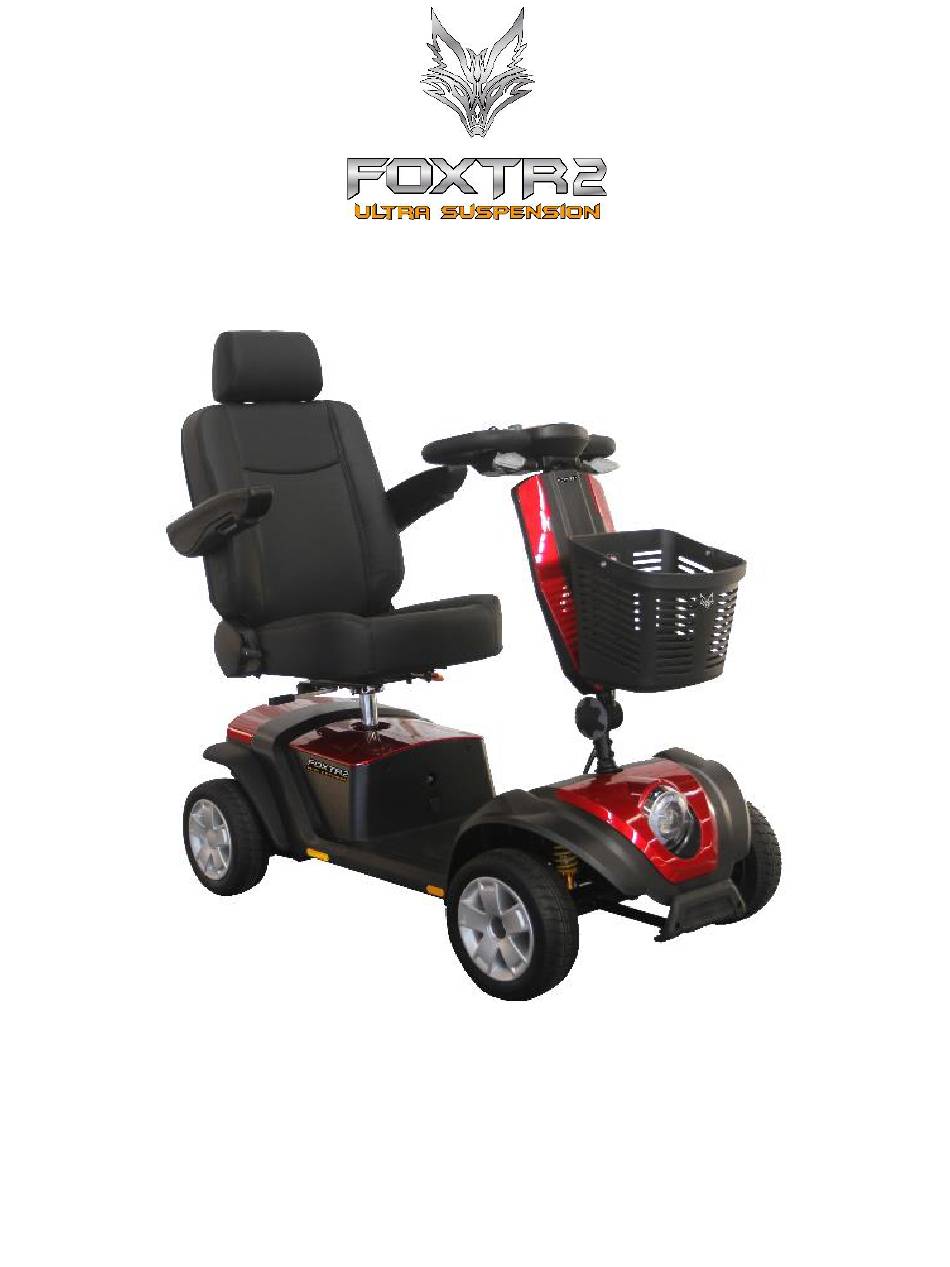

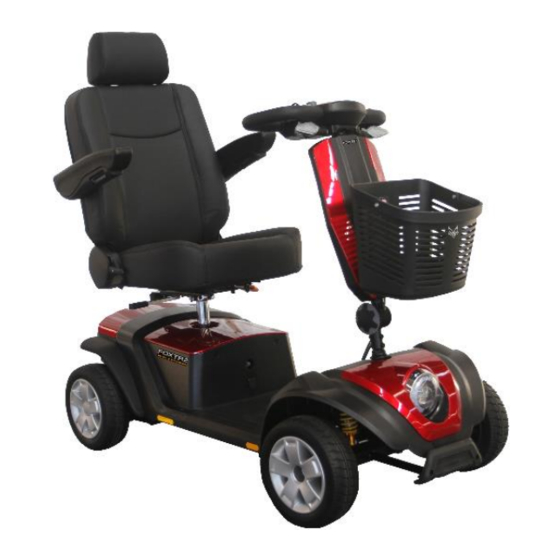

- Page 1 Mid-Size Mobility Scooter Model – FOXTR2 USER MANUAL Please ensure that this user manual is read and understood before using the scooter...
-
Page 2: Table Of Contents
Contents Introduction …………………………………………………………………….2 Intended Use ……………………………………………………………………2 Technical Specifications ………………………………………………………2 Feature Guide …………………………………………………………………..3 Safety Advice……………………………………………………………………4 Adjustments Tiller Angle Adjustment …………………………………………………….5 Seat Swivel ………………………………………………………………….5 Seat Removal ………………………………………………………………..6 Tiller Controls ……………………………………………………………………7 Brake Release / Free Wheel Operation………………………………………8 Starting to Drive Getting started………………………………………………………………..9 Moving off ……………………………………………………………………9 Steering …………………………………………………………………….10... -
Page 3: Introduction
Intended use The FOXTR 2 is intended for indoor or outdoor use in pedestrian areas by a single individual with limited mobility up to a maximum weight of 136kg (300 lbs). It’s precise maneuverability prohibits the use by persons experiencing balance difficulties. -
Page 4: Feature Guide
Feature guide FOXTR 2 Shopping Basket Wing Mirrors Padded seat and fold down backrest Flip up adjustable arms rests Seat swivel adjustment & seat depth slider Rear Shock Absorbers Solid tires Front LED light Tiller adjustment hand knob... -
Page 5: Safety Advice
• Connect any other devices to the batteries as this could cause permanent damage and void your warranty. • Use any other batteries/charger other than those supplied by FOXTR. • Travel through water or over soft terrain (mud, sand etc.) •... -
Page 6: Adjustments
Adjustments Tiller Angle Adjustment At the bottom right hand side of the scooter you will find the tiller angle adjustment hand wheel. To adjust the angle, loosen the handwheel by turning anti-clockwise. Once the desired angle is achieved, tighten by rotating clockwise. -
Page 7: Seat Removal
Seat Removal To remove the seat, fold down the back of the seat and simply lift the seat away from the chassis while lifting the seat swivel lever. Caution: Do not hang baggage or other objects on the back of the seat as this may affect stability. -
Page 8: Tiller Controls
2. Horn: The button operates the scooters horn. This should only be used to warn others of your presence and not as a rebuke of any form. Note: This should only be used to warn others of your presence and not as a rebuke of any form Maximum Speed Knob: The speed control enables you to set the maximum speed of the scooter. -
Page 9: Brake Release / Free Wheel Operation
1. Disengage the drive: Push the lever forward until you reach the stop position (indicated by the 'N' direction.) 2. Re-engage the drive: Simply push the lever toward the back of the scooter the Drive position- 'D' position. The scooter will not operate when the lever is in the disengaged position. The scooter must be turned off and on by the key switch to reset the circuits before it will resume normal operation. -
Page 10: Starting To Drive
Starting to Drive Getting Started Check list Please check the following before moving • You must fully charge the batteries prior to first use. ('See Batteries and Charging') • Select a space. • Mount the scooter by lifting the arm and sliding into the seat. •... -
Page 11: Steering
Steering Steering the scooter is light and easy. Ensure you give obstacles a wide clearance to avoid the rear wheels catching. When steering through limited spaces, turn the tiller in the direction that you wish to go and apply power gently. The scooter can turn very tightly with complete stability at slow speeds. Caution: NEVER turn sharply at high speeds as it can make the scooter unstable. -
Page 12: Battery And Battery Charger
You must still maintain charging the batteries even if the scooter is not to be used for a prolonged period of time (2 to 3 weeks). Failure to do so could result in permanent damage and render the batteries unusable. - Page 13 Batteries and Battery Chargers (Continued) Disposing and recycling of used battery Batteries must always be recycled correctly. Do not dispose of them with your domestic refuge. For further information regarding your nearest recycling facility please contact your local authority.
-
Page 14: Maintenance
General Maintenance We suggest that your scooter should undergo a full service at least once a year by an authorized FOXTR dealer. Check list Please check the following;... -
Page 15: Error Chart
Note: Should your scooter fail to operate after checking these possible problems, consult your local FOXTR dealer immediately. If the scooter is switched on and not operated for a period of time (approx 10 minutes) it may enter 'sleep' mode. -
Page 16: Further Information
Further information Safety Information Regarding Electromagnetic Interference (EMI) Mobility Scooters are designed to operate under certain conditions. However, radio waves or electromagnetic fields may affect the operation of the scooter. The source of EMI could be radio or television transmitters or portable devices such as mobile phones, portable CB radios etc. - Page 17 Product Stability Mobility Sooters are designed to allow the user flexibility of movement in restricted areas. Driving at maximum speed and attempting sharp turns can create a situation where the product becomes unstable. Therefore, it is essential that the user pay attention to the guidance set out in this manual. The main factors affecting stability are: •...
-
Page 18: Warranty
The Dealer from where the product was purchased is responsible for any warranty repairs. FOXTR Mobility warrants that if a fault occurs within this period due to faulty workmanship or materials that the product will be repaired (or replaced at the Company's discretion) free of charge. - Page 19 FOXTR Mobility 130 Bass Pro Mills Dr. Unit #62 Concord, ON L4K 5X2 Canada Tel: +1-905-532-9494 Email: Info@vitalmobility.ca www.foxtrscooters.com PART NO. FOXTR 2...
