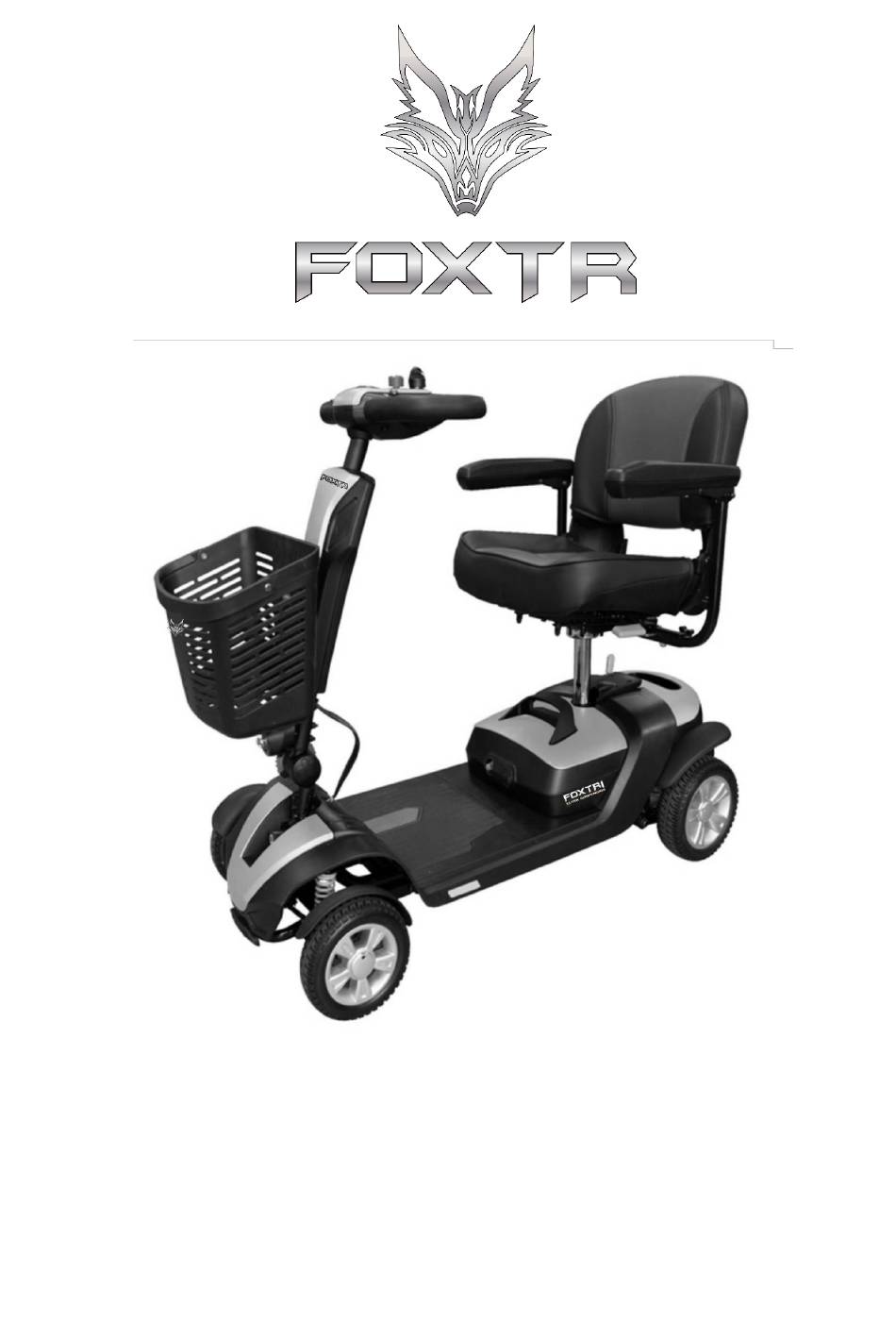

- Page 1 FOXTR I USER MANUAL Please ensure that this manual is read and understood before using the scooter April 2019...
-
Page 2: Table Of Contents
Contents Page Introduction………………………………………………………………………………………………………… 3 Intended Use .............................. 3 Technical Specifications ........................... 3 Feature Guide ............................4 Safety Advice ............................5 Assembly ..............................6 Adjustments ............................... 7 Tiller Angle Adjustment .......................... 7 Seat Swivel / Seat Depth ........................7 Seat Removal ............................8 Seat Height Adjustment ........................ -
Page 3: Introduction
Intended Use The FOXTR I is intended for indoor or outdoor use in pedestrian areas by a single individual with limited mobility up to a maximum weight of 136kg (300 lbs). Because of the scooter’s tight turning radius, this device is not suitable for individuals who experience balance difficulties. -
Page 4: Feature Guide
Feature Guide ‘FOXTR I’ 1. Tiller control head 2. Detachable swivel padded seat with fold down back 3. Detachable battery pack 4. Non-marking tires 5. Tiller angle adjustment 6. LED front light 7. Detachable shopping basket... -
Page 5: Safety Advice
Connect any other devices to the batteries as this could cause permanent • damage and void your warranty. Use any other batteries/charger other than those supplied by FOXTR Scooters. • Travel through water or over soft terrain (mud, sand etc.) •... -
Page 6: Assembly
Assembly Before use, your scooter will require the fitting of the tiller and seat post. To fit the tiller assembly, you will require the hand-knob and spring. Fit the hand-knob through the right-side hinge and locate the spring over the shaft of the bolt. Align both hinge joints and locate the thread of the hand- knob into the right side of the hinge. -
Page 7: Adjustments
Adjustments Tiller Angle Adjustment At the bottom right hand side of the scooter you will find the angle adjustment handwheel. To adjust the angle, loosen the handwheel by turning counter-clockwise. Once the desired angle is achieved tighten by rotating clockwise. Ensure the tiller is fully secured before using the scooter. -
Page 8: Seat Removal
Continued… Seat Removal To remove the seat, fold down the back of the seat and simply lift the seat away from the chassis while pushing the seat swivel lever forward. Do not hang baggage or other objects on the back of the seat as this may affect stability. Seat Height Adjustment Remove the seat and rear part of the scooter (see page 14). -
Page 9: Tiller Controls
Tiller Controls A – Battery Gauge This gauge gives you a guide to the amount of charge left in the scooter’s batteries. This will give the truest reading when the scooter is in motion. Always fully charge the batteries before driving your scooter and never let the batteries become completely drained, as this may cause permanent damage to the batteries. -
Page 10: Brake Release / Freewheel Operation
Brake Release / Freewheel Operation The brake release lever is situated at the right rear of the scooter. This lever allows you to disengage the drive mechanism and push the scooter in ‘freewheel’ mode. To disengage the drive, push the lever forward until you reach the stop position (indicated by the ‘N’ direction.) Simply push the lever toward the back of the scooter to re-engage the drive mechanism (‘D’... -
Page 11: Starting To Drive
Starting to Drive Getting Started Note: You must fully charge the batteries prior to first use (see ‘Batteries and Charging’) Select an area with plenty of space. Get on the scooter by lifting the arm and sliding onto the seat. Ensure the seat is securely locked in the forward-facing position before driving. -
Page 12: Ramps / Slopes
Charge the batteries completely (8-12 hours) prior to first use. The FOXTR I uses two 12Amp, 12 Volt AGM batteries. The batteries are located in a battery pack under the front of the seat. They can be easily removed by simply lifting by the handle(s) on the top. - Page 13 Continued… Battery Charger The battery charger is a 2-amp switch mode type off board. The battery charging port is located on the front of the battery box (see image below). Before using your scooter for the first time be sure to fully charge the batteries, this may take up to 12 hours. To charge the batteries connect the 3-pin male charger plug into the charging sockets –...
-
Page 14: Dismantling & Re-Assembly
Dismantling & Re-Assembly The scooter can be easily and quickly dismantled for easy transportation. Always remove the seat and battery pack before attempting to disassemble the scooter. Lift the front part of the scooter by the seat post whilst pulling up on the release lever as indicated by the arrow below. -
Page 15: Maintenance
Routine Maintenance We suggest that your scooter should undergo a full service at least once a year by an authorised FOXTR Scooters dealer. Please check the following on a weekly basis: Tires are in good condition •... - Page 16 Check brake connections. Note: Should your scooter fail to operate after checking these possible problems, consult your local FOXTR Scooters dealer immediately. If the scooter is switched on and not operated for a period of time (approx. 10 minutes) it...
-
Page 17: Further Information
Further Information Safety Information Regarding Electromagnetic Interference (EMI) Scooters and powerchairs are designed to operate under certain conditions. However, radio waves or electromagnetic fields may affect the operation of the scooter. The source of EMI could be radio or television transmitters or portable devices such as mobile phones, portable CB radios etc. - Page 18 Continued… Product Stability Scooters and powered wheelchairs are designed to allow the user flexibility of movement in restricted areas. Driving at maximum speed and attempting sharp turns can create a situation where the product becomes unstable. Therefore, it is essential that the user pay attention to the guidance set out in this manual.
-
Page 19: Charging Socket Locations
Charging Socket Locations The FOXTR I has two locations to charge the batteries. It has a socket on the rear of the tiller. For off board charging, the scooter has charging sockets on the front of the battery pack. Tiller:... -
Page 20: Warranty Terms And Conditions
Warranty Terms and Conditions This is to certify that your FOXTR Scooters product is warranted for a period of 24 months for electronic, controller and drive-train components, 12 months for batteries and limited lifetime warranty on the frame. All warranties are activated on the date of original purchase.
