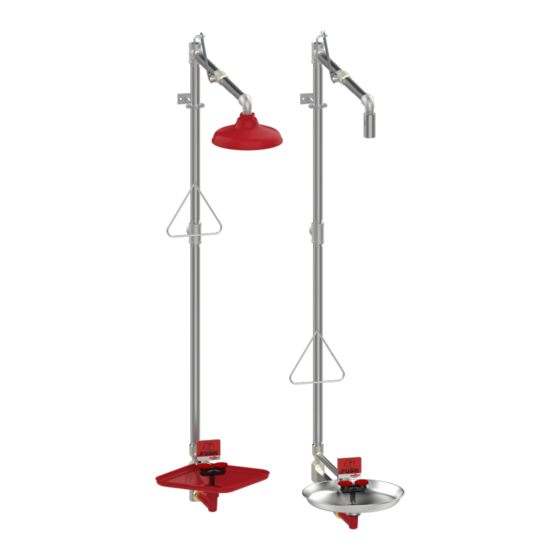

Stingray Systems
SERIES S5000
Wall Mounted Emergency
Combination Shower &
Eye/Face Wash
In order to comply with the ANSI Z358.1 Standard the
following notes should be observed:
• Station should be assembled and installed in accordance
with the manufacturer's instructions, including flushing fluid
delivery requirements.
• Station should be in accessible locations that require no
more than 10 seconds to reach. The combination station
shall be located on the same level as the hazard and the
path of travel shall be free of obstructions that may inhibit
its immediate use.
• Station should be located in an area
identified with a highly visible sign
positioned so the sign shall be visible
within the area served by the combination
station. The area around the combination
station shall be well lit.
• Eye/Face wash shall be positioned with nozzles not less
then 33 inches (83.8 cm) and no greater than 45 inches
(114.3 cm) from surface on which user stands and 6 inches
(15.3 cm) minimum from wall or nearest obstructions.
• Shower shall be positioned so that the shower head is not
less than 82 inches (208.3 cm) nor more than 96 inches
(243.8 cm) from surface on which user stands.
• Shower spray pattern shall have a minimum unobstructed
diameter of 20 inches (50.8 cm) at 60 inches (152.4 cm)
above surface on which user stands, and center of spray
pattern shall be located at least 16 inches (40.6 cm) from
any obstruction.
• Eye/Face wash flow pattern shall be not less then 33 inches
(83.8cm) and no greater than 53 inches (134.6 cm) from
surface on which user stands and 6 inches (15.3 cm)
minimum from wall or nearest obstruction.
• If shut off valves are installed in the supply line for
Maintenance purposes, provisions shall be made to
prevent unauthorized shut off.
• Refer to ANSI Z358.1 to ensure compliance.
NOTES: It is recommended to flush pipes prior to installing
emergency fixture. Instructions should be reviewed prior to
starting the installation. Remove parts from packaging and
verify all necessary parts are accounted for and not
damaged. Please contact Stingray Systems for any missing
or damaged parts prior to starting installation.
Stingray Systems recommends that you work safely at all
times and in a manner consistent with the OSHA Lock/Tagout
standard, 29 CFR 1910.147 and other applicable standards.

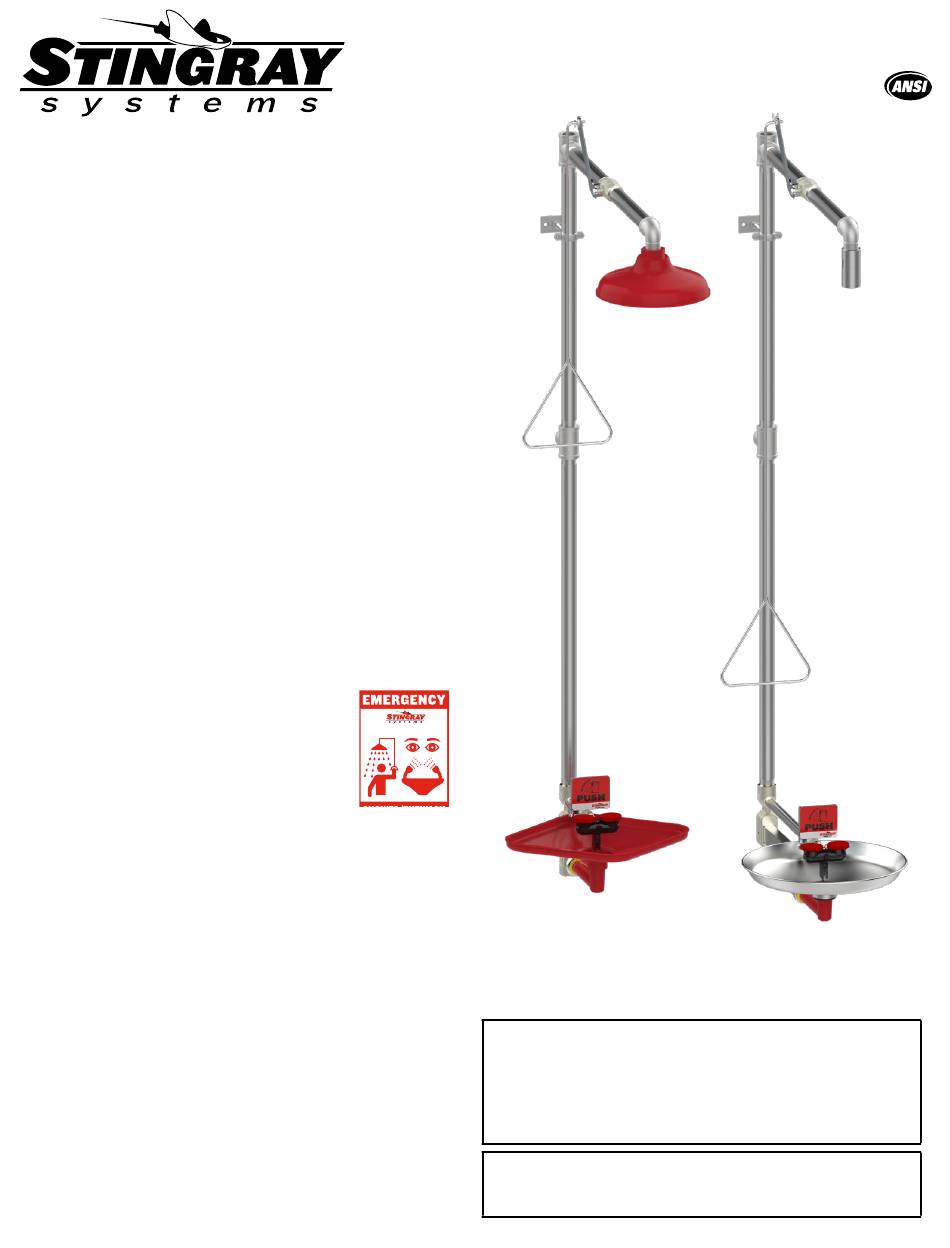

Installation &
Maintenance Manual
Certified to ANSI Z358.1
Advertisement
Table of Contents
Related Manuals for Stingray S5000 Series
Summary of Contents for Stingray S5000 Series
- Page 1 • If shut off valves are installed in the supply line for Stingray Systems recommends that you work safely at all maintenance purposes, provisions shall be made to times and in a manner consistent with the OSHA Lock/Tagout prevent unauthorized shut off.
- Page 2 Installation & Maintenance Manual Certified to ANSI Z358.1 INSTALLATION SUPPLIES Supplies Included: • Wall Mount Plates (2) P • Dust Covers P • Wall Mount Plate Screws P • Shower Arm Assembly P • Upper Manifold Assembly P • Shower Head P •...
- Page 3 GUARANTEE and check for debris. Ensure liner can move. Clean thermostat. Replace thermostat if needed. We guarantee the Stingray Systems product to be free from defects in workmanship and material, and for a period of Leaks around Remove thermostat and check O-ring. If thermostat.
- Page 4 Installation & Maintenance Manual Certified to ANSI Z358.1 WEEKLY TEST RECORD Month Test 1 Test 2 Test 3 Test 4 January February March April June July August September October November December January February March April June July August September October November December Plumbed emergency eyewashes, eye/face washes, drench...
