Stingray Systems
SERIES T3000
Floor Mounted

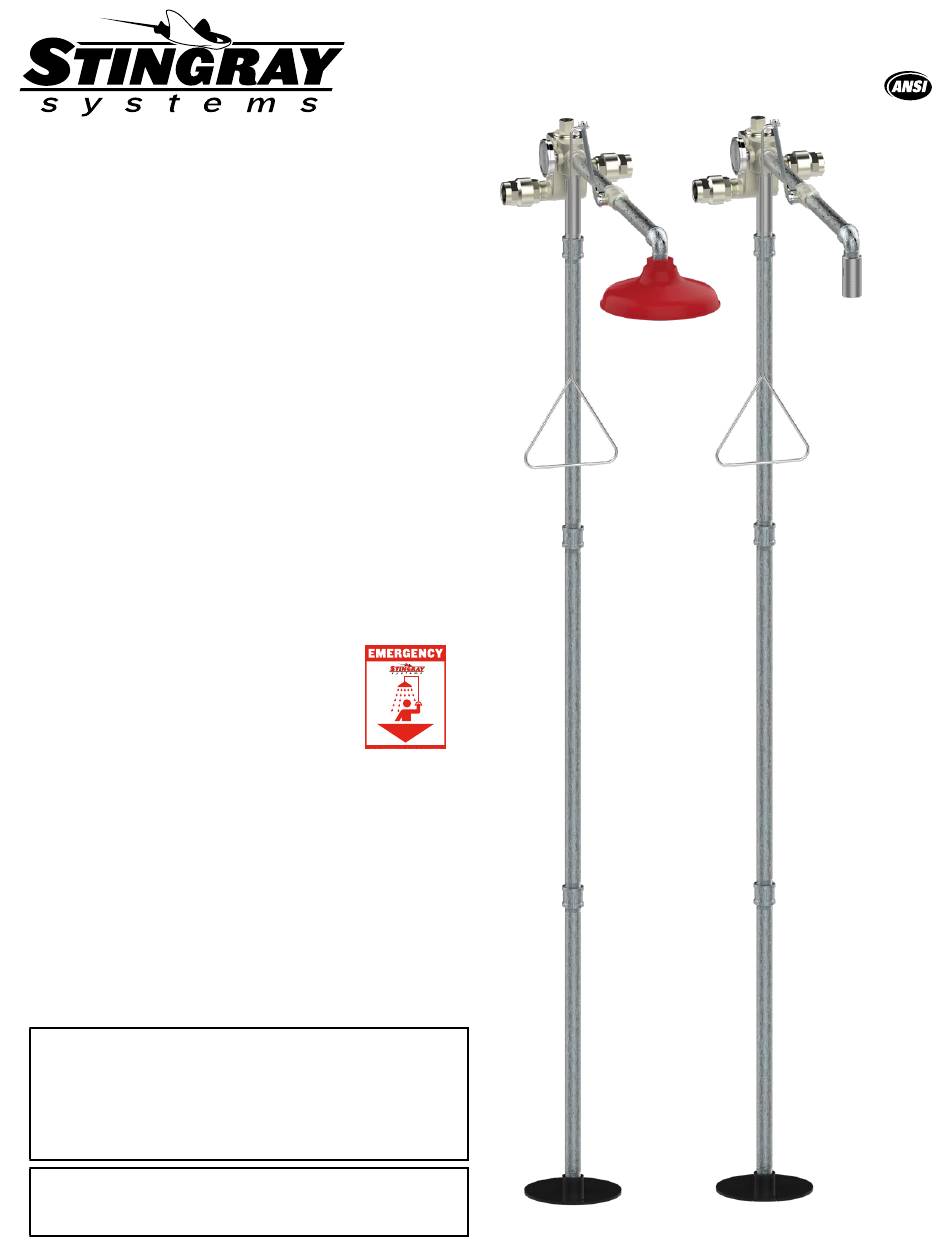

Emergency Shower
In order to comply with the ANSI Z358.1 Standard the
following notes should be observed:
• Station should be assembled and installed in accordance
with the manufacturer's instructions, including flushing fluid
delivery requirements.
• Station should be in accessible locations that require no more
than 10 seconds to reach. The shower station shall be located
on the same level as the hazard and the path of travel shall be
free of obstructions that may inhibit its immediate use.
• Station should be located in an area
identified with a highly visible sign
positioned so the sign shall be visible
within the area served by the station. The
area around the station shall be well lit.
• Shower shall be positioned so that the showerhead is not
less than 82 inches (208.3 cm) nor more than 84 inches
(213.4 cm) from surface on which user stands.
• Shower spray pattern shall have a minimum unobstructed
diameter of 20 inches (50.8 cm) at 60 inches (152.4 cm)
above surface on which user stands, and center of spray
pattern shall be located at least 16 inches (40.6 cm) from
any obstruction.
• If shut off valves are installed in the supply line for
maintenance purposes, provisions shall be made to
prevent unauthorized shut off.
• Refer to ANSI Z358.1 to ensure compliance.
NOTES: It is recommended to flush pipes prior to installing
shower fixture. Instructions should be reviewed prior to starting
the installation. Remove parts from packaging and verify all
necessary parts are accounted for and not damaged. Please
contact Stingray Systems for any missing or damaged parts
prior to starting installation.
Stingray Systems recommends that you work safely at all
times and in a manner consistent with the OSHA Lock/Tagout
standard, 29 CFR 1910.147 and other applicable standards.
Installation &
Maintenance Manual
Certified to ANSI Z358.1
