- Page 1 热升华转印打样机 Proofing Roller Sublimation Machine 操作说明 Operational Instruction ZS-BA20120 ZS-BA20170 东莞市至上印花机械有限公司 22-1 Best Printing Machine Limited Website: Http://www.zsheatpress .com Email: sales@zsheatpress.com...
- Page 2 期的检查与维护。 在使用过程中遇到疑难问题时，请和本公司的技术服务部联系。 Thanks for choosing our new designed Best brand heat-transfer machine. This manual will lead you to know how to install, operate, set the function, and fault diagnosis to exclude such matters. Incorrect installation and use may cause damage to the heat transfer machine or other accident occurs.
- Page 3 There must be someone when the machine working. Completely separate the blanket and roller in time when power cutting. 主要技术数据 Mainly Technical Data 供电方式: 单相 Power Supply: 1-Phase 2 line 东莞市至上印花机械有限公司 22-3 Best Printing Machine Limited Website: Http://www.zsheatpress .com Email: sales@zsheatpress.com...
- Page 4 Use small fun & brush to clean the PCB board, keep the blanket & drum clean and dry. Add heat oil every week, 8-10L after 3-5monthes. No other stuff should be put in the Machine’s electronic box. 东莞市至上印花机械有限公司 22-4 Best Printing Machine Limited Website: Http://www.zsheatpress .com Email: sales@zsheatpress.com...

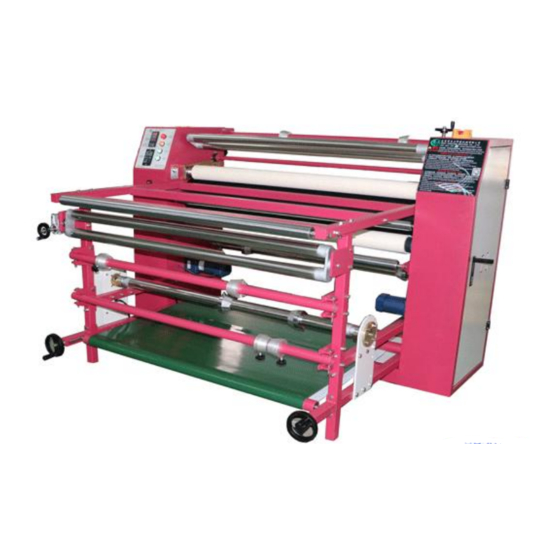

- Page 5 结构说明 Construction of Machine 1.型号 辊筒印花机 Single Roller 滚筒宽度 Drum width- 1200mm Roller sublimation type ZS- BA 20120 滚 筒 直 径 Drum Diameter/ 品牌 Brand 200mm 2.外观及各部件说明 主机/Head 东莞市至上印花机械有限公司 22-5 Best Printing Machine Limited Website: Http://www.zsheatpress .com Email: sales@zsheatpress.com...
- Page 6 Isolation paper colleting shaft Blanket-Roller separation adjustment wheel Speed controlling Isolation paper shaft 此表格为上图部位解释/this table is for the above photo. 东莞市至上印花机械有限公司 22-6 Best Printing Machine Limited Website: Http://www.zsheatpress .com Email: sales@zsheatpress.com...
- Page 7 毛毯驱动轴 5 分链轮&法兰 Blanket 调速器 Drive Axis 5” Sprocket & Flange Speed Controller 输动带驱动轴 5 分链轮&法兰 放料座 Transfer Line Drive Axis 5” Sprocket & Protection Paper Axle’s Seat Flange 东莞市至上印花机械有限公司 22-7 Best Printing Machine Limited Website: Http://www.zsheatpress .com Email: sales@zsheatpress.com...
- Page 8 Speed controller for waste-paper 东莞市至上印花机械有限公司 22-8 Best Printing Machine Limited Website: Http://www.zsheatpress .com Email: sales@zsheatpress.com...
- Page 9 Protection Paper Axle Blanket Supporting Flange 大滚筒/Drum 排风扇/Fan 毛毯驱动轴 传动轴法兰 Blanket Drive Axle Transport Axle Flange 侧板/Side Plate 毛毯/Blanket 电箱折板 齿条支撑 Electric box plate Rack Supporting 工作架/Work Table 东莞市至上印花机械有限公司 22-9 Best Printing Machine Limited Website: Http://www.zsheatpress .com Email: sales@zsheatpress.com...
- Page 10 Paper transport shaft Paper collecting shaft PVC Belt Adjustment wheel PVC Belt 东莞市至上印花机械有限公司 22-10 Best Printing Machine Limited Website: Http://www.zsheatpress .com Email: sales@zsheatpress.com...
- Page 11 脚杯/Supporting Point 拉料轴/Fabric Through Axle 双滚防护罩/Two Roll Axles Cover 双滚轴/Double Axles 120W 电机比速 1：36/120W 拉杆/Bar Motor Speed 1:36 输送带（6305 轴承&调节套） UCPA204 Convey-er Belt 调节输送带 框架 500/Frame 500 Adjusting Convey-er Belt 东莞市至上印花机械有限公司 22-11 Best Printing Machine Limited Website: Http://www.zsheatpress .com Email: sales@zsheatpress.com...
- Page 12 Item /Item Name /Item Name 集电环 毯带轴 / Collecting Ring /Blanket shaft 温控器 交流接触器 /Temperature controller /AC Connector 涡轮蜗杆 计时器 /Turbine /Time-meter 压力调节装置 断路器 / Pressure adjustment device /Circuit-breaker 东莞市至上印花机械有限公司 22-12 Best Printing Machine Limited Website: Http://www.zsheatpress .com Email: sales@zsheatpress.com...
- Page 13 Item Item 涡轮/Turbine 毛毯驱动链轮 Drive Chains & Wheel for the blanket 毯带调节装置/ 驱动轴/Drive shaft Blanket adjustment device 散热风扇/ Fan for Cooling 电机轮链/Motor Chains & wheel 调节轮/Wheel 急停开关/Stop 辊筒轴/Roller axis 东莞市至上印花机械有限公司 22-13 Best Printing Machine Limited Website: Http://www.zsheatpress .com Email: sales@zsheatpress.com...
-
Page 14: How To Operate The Machine
操作与控制 How to Operate the Machine 1. 机械部分 开机前检查一下机械传动部分是否正常 ,调正好毯带张力,待温度适合您的工作温度时即可开始工作. 1） 确认机体良好接地和电源接线无误后，推上机箱内断路器，然后，按下“总电源”按钮，再按下变频控制面板 上“运行”键，把频率调在适当位置上。 2） 按下“加温”键，设定好所需温度，此数据靠客户根据不同的面料成分而定。我厂建议，客户在到达设定温度 时先用小块面料和转印纸转印。如温度过高或过低，可作出相应调整，以保证大幅转印品的质量。 3） 在工作台的放布架和放纸架上放好面料和转印纸，主机温度达到转印效果时，把面料平整的拉至台板上，使之 东莞市至上印花机械有限公司 22-14 Best Printing Machine Limited Website: Http://www.zsheatpress .com Email: sales@zsheatpress.com... - Page 15 2. Press “Start”, and set up the temp. You needed, the temp. Is decided by the material type printing pattern, and if the color is dark or light. Pls use a small piece to make the best before mass production, so you would not waste the material.
- Page 16 ③ Power light, press it once, then the power is on and press it again, then it would turn the power off. This bottom also is the Urgent Stop bottom when needed. ④ Heating, it control the machine’s heating system, press it to make the heating system start, 东莞市至上印花机械有限公司 22-16 Best Printing Machine Limited Website: Http://www.zsheatpress .com Email: sales@zsheatpress.com...
- Page 17 ⑤ Start, it control the Frequency Transformer’s power. The Start Panel. 当前测定温度 PV-The current temp. 设定温度 SV-The setting temp. The Temp. Display & Control Panel. 东莞市至上印花机械有限公司 22-17 Best Printing Machine Limited Website: Http://www.zsheatpress .com Email: sales@zsheatpress.com...
- Page 18 ①更换 温度控制不了 ②温控仪坏掉 ②更换 ①毯带太松 ①拉紧毯带 ②链轮打滑 ②拧紧卡紧螺丝 ③轴承卡死 ③更换轴承 筒体不转 ④变频器故障或交流接触器故障 ④更换 ⑤电机或减速机故障 ⑤更换 ①温度探头坏掉 ①更换 显示温度 ②碳刷与集电环之间接触不吻合 ②用细砂纸磨到吻合 浮动 ③集电环上有异物 ③除去异物 ①电热管老化或烧掉 ①更换 总开关跳闸 ②集电环击穿 ①更换集电环 ②更换固态继电器 东莞市至上印花机械有限公司 22-18 Best Printing Machine Limited Website: Http://www.zsheatpress .com Email: sales@zsheatpress.com...
- Page 19 ① Heat tube is broken ①Replace The total switch trip ② Collecting ring is ①Replace the ring ②replace the relay Breakdown 注:检修排除故障必须具备专业知识的技术人员.如确不能排除,请及时与生产厂家联系. 2 日常维护/Daily Maintenance 定期检查机内积尘,并及时清理,保持各部件清洁。 定期检查减速机及链条链轮是否正常,如发现异常情况及时处理。 定期检查电线连接桩头,发现机动或烧焦现象应及时处理。 定期清除变频器散热器及外壳的灰尘。 东莞市至上印花机械有限公司 22-19 Best Printing Machine Limited Website: Http://www.zsheatpress .com Email: sales@zsheatpress.com...
- Page 20 7. 更换好所有发热管后，再次检查所有螺丝是否拧紧。 1. Open the Electrics Box and check if the Heat Tube is broken or not. 2. Unfix the copper connection’s screw. 3. Pull out the heating tube. 东莞市至上印花机械有限公司 22-20 Best Printing Machine Limited Website: Http://www.zsheatpress .com Email: sales@zsheatpress.com...
- Page 21 Attention!!! No Inflammable goods should be around the machine, or it may cause a fire. Pls be careful! 警告！ ！ ！经过专业培训的电工人员才能维修机器。 Attention!!! Only Trained Electrical Engineer can repair this machine, pls do not open the Electrics Box by yourself. 东莞市至上印花机械有限公司 22-21 Best Printing Machine Limited Website: Http://www.zsheatpress .com Email: sales@zsheatpress.com...
- Page 22 东莞市至上印花机械有限公司 22-22 Best Printing Machine Limited Website: Http://www.zsheatpress .com Email: sales@zsheatpress.com...
