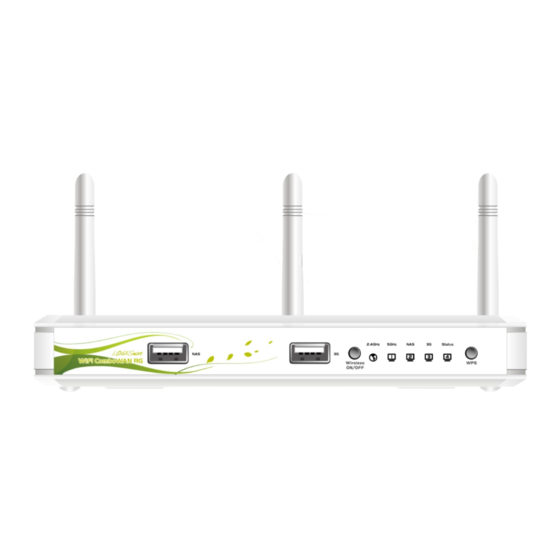

Advance Multimedia Internet Technology CDW68AAM-U01 User Manual

Wifi broadband router
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
User Manual
CDW68AAM-U01
WiFi Broadband Router
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CDW68AAM-U01 and is the answer not in the manual?

Questions and answers

Related Manuals for Advance Multimedia Internet Technology CDW68AAM-U01

Summary of Contents for Advance Multimedia Internet Technology CDW68AAM-U01

  • Page 1 User Manual CDW68AAM-U01 WiFi Broadband Router...

  • Page 2: Copyright

    Copyright The contents of this publication may not be reproduced in any part or as a whole, stored, transcribed in an information retrieval system, translated into any language, or transmitted in any form or by any means, mechanical, magnetic, electronic, optical, photocopying, manual, or otherwise, without the prior written permission.

  • Page 3: Table Of Contents

    Table of contents COPYRIGHT ..........................2 FCC INTERFERENCE STATEMENT ..................2 CHAPTER 1 INTRODUCTION ..................... 4 1.1 PACKAGE LIST....................4 1.2 HARDWARE INSTALLATION................ 5 CHAPTER 2 GETTING STARTED WITH EASY SETUP UTILITY........8 2.1 EASY SETUP BY WINDOWS UTILITY............8 2.2 EASY SETUP BY CONFIGURING WEB PAGES ........

  • Page 4: Chapter 1 Introduction

    Chapter 1 Introduction CDW68AAM-U01 is a 802.11n concurrent dual band mobile broadband router with USB slots for 3G modem card and USB storage. It can support 3G/4G mobile broadband. It also provides a physical WAN port for fixed-line broadband and supporting varieties of WAN connection types, such as PPPoE, static IP, dynamic IP (DHCP client), PPTP, and L2TP.

  • Page 5: Hardware Installation

    1.2 Hardware Installation A. Hardware configuration...
  • Page 6 B. Buttons Button Behavior Continually press 3 seconds to enter WPS PBC mode for 2.4G wireless WPS Button Continually press 8 seconds to enter WPS PBC mode for 5G wireless Continually press 3 seconds to switch on/off for 2.4G wireless radio Wireless On/Off Button Continually press 8 seconds to switch on/off for 5G wireless radio...
  • Page 7 D. Installation Steps DO NOT Note: connect the router to power before performing the installation steps below. Step 1. Plug a USB modem into USB port. Step 2. Insert RJ45 cable into LAN Port on the back panel of the router. Then plug the other end of into computer.

  • Page 8: Chapter 2 Getting Started With Easy Setup Utility

    Chapter 2 Getting Started with Easy Setup Utility There are two approaches for you to set up the WiFi Broadband Router quickly and easily. One is through executing the provided Windows Easy Setup Utility on your PC, and the other is through browsing the device web pages and configuration.
  • Page 9 Step 4： Click “Next” to continue. Step 5： Select Wireless Enable, and then click “Next” to continue. Note. You can configure 2.4GHz wireless and 5GHz wireless separately. Step 6： Enter SSID, Channel and Security options, and then click “Next” to continue.
  • Page 10 Step 7： Click” Let me select WAN service by myself” to select WAN service manually. Step 8： Select 3G Service by clicking 3G icon to continue. Step 9-1： Select “Auto-Detection” and the Utility will try to detect and configure the required 3G service settings automatically.
  • Page 11 Step 9-2： Or you can select “Manual” and manually fill in the required 3G service settings provided by your ISP. Click “Next” to continue. Step 10: Click “Next” to save your setting. Step 11： The WiFi Broadband Router is rebooted to make your entire configuration take effect.
  • Page 12 Step 12： Click “Next” to test the Internet connection or you can ignore test. Step 13： Click “Next” to test WAN Networking service. Step 14： Setup is completed.

  • Page 13: Easy Setup By Configuring Web

    2.2 Easy Setup by Configuring Web Pages You can also browse web UI to configure the device. Browse to Activate the Setup Wizard Type in the IP Address (http://192.168.123.254) Type in the default password “admin” in the System Password and then click ‘login’...
  • Page 14 Configure with the Setup Wizard Step 1 Change System Password. Set up your system password. (Default：admin) Step 2: Select Time Zone Step 3: Select WAN Type. Choose Auto-Detecting or Manually to set WAN Type.
  • Page 15 Step 4: Select Wan Type. If you want to use 3G service as the main Internet access, please set the WAN interface as “Wireless WAN” and the WAN type as “3G”. Step 5: 3G Mode. Select Auto-Detection then click “Next” to continue. Step 6: Set up your Wireless Network.
  • Page 16 Step 7: Setup your Encryption Key here, then click”Next” to continue. Step 8: Apply your Setting. Then click Apply Setting. Step 9: Click Finish to complete it.

  • Page 17: Chapter 3 Making Configuration

    Chapter 3 Making Configuration Whenever you want to configure your network or this device, you can access the Configuration Menu by opening the web-browser and typing in the IP Address of the device. The default IP Address is: 192.168.123.254 Enter the default password “admin” in the System Password and then click ‘login’ button. Then, you can browse the “Advanced”...
  • Page 18 3.1.1. Network Setup LAN IP Address: The local IP address of this device. The computers on your network must use the LAN IP address of this device as their Default Gateway. You can change it if necessary. Subnet Mask: Input your Subnet mask. (All devices in the network must have the same subnet mask.) The default subnet mask is 255.255.255.0.
  • Page 19 A. 3G This device supports different WAN types of connection for users to connect to remote wireless ISP, such as 3G (WCDMA, HSxPA, HSPA+, CDMA2000, EV-DO, TD-SCDMA), iBurst, or Wi-Fi Hotspot. Note. Users need to insert USB modem card for 3G WAN connections.
  • Page 20 1. WAN Type: Choose 3G for WAN connection. 2. Dial-Up Profile: Please select Auto-Detection or Manual. You can choose “Auto-Detection”, and the router will try to detect and configure the required 3G service settings automatically. Otherwise, you can select “Manual”, and manually fill in the required 3G service settings provided by your carrier or ISP.
  • Page 21 this device. Note. The items with * above are only available when choosing Manual for Dial-up Profile. B. iBurst Note. Users need to insert USB modem card for iBurst WAN connections. 1. WAN Type: Choose iBurst for WAN connection. 2. Account: Enter the User Name for iBurst connection. 3.
  • Page 22 Manually: The device won’t try to connect to Internet until users press “connect” button at Status page. Once Internet connection is established, this device will drop the connection if maximum idle time is reached. 7. Maximum Idle Time: The amount of time of inactivity before disconnecting Internet connection.
  • Page 23 C. Static IP Address 1. WAN Type: Choose Static IP Address. 2. WAN IP Address: Input the IP address you got from ISP. 3. Subnet Mask: Input the subnet mask of IP address you got from ISP. 4. WAN Gateway: Input the IP address of WAN gateway you got from ISP. 5.
  • Page 24 D. Dynamic IP Address 1. WAN Type: Choose Dynamic IP Address. 2. Host Name: Optional, required by some ISPs, for example, @Home. 3. ISP registered MAC Address: Some ISP (Cable company) will record your MAC address on PC. You can press “Clone” button to copy the MAC address on your PC here, or you can input it manually.
  • Page 25 E. PPP over Ethernet 1. WAN Type: Choose PPP over Ethernet. 2. IPv6 Dual Stack: If your ISP supports IPv6 dual stack, you can check this check box to get an IPv4 address and an IPv6 address via one PPPoE connection. After you check this check box, you also need to enable IPv6 function at Advanced Setting->IPv6 setting page.
  • Page 26 8. PPPoE Service Name: Optional. Input the service name if your ISP requires it. 9. Assigned IP Address: You can input a IP address if you got a fix IP address from ISP. 10. Maximum Transmission Unit (MTU): Most ISP offers MTU value to users. The default MTU value is 0 (auto).
  • Page 27 F. PPTP 1. WAN Type: Choose PPTP. 2. IP Mode: You can select “Static IP Address” or “Dynamic IP Address”. 3. My IP Address*, My Subnet Mask*, and Gateway IP*: The IP address, subnet mask, and IP address of gateway your ISP assigned to you. 4.
  • Page 28 9. Maximum Transmission Unit (MTU): Most ISP offers MTU value to users. The default MTU value is 0 (auto). 10. IGMP Proxy: Enable this feature allows multicast stream (e.g. IPTV stream) to pass-through this device. Note. The items with * above are only available when choosing Static IP Address in IP mode.
  • Page 29 G. L2TP 1. WAN Type: Choose L2TP. 2. IP Mode: You can select “Static IP Address” or “Dynamic IP Address”. 3. My IP Address*, My Subnet Mask*, and Gateway IP*: The IP address, subnet mask, and IP address of gateway your ISP assigned to you. 4.
  • Page 30 MTU value is 0 (auto). 10. IGMP Proxy: Enable this feature allows multicast stream (e.g. IPTV stream) to pass-through this device. Note. The items with * above are only available when choosing Static IP Address in IP mode.
  • Page 31 . Combo WAN Setting With Combo WAN feature, you can choose one primary WAN connection, and set another WAN connection for backup. Otherwise, you can also choose “Load Sharing” to use Ethernet WAN and 3G WAN simultaneously. The combo WAN status will be showed at Internet Setup page. Press “Settings”...
  • Page 32 Load Sharing The feature of Load Sharing will activate 3G WAN and Ethernet WAN simultaneously. 1. Combo WAN Mode: Choose Load Sharing mode. 2. Remote Host for Keep Alive: Type an IP address or domain name of remote host to detect if Internet connection is alive.
  • Page 33 Failover With this function enabled, when the primary WAN connection is broken, the device will automatically switch to secondary WAN connection and keep you connected to Internet. Meanwhile, if the device detects that the primary WAN connection is recovered, your Internet connection will be switched from secondary WAN back to primary WAN.
  • Page 34 3.1.2. DHCP Server 1. DHCP Server: You can have total four (DHCP1~DHCP4) different settings of DHCP server configurations on this device. If you divide LAN network into different groups via VLAN ID (Please refer to Advanced Setting->VLAN for detail), you can have different DHCP server settings for each of them.
  • Page 35 offers an IP to your PC. Click on “Save” to store your settings or click “Undo” to give up the changes. Press “Clients List” and the list of DHCP clients will be shown consequently. Press “Fixed Mapping” and the DHCP Server will reserve the special IP for designated MAC address.
  • Page 36 3.1.3. Wireless 2.4G Settings Here you can configure settings for 2.4GHz wireless functions. Wireless settings allow you to set the wireless configuration items. 1. Wireless Module: You can enable or disable wireless function. 2. Wireless Schedule: You can limit Wi-Fi functions in a period of time if required. 3.
  • Page 37 network: Open Shared, Auto, WPA-PSK, WPA, WPA2-PSK, WPA2, WPA-PSK/WPA2-PSK, or WPA /WPA2. Open Open system authentication simply consists of two communications. The first is an authentication request by the client that contains the station ID (typically the MAC address). This is followed by an authentication response from the AP/router containing a success or failure message.
  • Page 38 WPA2 WPA2 add uses AES and TKIP for encryption, the others are same the WPA. WPA-PSK/WPA-PSK2 Another encryption options for WPA-PSK-TKIP and WPA-PSK2-AES, the others are same the WPA-PSK. WPA/WPA2 Another encryption options for WPA-TKIP and WPA2-AES, the others are same the WPA. By pressing “WPS Setup”, you can configure and enable the easy setup feature WPS (Wi-Fi Protection Setup) for your wireless network.
  • Page 39 By pressing “WDS Setup”, you can connect this device to another AP via WDS connection. 1. Wireless Bridging: You can enable this function by selecting “Enable”. 2. Remote AP MAC 1~4: Enter the MAC address for remote AP that you want to connect via WDS.
  • Page 40 3.1.4. Wireless 5G Settings Here you can configure settings for 5GHz wireless functions. Wireless settings allow you to set the wireless configuration items. 1. Wireless Module: You can enable or disable wireless function. 2. Wireless Schedule: You can limit Wi-Fi functions in a period of time if required. 3.
  • Page 41 Open Open system authentication simply consists of two communications. The first is an authentication request by the client that contains the station ID (typically the MAC address). This is followed by an authentication response from the AP/router containing a success or failure message. An example of when a failure may occur is if the client's MAC address is explicitly excluded in the AP/router configuration.
  • Page 42 WPA-PSK/WPA-PSK2 Another encryption options for WPA-PSK-TKIP and WPA-PSK2-AES, the others are same the WPA-PSK. WPA/WPA2 Another encryption options for WPA-TKIP and WPA2-AES, the others are same the WPA. By pressing “WPS Setup”, you can configure and enable the easy setup feature WPS (Wi-Fi Protection Setup) for your wireless network.
  • Page 43 By pressing “WDS Setup”, you can connect this device to another AP via WDS connection. 4. Wireless Bridging: You can enable this function by selecting “Enable”. 5. Remote AP MAC 1~4: Enter the MAC address for remote AP that you want to connect via WDS.
  • Page 44 3.1.5. Change Password You can change the System Password here. We strongly recommend you to change the system password for security reason. Click on “Save” to store your settings or click “Undo” to give up the changes.

  • Page 45: Forwarding Rules

    3.2 Forwarding Rules 3.2.1 Virtual Server This product’s NAT firewall filters out unrecognized packets to protect your Intranet, so all hosts behind this product are invisible to the outside world. If you wish, you can make some of them accessible by enabling the Virtual Server Mapping. A virtual server is defined as a Service Port, and all requests to this port will be redirected to the computer specified by the Server IP.

  • Page 46: Special Ap

    Service Port Server IP Enable 192.168.123.1 192.168.123.2 1723 192.168.123.6 Click on “Save” to store your settings or click “Undo” to give up the changes. 3.2.2 Special AP Some applications require multiple connections, like Internet games, Video conferencing, Internet telephony, etc. Because of the firewall function, these applications cannot work with a pure NAT router.

  • Page 47: Miscellaneous

    3.2.3 Miscellaneous 1. IP Address of DMZ Host DMZ (Demilitarized Zone) Host is a host without the protection of firewall. It allows a computer to be exposed to unrestricted 2-way communication for Internet games, Video conferencing, Internet telephony and other special applications. 2.

  • Page 48: Security Setting

    3.3 Security Setting The security setting includes Packet Filter, Domain Filter, URL Blocking, MAC Address Control, L2TP/PPTP Client, and miscellaneous.
  • Page 49 3.3.1 Packet Filters Packet Filter includes both outbound filter and inbound filter. And they have same way to setting. Packet Filter enables you to control what packets are allowed to pass the router. Outbound filter applies on all outbound packets. However, inbound filter applies on packets that destined to Virtual Servers or DMZ host only.
  • Page 50 For source or destination IP address, you can define a single IP address (4.3.2.1) or a range of IP addresses (4.3.2.1-4.3.2.254). An empty implies all IP addresses. For source or destination port, you can define a single port (80) or a range of ports (1000-1999).
  • Page 51 3.3.2 Domain Filters Domain Filter prevents users under this device from accessing specific URLs. 1. Domain Filter: Check if you want to enable Domain Filter. 2. Log DNS Query: Check if you want to log the action when someone accesses the specific URLs.
  • Page 52 3.3.3 URL Blocking URL Blocking will block LAN computers to connect with pre-define Websites. The major difference between “Domain filter” and “URL Blocking” is Domain filter require user to input suffix (like .com or .org, etc), while URL Blocking require user to input a keyword only. In other words, Domain filter can block specific website, while URL Blocking can block hundreds of websites by simply a keyword.
  • Page 53 3.3.4 MAC Control MAC Address Control allows you to assign different access right for different users and to assign a specific IP address to a certain MAC address. 1. MAC Address Control: Check “Enable” to enable the “MAC Address Control”. All of the settings in this page will take effect only when “Enable”...
  • Page 54 3.3.5 VPN-L2TP Client This router can connect to a remote L2TP server after WAN connection is established. Enable VPN-L2TP Client, and press “Edit” button to add connection detail.
  • Page 55 1. Name: Input a name of this profile. 2. Peer IP/Domain: Input the IP address or domain name of remote L2TP server. 3. User name: enter the user name to dial to remote L2TP server. 4. Password: enter the password to dial to remote L2TP server. 5.
  • Page 56 3.3.6 VPN-PPTP Client This router can connect to a remote PPTP server after WAN connection is established. Enable VPN-PPTP Client, and press “Edit” button to add connection detail.
  • Page 57 1. Name: Input a name of this profile. 2. Peer IP/Domain: Input the IP address or domain name of remote PPTP server. 3. User name: enter the user name to dial to remote PPTP server. 4. Password: enter the password to dial to remote PPTP server. 5.
  • Page 58 3.3.7 Miscellaneous 1. Administrator Time-out: The time of no activity to logout automatically, you may set it to zero to disable this feature. 2. Remote Administrator Host/Port In general, only Intranet user can browse the built-in web pages to perform administration task.
  • Page 59 6. Disable PPTP passthrough: The PPTP passthrough is enabled by default. You can disable here. 7. Disable L2TP passthrough: The L2TP passthrough is enabled by default. You can disable here. 8. Disable IPSec passthrough: The IPSec passthrough is enabled by default. You can disable here.

  • Page 60: Advanced Setting

    3.4 Advanced Setting The Advanced Setting includes System log, Dynamic DNS, QoS, SNMP, Routing, System Time, Schedule Rule, IPv6, and VLAN settings.
  • Page 61 3.4.1 System Log This page support two methods to export system logs to specific destination by means of syslog (UDP) and SMTP(TCP). The items you have to setup including: 1. IP Address for Sys log: Host IP of destination where sys log will be sent to. Check Enable to enable this function.
  • Page 62 3.4.2 Dynamic DNS To host your server on a changing IP address, you have to use dynamic domain name service (DDNS). So that anyone wishing to reach your host only needs to know the name of it. Dynamic DNS will map the name of your host to your current IP address, which changes each time you connect your Internet service provider.
  • Page 63 3.4.3 QoS Quality of Service is the ability to provide different priority to different applications, users, or data flows, or to guarantee a certain level of performance to a data flow. 3.4.3.1 Smart QoS Cross-layer QoS : you can select enable/disable the QoS control QoS Mode : you can select Smart-QoS or User defined QoS rule for your own QoS control Bandwidth of upstream / bandwidth of Downstream : you can input the value of...
  • Page 64 applications for higher priority in his system, the system will automatically reserve 10% of minimum rate of bandwidth to other application, and share the rest minimum rate of bandwidth (100-10)/3=30% each to Game/VoIP/Video. If Mr. Wang’s son plays on-line game in the morning, the total bandwidth will all reserve to his son.
  • Page 65 Create a QoS Rule : you can enable the rule, and select QoS class type as below. Class : You can create your own QoS rule by different classes as below. Class Description IP address base TCP port UDPPORT UDP port MAC base DSCP DSCP base...
  • Page 66 DSCP setting : you can set your own DSCP value here. DiffServ Code Point : you can select code value. Service Type : you can select their service type. Function : PRI Function data- Priority : 1~6 DSCP marking : you can add your inbound / outbound packets a DCSP marking, please see one example as below.
  • Page 67 System will show you all your QoS rule as below Note 1. : You can move up or down the priority of all rules by pointing the ‘↑’or ’↓’ if you want to change the priority. Note 2. : You can unmark any rule if you do not want it enable now. Provide different priority to different users or data flows, or guarantee a certain level of performance.
  • Page 68 5. QoS Priority: This defines the priority level of the current Policy Configuration. Packets associated with this policy will be serviced based upon the priority level set. For critical applications High or Normal level is recommended. For non-critical applications select a Low level.
  • Page 69 3.4.4 SNMP In brief, SNMP, the Simple Network Management Protocol, is a protocol designed to give a user the capability to remotely manage a computer network by polling and setting terminal values and monitoring network events. 1. Enable SNMP: You must check “Local”, “Remote” or both to enable SNMP function. If “Local”...
  • Page 70 3.4.5 Routing If you have more than one routers and subnets, you will need to enable routing table to allow packets to find proper routing path and allow different subnets to communicate with each other. The routing table allows you to determine which physical interface address to use for outgoing IP data grams.
  • Page 71 3.4.6 System Time 1. Time Zone: Select a time zone where this device locates. 2. Auto-Synchronization: Check the “Enable” checkbox to enable this function. Besides, you can select a NTP time server to consult UTC time. 3. Sync with Time Server: Click on the button if you want to set Date and Time by NTP Protocol manually.
  • Page 72 3.4.7 Scheduling You can set the schedule time to decide which service will be turned on or off. 1. Schedule: Check to enable the schedule rule settings. 2. Add New Rule: To create a schedule rule, click the “Add New Rule” button. You can edit the Name of Rule, Policy, and set the schedule time (Week day, Start Time, and End Time).
  • Page 73 3.4.8 IPv6 This device supports several IPv6 applications. You can choose Static IPv6, DHCPv6, PPPoEv6, 6to4, and IPv6 in IPv4 tunnel according to your requirements. 3.4.8.1 Static IPv6 IPv6: Disable or enable the IPv6 functions. IPv6 Connection: you can choose Static IPv6 from the list. WAN IPv6 address settings: you can add IPv6 address / subnet prefix length / default Gateway / Primary DNS address and secondary DNS address.
  • Page 74 3.4.8.2 DHCPv6 IPv6 DNS settings: you may obtain IPv6 DNS automatically or set DNS address manually for Primary DNS address and secondary DNS address. LAN IPv6 address settings: you can add LAN IPv6 address, and IPv6 Link-Local address will be showed automatically. Address auto configuration setting: Disable or enable this auto configuration setting.
  • Page 75 3.4.8.3 PPPoEv6 PPPoE settings: you need to type username and password of PPPoE connection. The service name is only required when ISP asks you to input it. MTU is 1492 by default. LAN IPv6 address settings: you can add LAN IPv6 address, and IPv6 Link-Local address will be showed automatically.
  • Page 76 3.4.8.4 6 to 4 IPv6 DNS settings: The 6 to 4 address will be showed automatically when WAN gets a public IPv4 address. You may set DNS address manually for Primary DNS address and secondary DNS address. LAN IPv6 address settings: you can add LAN IPv6 address, and IPv6 Link-Local address will be showed automatically.
  • Page 77 3.4.8.5 IPv6 in IPv4 Tunnel IPv6 address in IPv4 Tunnel settings: you may add remote / local IPv4 address and local IPv6 address, and then set DNS address manually for Primary DNS address and secondary DNS address. LAN IPv6 address settings: you can add LAN IPv6 address, and IPv6 Link-Local address will be showed automatically.
  • Page 78 3.4.9 VLAN The VLAN function allows you to divide local network into different “virtual LAN”. In some cases, ISP may need router to support “VLAN tag” for certain kinds of services (e.g. IPTV) to work properly. There are four LAN ports with this router, so you can have up to 4 VLAN if required. Those four LAN ports belong to one VLAN by default.
  • Page 79 3.5 NAS With NAS function on this device, you can share your USB drive or USB HDD via network easily. 3.5.1 Disk Uility 1. Format This utility would format the certain partition. Please be noted! This action will clear all your data in this partition. You will not be able to recover it any more.
  • Page 80 3.5.3 FTP Service Configuration These settings are for FTP service. 1. FTP: Enable or disable functions of FTP server on this device. 2. FTP Port: The default port is 21, but sometimes you might want to hide your FTP service by changing it.
  • Page 81 In this page, you can manage the user account. Key in the user name and password then press “Add” could let you add a new user. If you want to delete an account, select it and click “Delete” button. 3.5.5 iTunes Server This function could enable the built-in iTunes Server to support iTunes which is a media player released by Apple.
  • Page 82 3.5.6 Download Assistant With Download Assistant, you don’t need to turn the computer all day on to wait for download to be finished. This device will help you download files from remote FTP server or HTTP server automatically. You can also choose BT for P2P file download. 3.5.6.1 FTP 1.
  • Page 83 3.5.6.2 HTTP 1. Job Name: It’s for you to remember the job easily, and the device would use this name to info you when the job is done. 2. URL: The URL for the file you want to download. You have to use this format: IP/path/file, you don’t have to add protocol part such like “http://”.
  • Page 84 3.5.6.3 BT (Bit Torrent) You can download file by using BT (Bit Torrent). Start BT download First, you have to get a seed file, which we called “torrent”. Then click the “Open” link on UI, it would pop up a sub menu to let you upload. Or, if your torrent file could be download from network, you could just enter a URL.
  • Page 85 BT download status After you upload the torrent, download job would be started immediately. The device could support 3 concurrent download jobs, other jobs would wait in job queue. If one of the three running job is done, the next new job would be started. At this page, you could see the download process and the bandwidth.
  • Page 86 3.5.8 Web HDD This Web HDD can allow you to enter HDD by web UI, and also can allow you to let ‘guest’ to enter the ‘public’ area only. 3.5.9 Miscellaneous This setting is for UPnP AV media server service.

  • Page 87: Tool Box

    3.6 Tool Box...
  • Page 88 3.6.1 System Info You can view the System Information and System log, and download/clear the System log. 3.6.2 USSD USSD is a way to let subscribers finish some application on line, such as recharge SIM card. Enter the USSD command you got from ISP or carrier, and press button “Send” to send this request to ISP or carrier.
  • Page 89 3.6.3 Firmware Upgrade You can upgrade firmware by clicking “Upgrade” button. 3.6.4 Backup Setting You can backup your settings by clicking the “Backup Setting” function item and save it as a bin file. Once you want to restore these settings, please click Firmware Upgrade button and use the bin file you saved.
  • Page 90 3.6.5 Reset to Default You can also reset this device to factory default settings by clicking the Reset to default function item. 3.6.6 Reboot You can also reboot this device by clicking the Reboot function item. 3.6.7 Miscellaneous 1. MAC Address for Wake-on-LAN: Input MAC address of host that you want to use WOL. 2.

  • Page 91: Chapter 4 Troubleshooting

    Chapter 4 . Troubleshooting This Chapter provides solutions to problems for the installation and operation of the WiFi Combo Router. You can refer to the following if you are having problems. 1 Why can’t I configure the router even the cable is plugged and the LED is lit? Do a Ping test to make sure that the WiFi Combo Note:...
  • Page 92 Select Properties to ensure that all drivers are installed properly. Look under Device Status to see if the device is working properly. Click “OK”. 2 What can I do if my Ethernet connection does not work properly? Make sure the RJ45 cable connect with the router. Ensure that the setting on your Network Interface Card adapter is “Enabled”.
  • Page 93 Why my 3G connection is keep dropping? Please check 3G signal strength from your ISP in your environment is above middle level. 4 Something wrong with the wireless connection? Can’t setup a wireless connection? Ensure that the SSID and the encryption settings are exactly the same to the Clients.
  • Page 94 5 What to do if I forgot my encryption key? 1. Go back to advanced setting to set up your Encryption key again. 2. Reset the WiFi Combo Router to default setting 6 How to reset to default? 1. Ensure the WiFi Combo Router is powered on 2.

  • Page 95: Appendix A. Spec Summary Table

    ● Management SNMP, UPnP IGD, syslog ● Web-based UI, remote login, Administration ● backup/restore setting Environment & Certification CDW68AAM-U01 , DC 12V/1.5A power Package Content ● adapter, CD (Manual, Utility) Temp.: 0~40 C, Humidity 10%~90% Operation Temp. ● non-condensing Temp.: -10~70 C, Humidity: 0~95% Storage Temp.

  • Page 96: Appendix B. Licensing Information

    Appendix B. Licensing information This product includes copyrighted third-party software licensed under the terms of the GNU General Public License. Please refer to the GNU General Public License below to check the detailed terms of this license. The following parts of this product are subject to the GNU GPL, and those software packages are copyright by their respective authors.
  • Page 97 GNU GENERAL PUBLIC LICENSE Version 2, June 1991 Copyright (C) 1989, 1991 Free Software Foundation, Inc. 59 Temple Place, Suite 330, Boston, MA 02111-1307 USA Everyone is permitted to copy and distribute verbatim copies of this license document, but changing it is not allowed. Preamble The licenses for most software are designed to take away your freedom to share and change it.
  • Page 98 GNU GENERAL PUBLIC LICENSE TERMS AND CONDITIONS FOR COPYING, DISTRIBUTION AND MODIFICATION 0. This License applies to any program or other work which contains a notice placed by the copyright holder saying it may be distributed under the terms of this General Public License. The "Program", below, refers to any such program or work, and a "work based on the Program"...
  • Page 99 a) Accompany it with the complete corresponding machine-readable source code, which must be distributed under the terms of Sections 1 and 2 above on a medium customarily used for software interchange; or, b) Accompany it with a written offer, valid for at least three years, to give any third party, for a charge no more than your cost of physically performing source distribution, a complete machine-readable copy of the corresponding source code, to be distributed under the terms of Sections 1 and 2 above on a medium customarily used for software interchange;...
  • Page 100 integrity of the free software distribution system, which is implemented by public license practices. Many people have made generous contributions to the wide range of software distributed through that system in reliance on consistent application of that system; it is up to the author/donor to decide if he or she is willing to distribute software through any other system and a licensee cannot impose that choice.
