Summary of Contents for Power Science CF-3K-12 Series

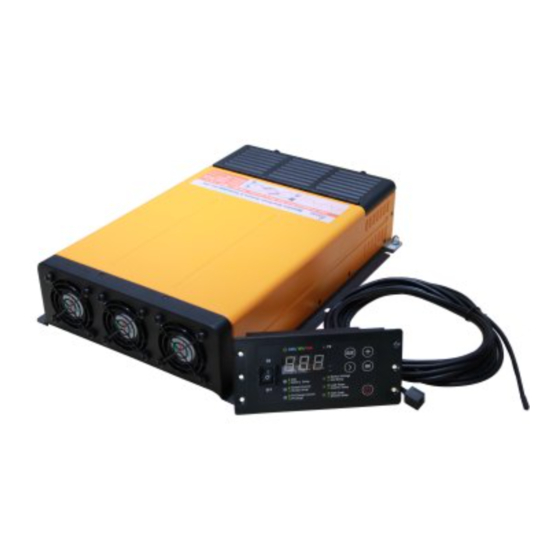

- Page 1 Series CF(M)-3K-12 Inverter+Charger SuperCombi Australian Version Users’ GUIDE (Ver. 4.2.1) Power Science Australia Group Pty Ltd Jan. 2020...
-
Page 2: Table Of Contents
CF-3K-12 SUPERCOMBI USER’S GUIDE Table of Content 1. Safety Instructions ............3 1.1 General Safety Warnings ..................... 3 1.2 Attentions to the Batteries ....................3 2. Product Introduction ............3 2.1 Basic Introduction ....................... 3 2.2 Model Definition ......................... 4 2.3 Application Areas ........................ - Page 3 CF-3K-12 SUPERCOMBI USER’S GUIDE 6.7 Charge the Start Battery (Optional) .................. 19 7. Special Functions ............20 7.1 Battery Type Customization ....................20 7.2 Temperature Compensation to the Battery Voltage ............20 7.3 Dead Battery Charging ...................... 20 8 Electrical Parameters ............20 9.
-
Page 4: Safety Instructions
2. Product Introduction 2.1 Basic Introduction “The series CF(M)-3K-12 Charging-Inverter-MPPT SuperCombi” (hereinafter referred to as “SuperCombi”) is independently developed by Power Science Technology Co., LTD.. The power... -
Page 5: Model Definition
CF-3K-12 SUPERCOMBI USER’S GUIDE electronic transformation device with high power density, super large charging current is integrated with charging, inverted and photovoltaic MPPT controller, and is achieved by the patented bidirectional convert technology: As a charger, the machine can output an up to 200Ampere charging current; ... -
Page 6: Application Areas
CF-3K-12 SUPERCOMBI USER’S GUIDE Empty: Without ChargePro Function G: With On-Grid Supply Function. Find more in 6.4 On-Grid Supply. ⑦ Invert Enhanced Function S: With Power Support Function. Find more in 6.5 Power Support. Empty: Without any Invert Enhanced Function P: The SuperCombis can work in Parallel ⑧... -
Page 7: Dimension And Mounting Holes Chart
CF-3K-12 SUPERCOMBI USER’S GUIDE 2.4 Dimension and Mounting Holes Chart The maximum size of the SuperCombi is 386*262*83.1, and there are six symmetrical mounting holes on both sides with a diameter of 5.5mm. The specific dimensions charts are shown as in Figure 1. -
Page 8: Introduction Of The Installation Cabin And The Interface Definition
CF-3K-12 SUPERCOMBI USER’S GUIDE Figure 2 SuperCombi installation surface Chart Each part is defined as shown in table 2: Function definition ① PV Input ② AC IN/OUT ③ Indicator ④ Black, Sampling of Battery (Optional) ⑤ White, Remote Control ⑥ Charge Port (2A) for Start Battery (Optional) ⑦... -
Page 9: Display/Settings Panel Introduction
CF-3K-12 SUPERCOMBI USER’S GUIDE 2.7 Display/Settings Panel Introduction Display / settings panel are shown in Figure 4 and 5: Figure 4: Panel Diagram (Front) Figure 4: Panel Diagram (Back) In which: (1) Menu (10) Dial Switch for Auto Invert/Floating Charge... -
Page 10: Basic Features
CF-3K-12 SUPERCOMBI USER’S GUIDE (2) Parameter Unit (11) PageDown/ Buzzer sound off (3) PV Indicator (12) Power On/Off (4) Working Indicator (13) Buzzer (5) Parameter Value (14) Remote (6) Rocker Switch (On/Off/Energy Save) (15) Reserved (7) Battery Type Selector (16) Reserved (8) AC (Grid) Current Selector (17) QR Code (For Help) (9) Charge Current Selector... -
Page 11: Installation Instructions
CF-3K-12 SUPERCOMBI USER’S GUIDE 3. Installation instructions Note: Before installing, make sure that the Emergency Manual Switch (Figure 8) of the SuperCombi is OFF. Otherwise, you will face the risk of battery damage! Excpet the "emergency mode", this switch must be kept OFF at other times. Figure 5: Emergency Manual Switch Fig. -
Page 12: System Connection Diagram
CF-3K-12 SUPERCOMBI USER’S GUIDE 3.2 System connection diagram Fig. 7 System Connection Diagram Note: Find more details about the Dual AC Outputs.in 6.1... -
Page 13: Cabling
CF-3K-12 SUPERCOMBI USER’S GUIDE 3.3 Cabling Cabling Position Recommend Cable Specification Copper Cable with the cross sectional area AC IN larger than 6mm Copper Cable with the cross sectional area AC OUT1: Power larger than 6mm Copper Cable with the cross sectional area AC OUT2: Short Break larger than 6mm Copper Cable with the cross sectional area... -
Page 14: Basic Settings
CF-3K-12 SUPERCOMBI USER’S GUIDE Note that if any accidental loss caused by the mismatch of charging current, battery damage or various losses caused by fire and explosion, is not within our responsibility! 4. Basic Settings Note: Before setting, make sure that the Rocker Switch should be in the middle gear as shown in the following figure. -
Page 15: Charge Current
CF-3K-12 SUPERCOMBI USER’S GUIDE 4.2 Charge Current In order to meet the needs of customers in different application scenarios, the all-in-one can adjust the battery charging current through the "charging current" selector (Figure 10). The larger the charging current, the faster the charging speed is, and the smaller the charging current, the slower the charging speed is. -
Page 16: Auto Invert
CF-3K-12 SUPERCOMBI USER’S GUIDE Figure 11: Grid Limit Figure 12: Auto Invert/Floating Charge 4.4 Auto Invert The user can enable or disable Auto Invert function by different setting of the dial switch (See Figure 12). 1. When enable the Auto Invert function, the SuperCombi will output AC power automatically when the SuperCombi disconnect with the Grid;... -
Page 17: Energy Save Mode
CF-3K-12 SUPERCOMBI USER’S GUIDE 5.2 Energy Save Mode To reduce the loss when the SuperCombi work without load, the user can choose Energy Save Mode by putting the Rocker Switch to the second gear. Under the Energy Save Mode, if the AC load of the system is less than 30W in 10 minutes, the SuperCombi will enter into Standby status to reduce the loss. -
Page 18: Auto Sleep
CF-3K-12 SUPERCOMBI USER’S GUIDE PV charging mode, the PV indicator will turn flashing green. There are 3 working statuses as follow: (1) Under inverting condition: The solar and the battery will provide DC power together for inverting, but the solar power will have the priority to provide up to 500W energy for inverting. -
Page 19: Functions
CF-3K-12 SUPERCOMBI USER’S GUIDE suddenly encounters the control panel during normal operation When the all-in-one cannot be operated normally due to damage or loss of connection, at this time, you can unplug the control panel cable at the end of the all-in-one and turn on the emergency manual switch. The all-in-one will restart operation and its original 6 parameter status will remain unchanged ( Energy saving mode, charging current, mains maximum current, battery type, floating charge, automatic inverter). -
Page 20: Load Priority
CF-3K-12 SUPERCOMBI USER’S GUIDE current. Under this function, the 200Amperes of the SuperCombi is very useful. 6.3 Load Priority When the utility is limited, the AC loads have the priority to get the power and then the rest of power will be converted to DC to the battery or the DC load. 6.4 On-Grid Supply When connected with the utility, the SuperCombi can work together with the utility to provide another 3kW power to the AC load. -
Page 21: Special Functions
CF-3K-12 SUPERCOMBI USER’S GUIDE 7. Special Functions All the functions described here should be activated by the LCD panels or touch panels. 7.1 Battery Type Customization Other than the 6 types of the batteries, the users can also customize the battery type by setting the LBCO, HBCO, Floating Voltage etc. - Page 22 CF-3K-12 SUPERCOMBI USER’S GUIDE Frequency 50/60 Hz± 0.3%（可设置） ≥91% Efficiency (Peak) Short-Circuit Protection INV. AC Output 14A Max Charger Mode Nominal Voltage & Range 176-264VAC Frequency & Range 50/60Hz ± 3Hz AC Nominal Current AC Input ≥91% Efficiency (Full Load) ≤30A Max AC Input Current (Max.) ≥0.99 (Full Load)
-
Page 23: Trouble Shooting
CF-3K-12 SUPERCOMBI USER’S GUIDE AC Terminal 1.2 N.m Torque DC Terminal 26 N.m PV Terminal 1.2 N.m Table 6: Parameters of the SuperCombi 9. Trouble Shooting Code Warning/Fault Beep Reason Solution Start the Charge mode To check whether the cable The battery is over of battery side is Battery Low SOC... -
Page 24: Warranty
Sino-Power Science Technology Co., LTD. will take full responsibility to the product. Please be care that if the product is damaged because of improper installation, immersion, foreign matter invasion or any malfunction caused by users, Power Science Technology Co., LTD. will not take the responsibility for it. - Page 25 CF-3K-12 SUPERCOMBI USER’S GUIDE Power Science Technology Co., Ltd. Headquarter Australia Branch Add: The 2nd Floor, Building 1, Add: 23/137-145 Rooks Road, Hengchangrong Baoan, Nunawading VIC 3131 Shenzhen P.R. China 518108 Tel: +61 416 766 688 Tel: +86 755 8652 9986 Email: au@powerscience.net...
