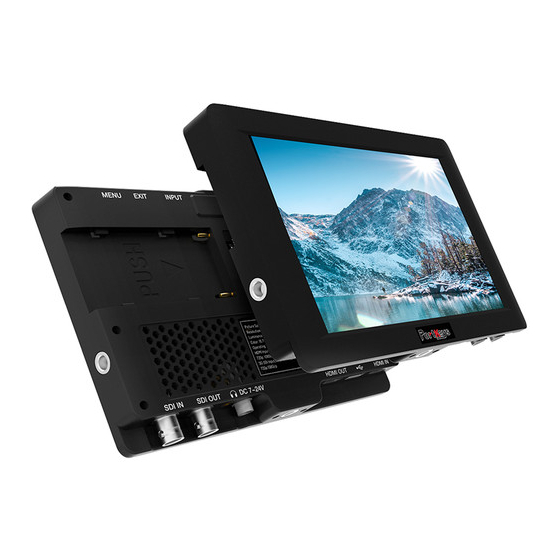

HS7T
User Manual
Company Address : 1406 14th Floor Block D Building 3
Phase I Tianan yungu Longgang district Shenzhen
Guangdong China
Factory Address : No.2nd Floor Building A Jingjiang Industrial
Park NO.101 Shangwei Road Longhua District Shenzhen
Guangdong China
Service Hotline : 18820958861
Email : sales@pkscorp.com
Website : www.portkeys.com
SHENZHEN PORTKEYS ELECTRONIC TECHNOLOGY CO.,LTD
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for PortKeys HS7T
Summary of Contents for PortKeys HS7T
- Page 1 Phase I Tianan yungu Longgang district Shenzhen Guangdong China Factory Address : No.2nd Floor Building A Jingjiang Industrial Park NO.101 Shangwei Road Longhua District Shenzhen Guangdong China Service Hotline : 18820958861 Email : sales@pkscorp.com Website : www.portkeys.com SHENZHEN PORTKEYS ELECTRONIC TECHNOLOGY CO.,LTD...
-
Page 2: Standard Accessories
HS7T HS7T Product Appearance size Standard Accessories HS7T Monitor X1 Shoulder strap X1 190mm Screen cleaning wipe X1 Silicone pad X6 M2 Allen key X1 Warm reminder card X1 7” U Disk(Instructions D-TAP to 4-pin aviation power 122.4mm for use is enclosed) X1... - Page 3 HS7T HS7T Supported input resolution and frame rate 【MAIN】 SDI Signal 1920×1080p@50fps,59.94fps,60fps 1920×1080p@50Hz,59.94Hz,60Hz YUV422 1920×1080p@23.97Hz,24Hz,25Hz,29.94Hz,30Hz YUV444/YUV422/RGB444 MAIN 1920×1080psf@23.97Hz,24Hz,25Hz,29.97Hz,30Hz YUV444/YUV422/RGB444 1920×1080i@50Hz,59.94Hz,60Hz YUV444/YUV422/RGB444 > Guides 1280×720p @50Hz,59.94Hz,60Hz YUV444/YUV422/RGB444 > Video Config 720×480i @59.94Hz YUV422 > System Config 720×576i @50Hz YUV422 > LUT Config HDMI Signal >...
-
Page 4: Video Config
HS7T HS7T Video Config System Config Brightness 0～100 OSD-Language 简体中文/English Contrast 0～100 OSD-Duration 5Sec/10Sec/15Sec/20Sec/25Sec/30Sec/Off Chroma 0～100 OSD-Transparancy Low/Middle/High/Off Sharpness 0/10/20/30/40/50/60/70/80/90/100 Menu Setup User1/User2/User3/User4/User5 Tint 0～100 System Reset Are you sure？ Yes/No Press MENU, Then > Color Temperature 5600K/6500K/7500K/9300K/Manual Flip Control... -
Page 5: Function Setup
HS7T HS7T LUT File Deletion (Needs to be performed in the state of access signal) Function 1, Function 2, Function 3, Function 4. Storedfrom USB (The function setting is same with function 1) *Attention: Please set the functions XXXXXXXX（Stored LUT Configuration）... - Page 6 HS7T HS7T Cross Hair Setting False Color Setting On/Off Crosshair Under Warn. -10～15 Color White/Red/Green/Blue/Black Over Warn. 85～110 X Offset 0%～100% Tooltip On/Off Y Offset 0%～100% Exit Exit Grids Setting Zebra Setting Off/1/2/3/4/5/6/7/8/9/10 Grids Under Warn. -10～15 Color White/Red/Green/Blue/Black Over Warn.
-
Page 7: Main Firmware Upgrade
4. If the firmware was failed to upgrade, please try again as Step 3rd. The resolution of the input signal is different and the offset value changes. Update method takes HS7T as an example,for other models,please download the corresponding model upgrade package in our official website and follow the steps below. - Page 8 HS7T HS7T Supply power to the Click and upgrade. monitor,insert the U disk with upgrade file into the USB Upgrade Port Are You Sure？ USB interface of the body. Disk Upgrading is in progress. Boot up the monitor,click MAIN After that,the monitor will MENU to open main >...
