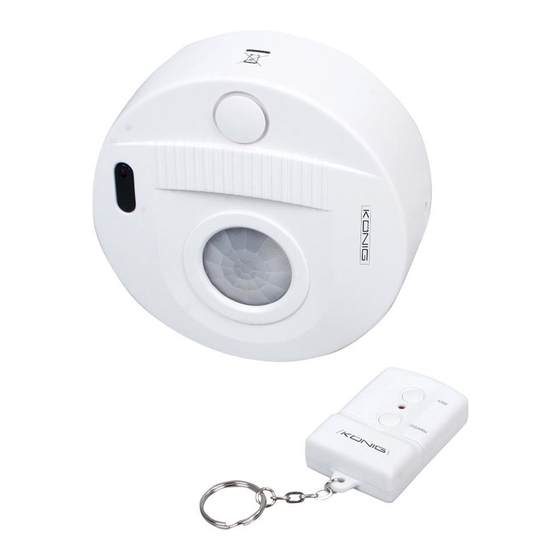

SEC-APC10
CEILING ALARM
With Remote Control
Description:
Figure A
Alarm
1. PIR sensor
2. Siren
3. Infrared sensor
4. Battery LED indicator
5. External power connection
6. Mounting bracket
7. Battery compartment
ENGLISH
INSTRUCTIONS
Figure B
Remote control
8. Arm button
9. LED indicator
10. Disarm button
11. Battery compartment
12. Program switches
13. Battery cover
Advertisement
Related Manuals for Konig Security SEC-APC10
Summary of Contents for Konig Security SEC-APC10
- Page 1 ENGLISH INSTRUCTIONS SEC-APC10 CEILING ALARM With Remote Control Description: Figure A Figure B Alarm Remote control 1. PIR sensor 8. Arm button 2. Siren 9. LED indicator 3. Infrared sensor 10. Disarm button 4. Battery LED indicator 11. Battery compartment 5.
- Page 2 Battery installation: Alarm: 1. The battery compartment is accessed from the rear of the alarm by removing the screws of the mounting bracket. 2. Insert 4x C size batteries (not included) according the correct polarity (see figure C) 3. When the batteries are inserted the alarm will beep very loud to indicate that the batteries are properly installed.
- Page 3 Installation: 1. Locate the desired location for the alarm on the ceiling in the center of the area that needs to be secured. 2. Remove the mounting bracket and fix this to the ceiling with screws. Then fix the alarm to the mounting bracket and secure this with the screws at the sides.
