Enjoy Life Enjoy AINOL

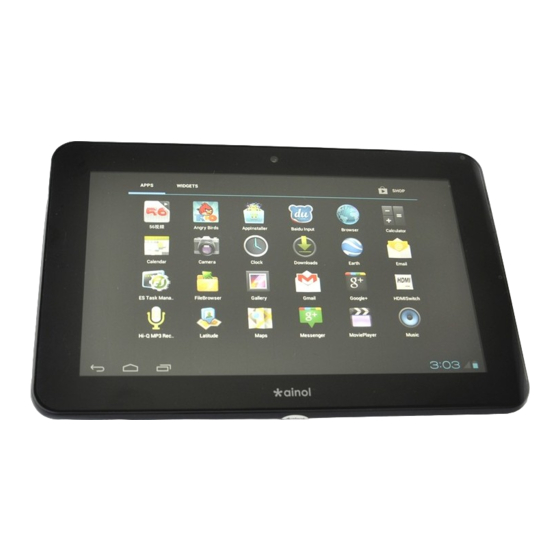

Firstly thanks a lot for using Ainol digital products--NOVO 7 Crystal Tablet PC, sincerely hope you can enjoy it. This manual
will introduce the feature of this product that allows you to fully understand how to use it. For your ease to operate the device as
soon as possible, please read the instructions before using the machine so that you can properly use it!
1、It is based on Android 4.1 operating system that supports wireless Internet
2、It use 7.0-inch HD IPS screen with full viewing angle, 1024*600 resolution
3、Camera: Front 2.0 Mega Pixel
4、It supports five points capacitive touch screen and button operation.
5、The CPU is Amlogic 8726-M6; Dual core 1.5Ghz GPU is Mali-400*2.
6、The picture used in the manual may be different from UI in the device, please subject to the device!

Preface

Preface
Preface
Preface
-1- www.achieveses.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NOVO 7 and is the answer not in the manual?

Questions and answers

Related Manuals for Ainol NOVO 7

Summary of Contents for Ainol NOVO 7

  • Page 1: Preface

    Preface Firstly thanks a lot for using Ainol digital products--NOVO 7 Crystal Tablet PC, sincerely hope you can enjoy it. This manual will introduce the feature of this product that allows you to fully understand how to use it. For your ease to operate the device as soon as possible, please read the instructions before using the machine so that you can properly use it! 1、It is based on Android 4.1 operating system that supports wireless Internet...

  • Page 2: Table Of Contents

    Enjoy Life Enjoy AINOL Content Content Content Content Preface..................01 Setting................14 Keystroke Operation..............04 Clock ................17 Note................06 Camera................20 Basic Operation................08 TF card ................24 Emails................11 Mobile storage function............25 HD Med ia Pl ayer...........1 2 USB Recharging..............26 FAQ................27 Calculator................12 Product specification..............29...
  • Page 3 Enjoy Life Enjoy AINOL Accessories: If there is any change, we will advise -3- www.ainol.com...

  • Page 4: Keystroke Operation

    Enjoy Life Enjoy AINOL -4- www.ainol.com...
  • Page 5 Enjoy Life Enjoy AINOL I I I I ..Main Main function Main Main function function function ● 7.0 inch IPS screen with full viewing angle, 1024*600 resolution； ● Support Android 4.1 operating system; ● Support APK application and installation ●...

  • Page 6: Note

    Enjoy Life Enjoy AINOL Ⅱ、 、 、 、 Note Note Note Note This manual contains important safety measures and information to use the product correctly. In order to avoid using improperly, please read the manual carefully before using it. ●...
  • Page 7 Enjoy Life Enjoy AINOL machine or other reasons. Please use it as the manual and copy the important data in time. If you have any questions, please connect to the dealer. Do not disassemble the machine independently. Otherwise, you will lose the warranty that our company is committed to.

  • Page 8: Basic Operation

    Enjoy Life Enjoy AINOL Ⅲ、 、 、 、 Basic Basic Basic Basic Operation Operation Operation Operation ● ● ● ● Power Power Power Power On/ On/ OFF Power On: In the turn-off status, press the power button for 3 seconds, the unit will enter the main interface after the boot.
  • Page 9 Enjoy Life Enjoy AINOL Main Main Main Main Screen Screen Screen Screen Button Button Button Button operation: operation: operation: operation: : enter the main screen : check the check the history record : Return to main Interface from any Interface...
  • Page 10 Enjoy Life Enjoy AINOL Main Function menu operation: Main Main Main Function Function Function menu menu menu operation: operation: operation: Click this function button, full-featured pop-up menu, such as below: -10- www.ainol.com...

  • Page 11: Emails

    Enjoy Life Enjoy AINOL This window shows all the features of the machine icon, click on any icon to access the relevant function interface, click on the main interface key to return to the main interface. Click “windows widget” to add widget of all functions in any window Ⅳ...

  • Page 12: Calculator

    Enjoy Life Enjoy AINOL V V V V 、 、 、 、 HD HD Media Media Media Media Play Play Play Player er er er On the main screen click on "HD media player" option, you can access the video files list interface, the point of a video can be selected into the video player interface.
  • Page 13 Enjoy Life Enjoy AINOL Browser Browser Browser Browser Under the main menu, click “ Browser" to enter into the internet interface. The default home page of this device is “Google”. Click “website column” to pop up the keyboard for new website address; Click “content column "...

  • Page 14: Calendar

    Enjoy Life Enjoy AINOL below: Click” refresh” to refresh the current webpage Ⅶ Ⅶ Ⅶ Ⅶ 、 、 、 、 Calendar Calendar Calendar Calendar In the main menu screen click "calendar" option, you can have access to the calendar display, then view or set it VIII、...
  • Page 15 Enjoy Life Enjoy AINOL 1. 1. 1. 1. Wireless Wireless Wireless network network Wireless and and network network Wi-Fi: turn on/off WI-FI Click “scan” to scan all the WIFI networks available within the range Click” add network” to pop up Diaglog box. User can add the aimed network to the WIFI network list after setting the network SSID and the security.
  • Page 16 Enjoy Life Enjoy AINOL Battery: Click to check the batery status Application: check all the apps in the unit which is download or in operation. 3 3 3 3 、 、 、 、 Personal Personal Personal Personal Setting Setting Setting...

  • Page 17: Clock

    Enjoy Life Enjoy AINOL IX IX IX IX、 、 、 、 Colck Colck Colck Colck In the main menu interface, click the "clock" option, enter the clock Interface. Click any point on the screen to adjust the brightness of the screen Click “alarm setting”...
  • Page 18 Enjoy Life Enjoy AINOL XI XI XI XI、 、 、 、 Audio Audio Record Audio Audio Record Record Record Under the state of main menu, select “Record” option, enter into the Record interface . Click button to start record; Click button to stop record and save it;...
  • Page 19 Enjoy Life Enjoy AINOL XII、 、 、 、 File File File Management Management File Management Management In the "File Manager", it list show all the files in the internal memory and SD Card. Click to enter one layer by one layer, which list the files under the current folder.

  • Page 20: Camera

    Enjoy Life Enjoy AINOL XIV、 、 、 、 Camera Camera Camera Camera In the main menu interface, click the "camera" option, you can enter the camera interface Click it to change to video Click it to change to photo-taking Enter to the camera interface, click the icon , can be photographed and saved automatically.
  • Page 21 Enjoy Life Enjoy AINOL Switch the front and back camera Enter into the video screen, click the icon , can be video, click again to pause and automatically saved. Click the small icon in the upper right corner, the recorded video can be played; in the video shown on the right corner of the interface click to show or hide the video settings menu.
  • Page 22 Enjoy Life Enjoy AINOL switch the front and back camera XV、 、 、 、 Music Music Music Player Player Music Player Player In the main menu interface, click the "Music Player" into the file list interface, select any music to play.
  • Page 23 Enjoy Life Enjoy AINOL XVI、 、 、 、 OTG Cable: Cable: User User methods methods notice notice OTG Cable: Cable: User User methods methods and and notice notice OTG Cable can transmit the data between devices without the HOST. The unit offer very easy-to-use OTG Function. User can copy the data in U Disk to this unit and can also copy the data to U Disk.

  • Page 24: Tf Card

    Enjoy Life Enjoy AINOL Power on the unit with the external device, choose “USB External device” to enter the interface of the U Disk files list after identifying the U Disk successfully. To disconnect the OTG external device, first disconnect the power supply on the external device, and then disconnect the OTG external device.

  • Page 25: Mobile Storage Function

    The device for high-speed USB2.0 interface, the standard removable disk function, support for Windows98 (need to install the driver), Windows2000/XP/Vista (do not need to install the driver) system, use the USB cable (please try to use the first wife Ainol data line) connected with the PC after (wait a few minutes), the player is displayed as on-line mode;...

  • Page 26: Usb Recharging

    Enjoy Life Enjoy AINOL Download files from your computer to the player, just simply want to download the file / folder onto your player can move the disk can be the same; you can put players inside the file transfer to your computer...

  • Page 27: Faq

    Enjoy Life Enjoy AINOL When using power adapter to charge the unit, the screen will display charging status. After the charge is finished, the screen will show battery is full. It takes 5 hours to fully charge this unit. (For the first two times, it takes 8 hours to fully activate the battery) XXI、...
  • Page 28 Enjoy Life Enjoy AINOL Garbled Garbled Garbled Garbled screen screen screen screen Please check whether it has set the correct language option, the language chosen can set in the (set) =＞(language selection) The files files files files can can not...

  • Page 29: Product Specification

    Enjoy Life Enjoy AINOL XXIII、 、 、 、 Product XXIII XXIII XXIII Product Product Product Specification Specification Specification Specification Model Number NOVO 7Crystal DDR3 1G Power Input DC 5V 2A Screen Size 7.0 inch HD LCD IPS colors 16millions Operation 5 points capacitive touch screen with button Screen res.
  • Page 30 Enjoy Life Enjoy AINOL Audio format Support MP3,WAV,(APE,FLAC,AAC,OGG need install the third software) Video format Support MOV,MKV,AVI,TS,TP,M2TS,VOB,DAT,MPEG,MP4,PMP,3GP,FLV,WMV,ASF etc. Photo format JPG、BMP、PNG、GIF Ebook format TXT、LRC、(PDF,EPUB,FB2 need install the third software) Record Temperature Working temperature: -10~45 degree Battery 14wh Languages Support Chinese,English and multi languages...
  • Page 31 Enjoy Life Enjoy AINOL -31- www.ainol.com...
  • Page 32 Enjoy Life Enjoy AINOL -32- www.ainol.com...
