Summary of Contents for AccuBANKER AB610

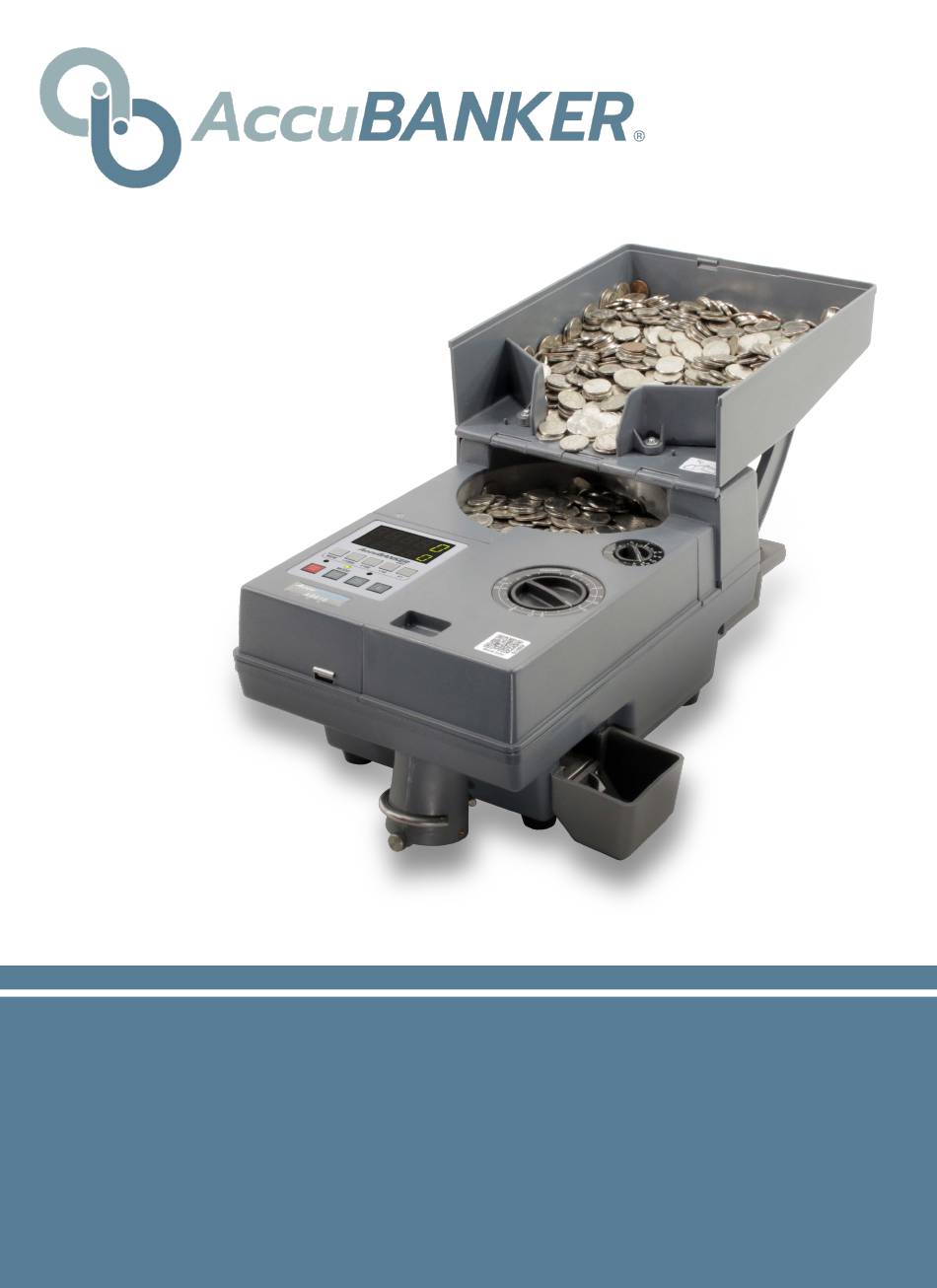

- Page 1 AB610 Medium Duty Coin & Token Counter / Packager USER GUIDE USER GUIDE wwwAccuBANKER.co www.AccuBANKER.com www.AccuBANKER.com...
- Page 2 Thank you for trusting AccuBANKER with your cash handling needs. In order to optimize the performance of your equipment, we encourage you to thoroughly read this user guide prior to use. ®...
-
Page 3: Table Of Contents
Table of Contents Table of Contents ..................... 3 Important Safety Instructions ................4 1. Introduction ....................6 2. Box Contents ....................7 3. Part Description .................... 8 4. Control Panel Description ................9 5. Setting Up Your Equipment ............... 12 6. -
Page 4: Important Safety Instructions
Important Safety Instructions Warning Do not use this product in areas where it may be exposed to water or other liquids. Unplug this product from the electric outlet before cleaning. Do not use liquid or aerosol cleaners. To clean, use a damp cloth. To reduce the risk of electric shock, do not disassemble this product. - Page 5 Important Safety Instructions (continued) • Read and follow all warnings and instructions marked on the unit. • This equipment is meant to be operated in an indoor environment with proper ventilation. • Do not place near direct sunlight, heat sources, or air conditioners. •...
-
Page 6: Introduction

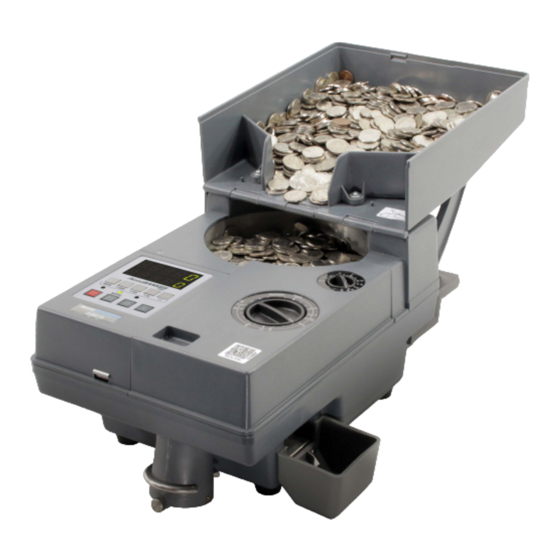

1. Introduction The AB610 is a Universal Coin Counter that allows the user to count, manually sort, bag, and package most international coins. The coin sorting mechanism is completely adjustable by the user to suit their daily needs. This equipment was designed with a heavy-duty mechanical component; to meet the requirements demanded by users that count high volumes of coins such as banks, cash collection centers, vending machine owners, etc. -
Page 7: Box Contents
2. Box Contents When opening the box, verify that all the items described below are included. 1. AB610 coin counter 2. Lateral rejecting tray 3. Lateral rejecting tube (bag holder) 4. Hopper holders (2 pcs) 5. Power cord and Printing Materials... -
Page 8: Part Description
3. Part Description Main Parts and Components 1. Cover / External Hopper Tray 6. Coin Exit tube 2. Internal Hopper 7. Lateral Rejecting Tray / Tube 3. Thickness Adjustment Knob holder 4. Diameter Adjustment Knob 5. Control Panel / Display... -
Page 9: Control Panel Description
4. Control Panel Description START / STOP Used to resume or stop the counting operation. COUNT / BATCH Used to select the specific operating mode, either 1. COUNT or 2. BATCH. 1. COUNT mode (green LED on) The equipment counts all the coins deposited into the hopper continuously until the hopper is empty. - Page 10 4. Control Panel Description (continued) Batch Keys +1000 / +100 / +10 / +1 These keys are used to set up the desired Batch quantity. Tapping the specific key will add up that specific quantity to the Batch. For example, if the operator needs to set up a batch of 2,525 coins, he/she must proceed as follows: Tap the key “+1000”...
- Page 11 4. Control Panel Description (continued) MEM: Used to retrieve two types of data from the unit’s memory: LAST count during the ADD operation (tapping MEM with the ADD active). Total coins counted since the last time the unit was powered on. The "ADD/LAST"...
-
Page 12: Setting Up Your Equipment
5. Setting Up Your Equipment 1. Place the hopper tray holders. 2. Place the Lateral Rejecting Tray or tube. 3. Open the upper cover and coin 4. Adjust the guiders and turn the unit ON. Thickness and Diameter knobs for the specific coin denomination to be counted. - Page 13 5. Setting Up Your Equipment (continued) Thickness and Diameter coin selectors Before beginning with the counting operation, the user must set up the specific thickness and diameter for the coin denomination to be counted. Adjust the Thickness and the Diameter knobs based on the following information: a.
-
Page 14: Operation
6. Operation 6.1 Basic Counting Operation The coins to be counted must be presorted before depositing them into the hopper. All of them must be the same size and thickness to ensure a hassle- free count. After installing the hopper tray holders (they will prevent damage to the tray due to the weight of the coins), connect the unit to the electric outlet and turn it on using the power switch. -
Page 15: Sorting / Counting
6. Operation (continued) 6.2 Sorting / Counting The AB610 allows you to count mixed coins of different denominations (different sizes). This operating mode must be carried out by sorting the largest diameter coins first and separating the smaller diameter coins into a bag. - Page 16 6. Operation (continued) 6.2 Sorting / Counting (continued) US coins must be sorted in the following order: Half dollar coins One-dollar coins Quarters Nickels Pennies Dimes 6. Repeat the process until reaching the smallest size coin. 7. The equipment will stop either when the preset batch amount is reached or by pressing the START / STOP key again...
-
Page 17: Packaging
6. Operation (continued) 6.3 Packaging (with packaging tubes accessories, NOT INCLUDED) Coins can be packaged directly into coin wrappers following these instructions: 1. Choose the coin wrapper and plastic packaging tube according to the coin denomination to be counted. 2. Insert the coin wrapper into the packaging tube and place both beneath the unit’s coin exit. -
Page 18: Jamming
7. Jamming Facing a jamming event To ensure that the equipment operates with optimal performance as well as to prevent jamming, avoid the following: Counting bent or damaged coins or tokens Counting any type of foreign object like clips, staples, paper, nylon, rubber bands, etc. -
Page 19: Daily Maintenance / Error Code Messages
8. Daily Maintenance / Error Code Messages 1. Turn the power switch OFF when the last count has been completed. 2. Clean the coin track and counting sensor surface. Remove the metallic debris that may be deposited during the counting operation. (Use an air duster). -
Page 20: Specifications
9. Specifications General functions: Counting, manual sorting, bagging, and packaging Counting speed: 2000 coins/min Adjustable diameter range: 14 – 34 mm Adjustable thickness range: 1.0 – 3.4 mm Hopper capacity: 4000 coins (with the external hopper tray full) Maximum counting display: 99999 coins (5 digits screen) Counting modes: Continue Counting / Batches Counting Power consumption: 60W Power supply : 110 V / 60 Hz (0.7 A) - Page 21 ® AccuBANKER USA 7104 NW 50th St Miami, FL 33166 9AM- 5PM ET Monday through Friday www.AccuBANKER.com Please give us a call at 1-888-993-2228...
