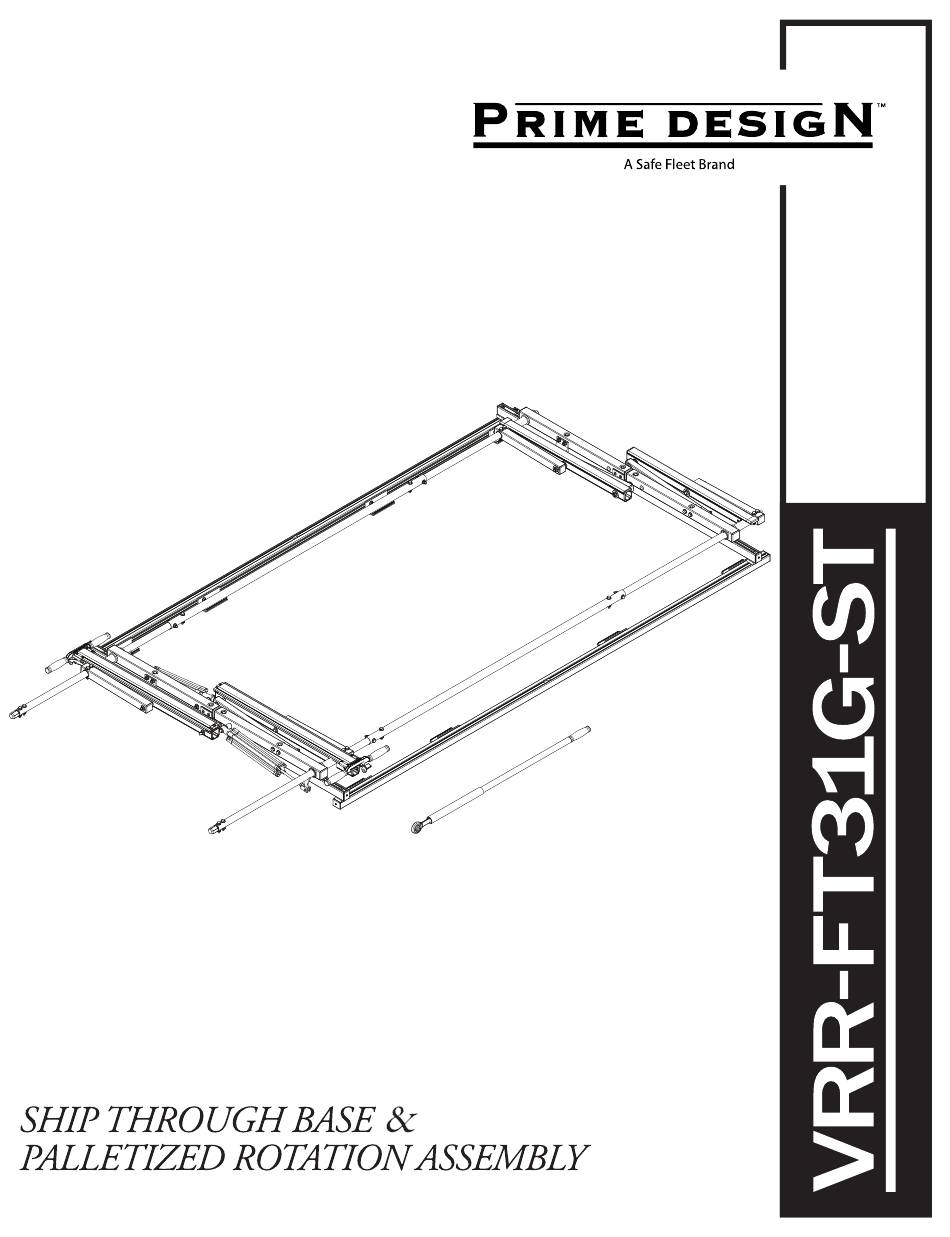

Safe Fleet Prime Design VRR-FT31G-ST Quick Start Manual

Ship through base & palletized rotation assembly

Advertisement

PRIME DESIGN, A SAFE FLEET BRAND ▪ Address: 1689 Oakdale Avenue #102, West St Paul, Minnesota 55118
Toll Free: 1.8.PRIME.RACK ▪ Fax: 651-552-1799 ▪ Email: info@primedesign.net ▪ Website: www.primedesign.net

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Prime Design VRR-FT31G-ST and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Safe Fleet Prime Design VRR-FT31G-ST

  • Page 1 PRIME DESIGN, A SAFE FLEET BRAND ▪ Address: 1689 Oakdale Avenue #102, West St Paul, Minnesota 55118 Toll Free: 1.8.PRIME.RACK ▪ Fax: 651-552-1799 ▪ Email: info@primedesign.net ▪ Website: www.primedesign.net...
  • Page 2 CONTENTS OVERVIEW 1—ELR-8366 ............(Qty 1) 41” Ratcheting Handle (Stow into back of vehicle) 2—FBM-0100 ............(Qty 1) 100”L, Pre-Assembled Channels w/Mounting Brackets and Hardware 100” Channels, Pre-assembled (2X) Foam Pad (8X) Mounting Bracket (8X) M8 X 25MM (8X) M8 X 65MM (4X) M8 Lock Nut (8X) Anti-Seize (1X) "...
  • Page 3 4—VRR-9002 ............(Qty 1) Factory Assembled Rotation Assembly RECOMMENDED ASSEMBLY TOOLS (NOT INCLUDED) Installer’s Note: Do not use power tools to tighten fasteners. Power tools may lead to overtightening and cause damage to the vehicle, or the Ladder Rack hardware. Use only hand tools as shown below. Torque Wrench (inch-pound), 3/8”...
  • Page 4 LOW ROOF LONG WHEEL BASE (148.00”) FBM ASSEMBLY SEQUENCE Prior to assembling the Channels and hardware, the OEM roof holes must be chased using an M8 x 1.25 Chasing or Thread Cleaning tap and fluid. Doing so will ensure accurate torque is achieved. MOUNTING BRACKETS CHANNELS Apply Anti-Seize to all M8 x 25MM Flat Head Screws and...
  • Page 5 The Channels include three aluminum Strip Nuts per Torque all M8 x 25MM Flat Head Screws to Channel for use in a three Crossbar configuration. For 150 in-lbs. Apply Silicone Sealant to screw two Crossbar configurations, disregard the center Strip heads to seal against water intrusion.
  • Page 6 Position one Mounting Spacer on each of the four outer Position and place the rack assembly Strip Nuts, aligning the bolt holes. onto the Mounting Spacers. Mounting Spacer CROSSBAR ADJUSTMENT Insert the 65MM Flat Head Bolts into each Crossbar Strip Nut, then through the Mounting Spacer and into the Channel Strip Nuts.
  • Page 7 DRIVE SHAFT SEALING Apply Silicone Sealant (not included) to the hardware and Connecting Bar ends Apply Silicone Sealant (not included) to the hardware and Connecting Bar ends BOX AND HANDLE This completes the highest level of ladder rack assembly prior to placing the vehicle into box cars. Place the Ratcheting Handle and Ship Through Box into the van’s cargo hold.
  • Page 8 USAM-VRRFT31GST-US01 Rev-A 0618...
