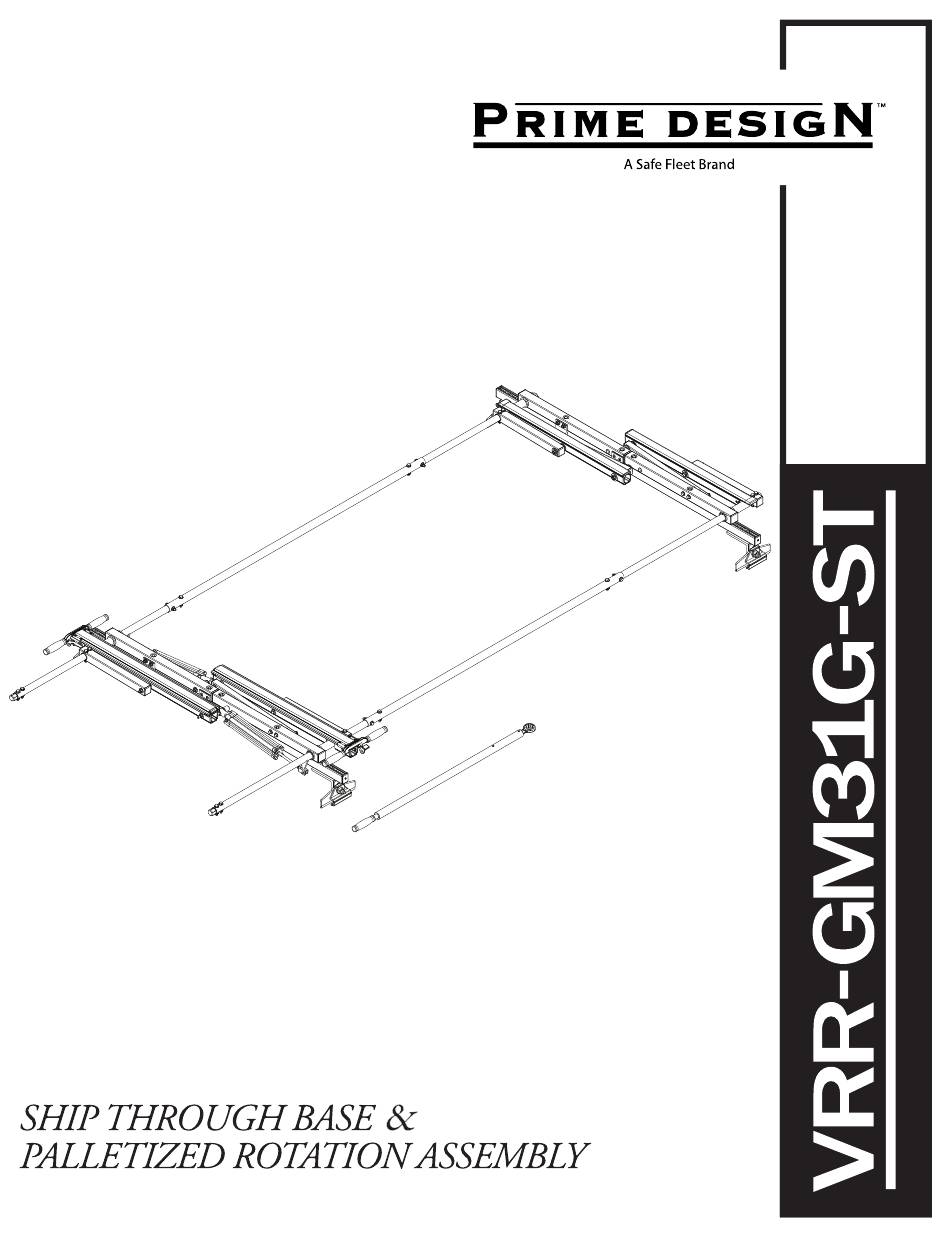

- Page 1 PRIME DESIGN, A SAFE FLEET BRAND ▪ Address: 1689 Oakdale Avenue #102, West St Paul, Minnesota 55118 Toll Free: 1.8.PRIME.RACK ▪ Fax: 651-552-1799 ▪ Email: info@primedesign.net ▪ Website: www.primedesign.net...
-
Page 2: Contents Overview
CONTENTS OVERVIEW 1—VRR-GM31G-ST-BASE Installer’s Note: This illustration cross-references with parts 1.1–1.5 shown on Page 3 of this Manual. Prime Design Limited Warranty. Seller’s sole and exclusive warranty (and Buyer’s sole and exclusive remedy and Seller’s entire liability for any breach thereof) with respect to the Goods is set forth in the Limited Warranty document available at primedesign.net/warranty-liability (the “Prime Design Limited Warranty”). - Page 3 1.1—Ratcheting Handle ........(Qty 1) Stow into vehicle cargo hold. 1.2—Mounting Bracket, Gutterless ...... (Qty 4) 1.3—Z Plate............(Qty 4) 1.4—HKT-0106 ............(Qty 1) Mounting Bracket Hardware Kit M8 X 65MM (8X) M8 Lock Nut (8X) " Flat Washer (8X) Anti-Seize (1X) 1.5—HKT-8417 ............
- Page 4 3—VRR-9003 ............(Qty 1) Factory Assembled Rotation Assembly RECOMMENDED ASSEMBLY TOOLS (NOT INCLUDED) Installer’s Note: Do not use power tools to tighten fasteners. Power tools may lead to overtightening and cause damage to the vehicle, or the Ladder Rack hardware. Use only hand tools as shown below. Torque Wrench (inch-pound), 3/8”...
-
Page 5: Mounting Brackets
FBM ASSEMBLY SEQUENCE Due to the compound curves on the GM van roof, the Mounting Brackets must be assembled in the exact sequence shown. Do not tighten or torque any fasteners until specified. MOUNTING BRACKETS Leave all indicated screws on all the Mounting Brackets loose at this time. - Page 6 Apply Anti-Seize to all M8 x 65MM Carriage bolts, then Using two or more people, lift and position install the Z Plates using the hardware shown. Do not the Ladder Rack onto the vehicle. tighten screws until Step 1.8 M8 x 45MM Z Plate Z Plate Cam Flat Washer...
- Page 7 Z Plate Cam Using the wrench, rotate the Z Plate Cam to raise and engage the Z Plate into the vehicle’s roof gutter. Place a 19mm or 3/4” Keep the Cam Lobe at its open end wrench onto highest vertical position and the Z Plate Cam.
- Page 8 Press a plastic Z Plate Cam Press the remaining plastic Z Plate Cam Nut Caps 1.12 1.13 Nut Cap onto the Cam Nut. onto the remaining exposed Cam Nuts. DRIVE SHAFT SEALING Apply Silicone Sealant (not included) to the hardware and Connecting Bar ends Apply Silicone Sealant (not included) to the hardware...
- Page 9 BOX AND HANDLE This completes the highest level of ladder rack assembly prior to placing the vehicle into box cars. Place the Ratcheting Handle and Ship Through Box into the van’s cargo hold. These parts will be installed and tested by the delivering dealer. Prime Design Limited Warranty.
- Page 10 Page Intentionally Left Blank...
- Page 11 Page Intentionally Left Blank...
- Page 12 USAM-VRRGM31GSTBASE-US01 Rev-A 0518...
