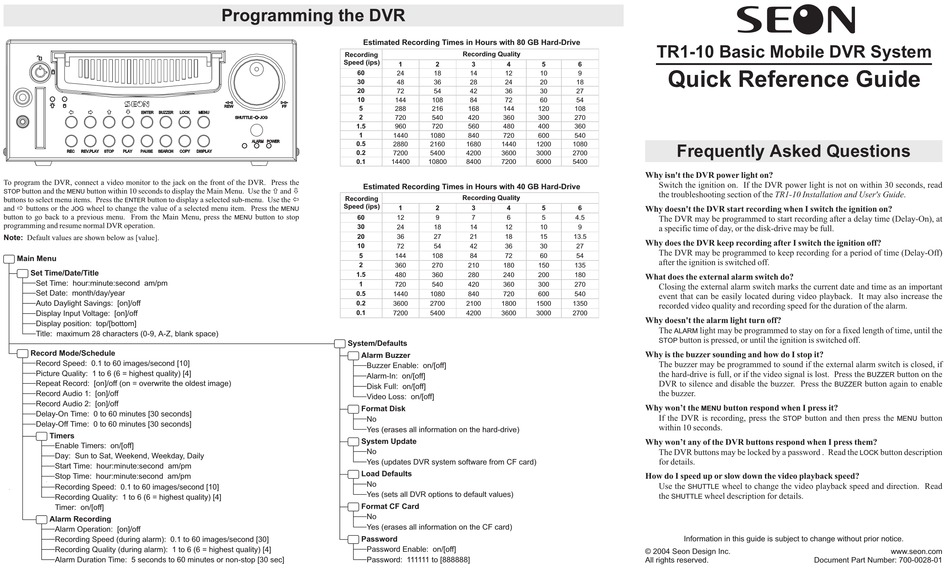

SEON TR1-10 Quick Reference Manual

To program the DVR, connect a video monitor to the jack on the front of the DVR. Press the
button and the button within 10 seconds to display the Main Menu. Use the
STOP MENU
buttons to select menu items. Press the button to display a selected sub-menu. Use the
ENTER
and ð buttons or the wheel to change the value of a selected menu item. Press the
JOG
button to go back to a previous menu. From the Main Menu, press the
programming and resume normal DVR operation.
Note: Default values are shown below as [value].
Main Menu
Set Time/Date/Title
Set Time: hour:minute:second am/pm
Set Date: month/day/year
Auto Daylight Savings: [on]/off
Display Input Voltage: [on]/off
Display position: top/[bottom]
Title: maximum 28 characters (0-9, A-Z, blank space)
Record Mode/Schedule
Record Speed: 0.1 to 60 images/second [10]
Picture Quality: 1 to 6 (6 = highest quality) [4]
Repeat Record: [on]/off (on = overwrite the oldest image)
Record Audio 1: [on]/off
Record Audio 2: [on]/off
Delay-On Time: 0 to 60 minutes [30 seconds]
Delay-Off Time: 0 to 60 minutes [30 seconds]
Timers
Enable Timers: on/[off]
Day: Sun to Sat, Weekend, Weekday, Daily
Start Time: hour:minute:second am/pm
Stop Time: hour:minute:second am/pm
Recording Speed: 0.1 to 60 images/second [10]
Recording Quality: 1 to 6 (6 = highest quality) [4]
Timer: on/[off]
Alarm Recording
Alarm Operation: [on]/off
Recording Speed (during alarm): 0.1 to 60 images/second [30]
Recording Quality (during alarm): 1 to 6 (6 = highest quality) [4]
Alarm Duration Time: 5 seconds to 60 minutes or non-stop [30 sec]
Programming the DVR
Estimated Recording Times in Hours with 80 GB Hard-Drive
Recording
Speed (ips)
1
60 24
30 48
20 72
10 144
5
288
2
720
1.5 960
1 1440
0.5 2880
0.2 7200
0.1 14400
Estimated Recording Times in Hours with 40 GB Hard-Drive
ñ and ò
ï Recording
Speed (ips)
1
MENU
button to stop
MENU 60 12
30 24
20 36
10 72
5 144
2
360
1.5 480
1
720
0.5 1440
0.2 3600
0.1
7200
System/Defaults
Alarm Buzzer
Buzzer Enable: on/[off]
Alarm-In: on/[off]
Disk Full: on/[off]
Video Loss: on/[off]
Format Disk
No
Yes (erases all information on the hard-drive)
System Update
No
Yes (updates DVR system software from CF card)
Load Defaults
No
Yes (sets all DVR options to default values)
Format CF Card
No
Yes (erases all information on the CF card)
Password
Password Enable: on/[off]
Password: 111111 to [888888]
Recording Quality
2 3 4 5 6
18 14 12 10 9
36 28 24 20 18
54 42 36 30 27
108 84 72 60 54
216 168 144 120 108
540 420 360 300 270
720 560 480 400 360
1080 840 720 600 540
2160 1680 1440 1200 1080
5400 4200 3600 3000 2700
10800 8400 7200 6000 5400
Recording Quality
2 3 4 5 6
9 7 6 5 4.5
18 14 12 10 9
27 21 18 15 13.5
54 42 36 30 27
108 84 72 60 54
270 210 180 150 135
360 280 240 200 180
540 420 360 300 270
1080 840 720 600 540
2700 2100 1800 1500 1350
5400 4200 3600 3000 2700

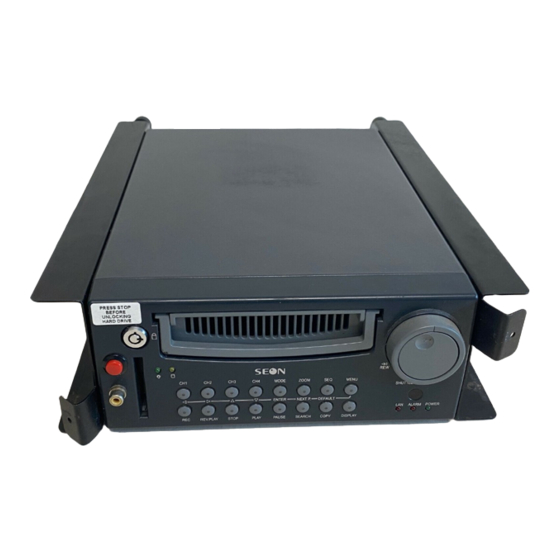

TR1-10 Basic Mobile DVR System
Quick Reference Guide
Frequently Asked Questions
Why isn't the DVR power light on?
Switch the ignition on. If the DVR power light is not on within 30 seconds, read
the troubleshooting section of the TR1-10 Installation and User's Guide
Why doesn't the DVR start recording when I switch the ignition on?
The DVR may be programmed to start recording after a delay time (Delay-On), at
a specific time of day, or the disk-drive may be full.
Why does the DVR keep recording after I switch the ignition off?
The DVR may be programmed to keep recording for a period of time
after the ignition is switched off.
What does the external alarm switch do?
Closing the external alarm switch marks the current date and time as an important
event that can be easily located during video playback. It may also increase the
recorded video quality and recording speed for the duration of the alarm.
Why doesn't the alarm light turn off?
The light may be programmed to stay on for a fixed length of time, until the
ALARM
button is pressed, or until the ignition is switched off.
STOP
Why is the buzzer sounding and how do I stop it?
The buzzer may be programmed to sound if the external alarm switch is closed, if
the hard-drive is full, or if the video signal is lost. Press the
DVR to silence and disable the buzzer. Press the
the buzzer.
Why won't the button respond when I press it?
MENU
If the DVR is recording, press the button and then press the
STOP
within 10 seconds.
Why won't any of the DVR buttons respond when I press them?
The DVR buttons may be locked by a password . Read the
for details.
How do I speed up or slow down the video playback speed?
Use the wheel to change the video playback speed and direction. Read
SHUTTLE
the wheel description for details.
SHUTTLE
Information in this guide is subject to change without prior notice.
© 2004 Seon Design Inc.
All rights reserved. Document Part Number: 700-0028-01
.
(Delay-Off)
button on the
BUZZER
button again to enable
BUZZER
button
MENU
button description
LOCK
www.seon.com
