MM-B80
MINI BIKE
OWNER'S MANUAL
THIS OWNER'S MANUAL CONTAINS IMPORTANT INFORMATION.
READ THOROUGHLY BEFORE RIDING FOR THE FIRST TIME.
MM-B105

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MM-B105 and is the answer not in the manual?

Questions and answers

Related Manuals for Monster Moto MM-B105

Summary of Contents for Monster Moto MM-B105

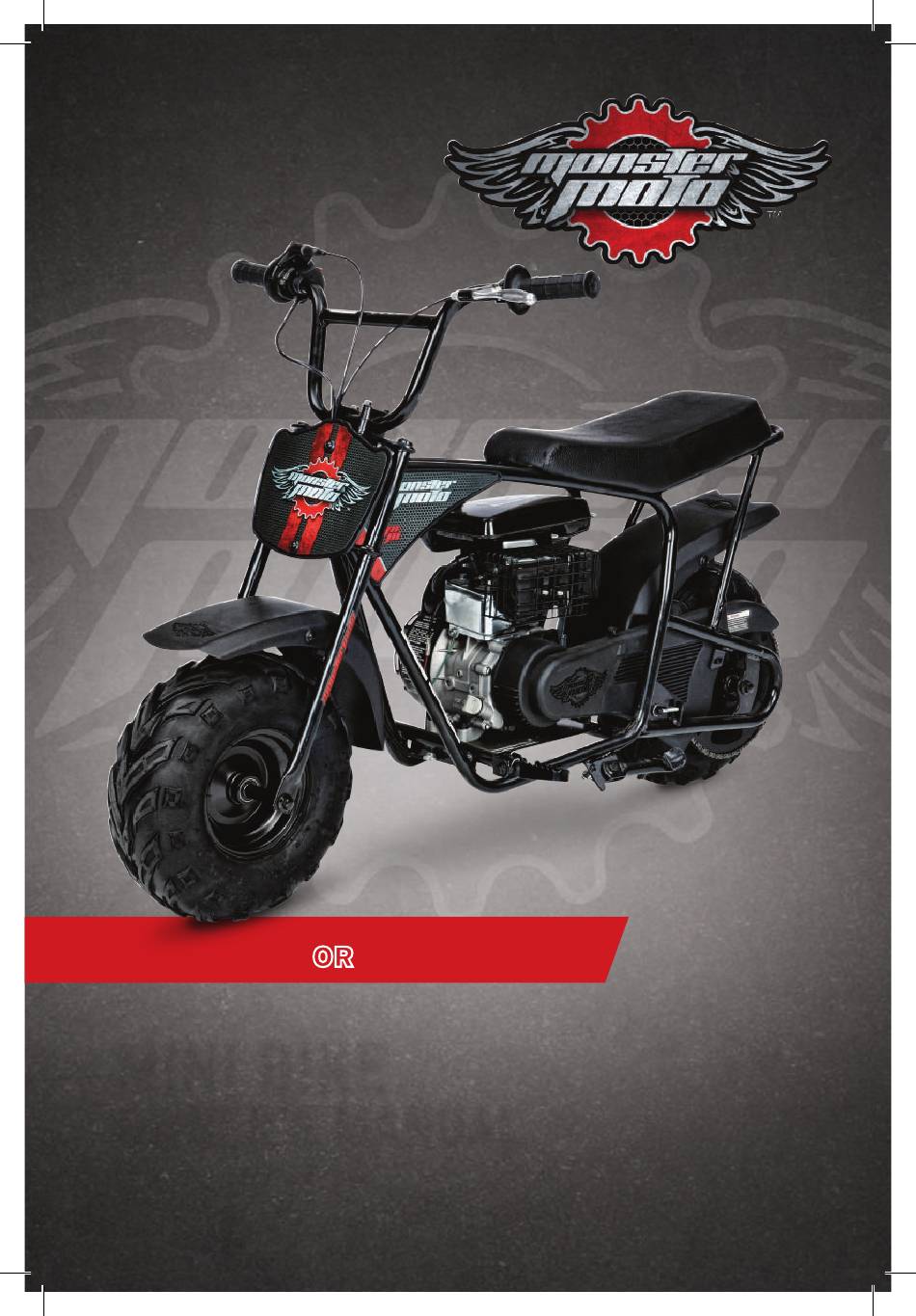

  • Page 1 MM-B80 MM-B105 MINI BIKE OWNER’S MANUAL THIS OWNER’S MANUAL CONTAINS IMPORTANT INFORMATION. READ THOROUGHLY BEFORE RIDING FOR THE FIRST TIME.
  • Page 2 PROBLEMS? DO NOT RETURN TO STORE! CALL US AT...
  • Page 3 © Monster Moto, LLC No part of this publication may be reproduced or copied without written permission from Monster Moto.

  • Page 4: Table Of Contents

    PROBLEMS? DO NOT RETURN TO STORE! CALL US AT TABLE OF CONTENTS Introduction ......................3 Laws & Regulations ....................4 Maintenance Requirements ................4 Safety .......................... 5 Getting Started: Assembling & Breaking In The Mini Bike ...... 7 Basic Operation: Starting, Riding, Stopping & Storing The Mini Bike ..9 Maintenance Procedures ...................

  • Page 5: Introduction

    If you ever have questions about servicing or maintaining your mini bike, do not hesitate to reach out to Monster Moto customer service for help. Our goal is to provide you with a seamless ownership experience! When contacting Monster Moto customer service, please have your vehicle identification number (VIN) and engine number handy to help us best assist you.

  • Page 6: Laws & Regulations

    Laws vary by jurisdiction. Monster Moto has no responsibility or liability for the costs to comply with all applicable laws and regulations or for mini bike damage or human injury resulting from an owner or operator’s failure to follow all relevant...

  • Page 7: Safety

    855-833-6483 OR EMAIL US AT SUPPORT@MONSTERMOTO.COM! SAFETY The MM-B80 or MM-B105 mini bike has the potential to cause serious injury or death. Although the risks associated with riding a mini bike can never be eliminated completely, following all of the instructions contained in this manual will reduce the risk of harm to the operator and others.
  • Page 8 Never modify the mini bike or attach after-market accessories. Modifications and after-market accessories reduce the rider’s ability to control and ride the mini bike safely. Monster Moto is not liable for any damage or injury caused by any after-market accessory.

  • Page 9: Getting Started: Assembling & Breaking In The Mini Bike

    855-833-6483 OR EMAIL US AT SUPPORT@MONSTERMOTO.COM! GETTING STARTED: ASSEMBLING & BREAKING IN THE MINI BIKE ASSEMBLING YOUR MINI BIKE ATTACHING THE FRONT PLATE 1. Park your mini bike on a firm, level surface. 2. Locate the front plate, which was included in the mini bike parts bag. 3.
  • Page 10 PROBLEMS? DO NOT RETURN TO STORE! CALL US AT ATTACHING THE HANDLEBARS 1. Park your mini bike on a firm, level surface. 2. Locate the handlebar assembly hardware, which was included in the mini bike parts bag. TWO TOP RISERS FOUR BOLTS (SLIGHTLY RAISED ON TOP) TWO BOTTOM RISERS...

  • Page 11: Basic Operation: Starting, Riding, Stopping & Storing The Mini Bike

    855-833-6483 OR EMAIL US AT SUPPORT@MONSTERMOTO.COM! BASIC OPERATION: STARTING, RIDING, STOPPING & STORING THE MINI BIKE CHOKE LEVER (LEFT IS RUN/RIGHT IS START) FUEL VALVE LEVER VEHICLE IDENTIFICATION (LEFT IS OFF/RIGHT IS ON) NUMBER (ETCHED INTO METAL PLATE ON BOTTOM OF MINI BIKE) ENGINE NUMBER (ETCHED INTO OIL TANK) PULL STARTER CORD...
  • Page 12 Do not ride your mini bike if it is not in operating condition. Refer to the Troubleshooting section of this manual or call Monster Moto customer service to remedy any problems you find.
  • Page 13 855-833-6483 OR EMAIL US AT SUPPORT@MONSTERMOTO.COM! RIDING YOUR MINI BIKE » To Go: The speed of the mini bike is controlled by the throttle. Twisting the throttle towards the rider increases the speed of the mini bike and releasing pressure from the throttle causes the mini bike to gradually slow down until it comes to a stop.

  • Page 14: Maintenance Procedures

    PROBLEMS? DO NOT RETURN TO STORE! CALL US AT MAINTENANCE PROCEDURES FUEL 1. CARBURETOR SEDIMENT CUP 2. CARBURETOR DRAIN SCREW 1. FUEL FILTER FUEL TANK FUEL CAP (THE SCREW ON THE 2. FUEL FILTER CLAMP FUEL CAP VENT SIDE OF THE CUP, NOT 3.
  • Page 15 855-833-6483 OR EMAIL US AT SUPPORT@MONSTERMOTO.COM! REMOVING SEDIMENT FROM THE FUEL SYSTEM Avoid getting dust, dirt, water, and/or debris in the fuel tank. If the fuel tank has become contaminated, it will need to be drained and new fuel will need to be added.
  • Page 16 PROBLEMS? DO NOT RETURN TO STORE! CALL US AT CLEARING A FLOODED ENGINE If the engine fails to start after repeated attempts, it may be flooded with ex- cess fuel. Follow the steps below to clear a flooded engine: 1. Park the mini bike on a firm, level surface and turn the engine stop switch to the “off”...

  • Page 17: Engine Oil

    855-833-6483 OR EMAIL US AT SUPPORT@MONSTERMOTO.COM! ENGINE OIL Oil Filler Cap Dipstick Upper Mark OIL FILLER CAP & OIL DRAIN BOLT Lower Mark OIL FILLER HOLE & OIL TANK CHECKING & ADDING ENGINE OIL Before each ride, check the mini bike’s engine oil level and add oil if necessary. The Society of Automotive Engineers (SAE) 10W-30 oil is recommended for most climates.
  • Page 18 The frequency in which you will need to change the oil depends on how often you ride and the riding conditions; however, Monster Moto recommends changing the oil at least every six months and potentially more if you ride frequently in dusty environments.

  • Page 19: Air Filter

    855-833-6483 OR EMAIL US AT SUPPORT@MONSTERMOTO.COM! AIR FILTER AIR FILTER AIR FILTER AIR FILTER COVER HOUSING TAB (AIR FILTER COVER HAS BEEN REMOVED) CLEANING THE AIR FILTER The mini bike’s air filter must be clean in order for the mini bike to operate properly. Inspect the air filter in your mini bike as part of your regular maintenance routine and clean it whenever it appears dirty.

  • Page 20: Brakes

    PROBLEMS? DO NOT RETURN TO STORE! CALL US AT BRAKES ADJUSTING NUT BRAKE MECHANISM ADJUSTING THE BRAKES If you cannot stop your mini bike properly, you will most likely need to adjust its rear disc brake. You will also need to adjust the brake as part of your regular maintenance routine, as regular use of the mini bike will cause the brake to loosen over time.

  • Page 21: Tires

    Inspect your rims. If you notice the rims are bent or dented, take your mini bike to the nearest Authorized Monster Moto Service Center. Never ride with a bent or dented rim. ADDING AIR TO YOUR TIRES The mini bike’s tires should be inflated to 15 psi in order for the mini bike to...

  • Page 22: Drive Chain

    6. Tighten the axle nut and the chain tensioner adjustment nut. If the chain tensioner is as tight as possible and slack still remains, the chain is worn beyond its service limit. Contact Monster Moto customer service for assistance or take your mini bike to an Authorized Monster...

  • Page 23: Maintenance Chart

    855-833-6483 OR EMAIL US AT SUPPORT@MONSTERMOTO.COM! LUBRICATING THE DRIVE CHAIN The drive chain needs to be properly lubricated in order for the mini bike to oper- ate properly. Normal use of the mini bike will cause the chain to dry and rust over time, therefore it is necessary to lubricate the chain as part of routine mainte- nance.

  • Page 24: Troubleshooting

    If you are having problems with your mini bike, please reference the troubleshoot- ing steps below. If you have completed all of the troubleshooting steps and your mini bike is still not running properly, contact Monster Moto at 855-833-6483 or support@monstermoto.com or take your mini bike to an Authorized Monster Moto Service Center.
  • Page 25 These problems need to be fixed by an Authorized Monster Moto Service Center. Do not continue to operate the mini bike. Take it to an Authorized Monster Moto Service Center for repair.

  • Page 26: Warranties

    At that time, the returned part(s) or product component(s) become the property of Monster Moto and will not be returned. This product is also cov- ered by an Emissions Control System Warranty which is separate from and in addition to this warranty.

  • Page 27: Emissions Control Warranty

    855-833-6483 OR EMAIL US AT SUPPORT@MONSTERMOTO.COM! by the Environmental Protection Agency, Monster Moto makes no other warranty of any kind, express or implied. All implied warranties of merchantability and fitness for a particular purpose which exceed the obligations and time limits stated in this warranty are disclaimed and excluded from this warranty.

  • Page 28: Specifications

    PROBLEMS? DO NOT RETURN TO STORE! CALL US AT 80cc SPECIFICATIONS RECOMMENDATIONS Recommended Age 16 + Recommended Max Weight 150lb Recommended Fuel Type Unleaded 87 Octane Gasoline Recommended Engine Oil Type SAE 10W-30 SPECIFICATIONS Engine Displacement 79.8 cc Strokes per Cycle Four Stroke Cylinder Head Configuration Overhead Valve (OHV)
  • Page 29 855-833-6483 OR EMAIL US AT SUPPORT@MONSTERMOTO.COM! 105cc SPECIFICATIONS RECOMMENDATIONS Recommended Age 16 + Recommended Max Weight 185lb Recommended Fuel Type Unleaded 87 Octane Gasoline Recommended Engine Oil Type SAE 10W-30 SPECIFICATIONS Engine Displacement 105 cc Strokes per Cycle Four Stroke Cylinder Head Configuration Overhead Valve (OHV) Transmission...
  • Page 30 PROBLEMS? DO NOT RETURN TO STORE! CALL US AT...

  • Page 31: Registration

    Please help us serve you better by registering your new mini bike. You may register your product by calling us at 855-833-6483, by emailing us at support@monstermoto.com, or by mailing the registration form below to us at 620 Monster Moto Trail, Ruston, LA 71270. PERSONAL INFORMATION Name __________________________________________ Age ________________...
  • Page 32 PROBLEMS? DO NOT RETURN TO STORE! CALL US AT...
  • Page 33 Thanks for choosing Monster Moto!
  • Page 34 PROBLEMS? DO NOT RETURN TO STORE! CALL US AT...
  • Page 35 PROBLEMS? DO NOT RETURN TO STORE! CALL US AT...
  • Page 36 IF YOU HAVE PROBLEMS, DO NOT RETURN TO STORE! CONTACT MONSTER MOTO AT 855-833-6483 SUPPORT@MONSTERMOTO.COM! Monster Moto will handle all service, warranty, and return arrangements. Monster Moto 620 Monster Moto Trail Ruston, LA 71270 855-833-6483 support@monstermoto.com www.monstermoto.com...
