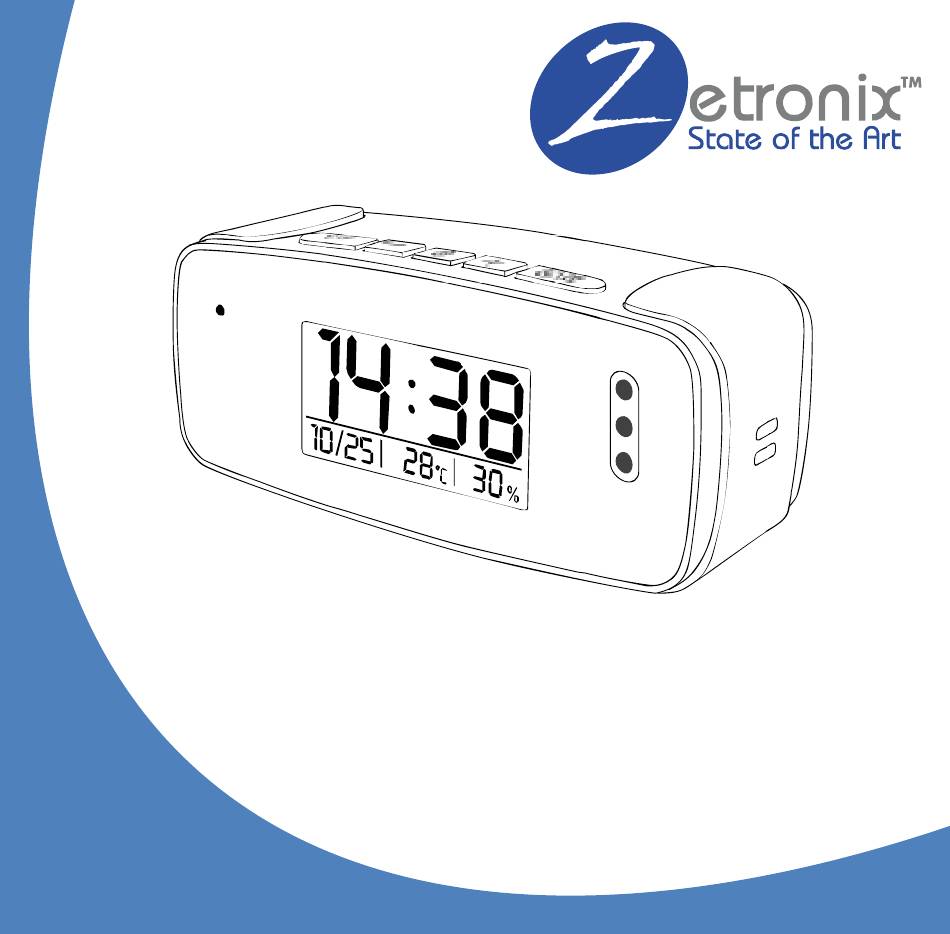

- Page 1 USER MANUAL...
- Page 2 IN THE BOX ❶ ❷ ❸ ❺ ❻ ❹ ❶ Camera Unit ❹ Cleaning cloth ❷ Micro SD Card Reader ❺ AC power adapter/charger ❸ USB Cable ❻ This User Manual...
- Page 3 DIAGRAM ③ ④ ① ② ① Hidden camera USB/Charge Port ② Clock display ③ Clock controls ④ Night vision IR Emitters...
- Page 4 ④ ⑤⑥⑦⑧⑨⑩ ④ USB/Charge Port ⑤ MicroSD Card Slot ⑥ Camera function ON/OFF Button ⑦ Camera ON/OFF indicator light ⑧ Wi-Fi Indicator light ⑨ Reset Switch ⑩ Charge Indicator Light...
- Page 5 QUICK SETUP GUIDE Download Free App TinyCam from App Store or Google Play. Scan this QR code with your phone to download the TinyCam app.
- Page 6 Power Up Take off the back cover and pull out the battery insulator, Press and hold ON/OFF switch for 2 seconds, wait for the power indicator light to turn on and Wi-Fi indicator to turn green. Connect to Camera’s Wi-Fi Open your smartphone setting, search and connect to the Wi-Fi wireless signal with the name starting with "HCAM-“...
- Page 7 Add the Camera in the App Enter the app and hit the search icon to search for the camera device. On the next screen it should list at least one device. Hit the “Add” text to add it.
- Page 8 You will be asked to change password, the default or “Old Password” is 888888. Choose and confirm your new password. Setup Remote Access From the main screen hit the setting icon on the listed camera, and then choose WiFi Config on the next menu.
- Page 9 Click on SSID to pick your Local WiFi from the list then enter you WiFi password. If you don’t know this information, please check with your internet service provider. Open your smartphone setting again, search and re- connect to your local Wi-Fi wireless. Wait for the WiFi Symbol to turn blue again: Restart the app and you should now have remote access and video stream setup.
- Page 10 GETTING STARTED APP INTRODUCTION Recorded Media Stored in Phone Search new Camera Add network camera Play live feed Camera Settings Refresh Internet Weather Alert Messages Recorded Media Stored in Micro SD...
-
Page 11: Getting Started
GETTING STARTED Video Recording Resolution Alerts notification Full Screen 2 Way Talk Take Pictures Listen Record Videos... - Page 12 GETTING STARTED ① Reset Password ② Share camera with others by QR code. ③ Wi-Fi connection ① configurations. ② ④ Alert Motion activation sensitivity settings. ③ ④ ⑤ Micro SD Card Record Configurations. ⑤ ⑥ Change password: Set camera ⑥ new password ⑦...
- Page 13 GETTING STARTED LOCAL RECORDING SETUP Local recording allows for recording media to a MicroSD card installed in the zClock-4000W. First, please install a MicroSD card in the card slot ⑤ on the back of the clock. Go to settings from the menu camera, and then select...
- Page 14 GETTING STARTED Checkmark the Full time recording to continually record video to the memory card. You can also set the video file segment length under Recording length. To record on motion activation only, checkmark Alarm recording instead. Anytime motion is detected you will receive an alert on your phone, a snapshot will be taken and video will record for the specified Recording...
- Page 15 GETTING STARTED CLOCK FUNCTION Press to change temperature display in between Fahrenheit and Celsius, Press and hold to shut off display. Increase/decrease number values Time and Alarm setup Press to Snooze, Press and hold to turn alarm on/off.
-
Page 16: Specifications
Specifications: GETTING STARTED Resolution 1 Mega CMOS Video pixel in phone Max 1920*1080 Video pixel in card 1080*720 Frame Rate 25FPS Compressed format H.264 Viewing angle 120 Degree Type of memory card TF card>=Class 4/10 and HC marked Maximum capacity of memory card 128GB PC operation system Windows 7, 8 / Mac OS X... - Page 17 GETTING STARTED TROUBLESHOOTING Most issues can be solved by resetting the device and the Wi-Fi: 1. Unplug camera from the AC charger, and disconnect the battery for 1 minute, then plug it back in. Turn on camera and wait 1 minute, press and hold the reset switch ⑨...
- Page 18 GETTING STARTED The live video screen shows up black and a searching circle spins in center but nothing ever displays. If camera’s Wi-Fi speed is slow, please wait 10-30 seconds for live video appear; Select top right 480p resolution to check for lower stream rate. Live video jitters or unclear.
- Page 19 GETTING STARTED...
